ONKA 6mm2 hybrid screw/spring connection terminal block DIN rail terminal block 2-wire gray, 1040012

Hybrid Rail Interface / DIN Rail Terminal 2-Wire Grey, ONKA, Made in Turkey

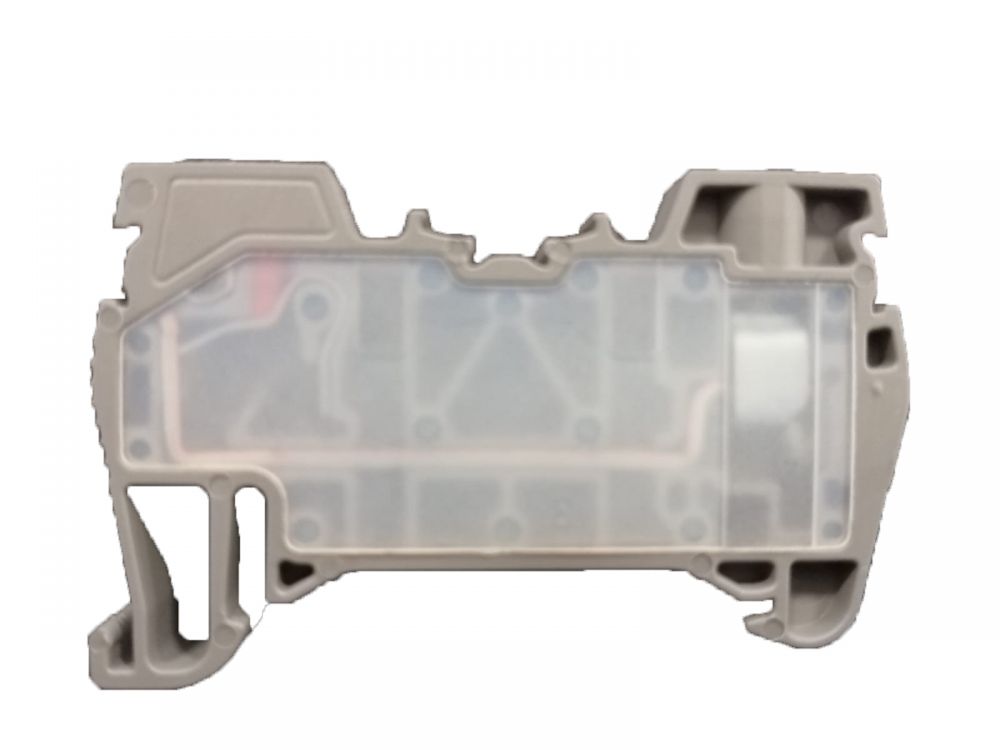

ONKA compact rail terminals offer excellent possibilities for connecting wires of any different cross-section. The transparent body makes it easy to check the correct placement of wires. Original ONKA quick connectors provide convenience in installation and 100% connection reliability.

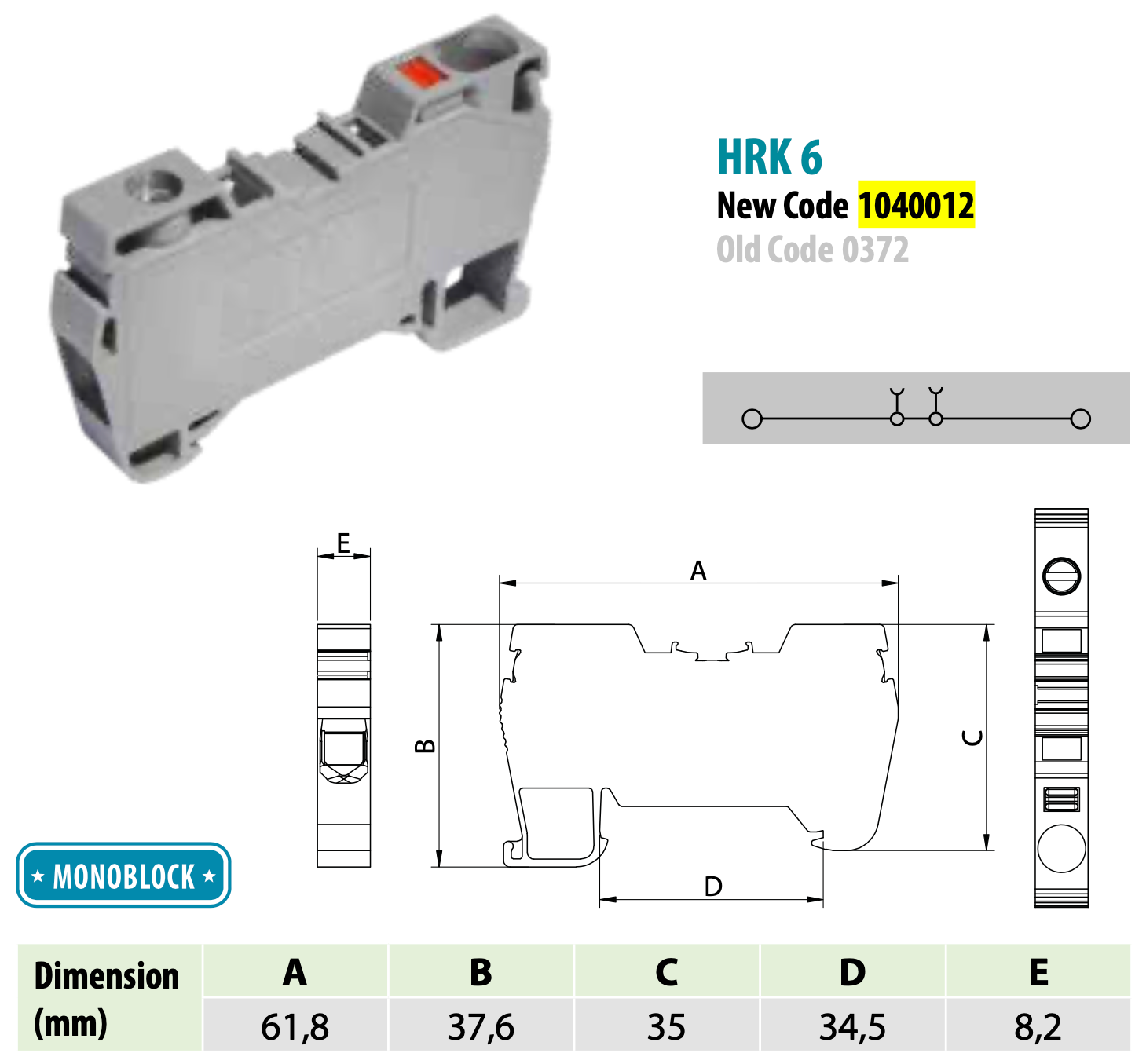

Technical parameters

Connectable single wire cross-section up to: 6mm2
Colour: grey
Main body insulation material: polyamide (PA6.6)
Contact/bridge material: CK45 steel/stainless steel/copper
Torque: 0.4 Nm
Connection position: top / side
Cable strip length: 10 mm
Electrical connection type: screw clamp / spring clamp
Rated voltage: 750 V
Rated current: 41A
Operating temperature range from: -40°C
Operating temperature range to: 140°C
Mounting method: DIN 35 mm mounting rail
Standard: EN-60947-7-1
