ONKA 6mm2 screw terminal block with test terminal on DIN-ladder 2-wire gray, 1010213

Online payment by card - after completing your order, you will be redirected to the payment gateway, payment confirmation will be sent to you by email

Arrival - payment according to the payment order, you pay the driver of the transport company

By transfer - a prepayment invoice will be sent to your email address no later than the next business day, with the bank account number that you enter when making the payment.

By invoice - this payment option is used by partners who have a framework agreement with our company.

If you want to use the last 2 methods, call our manager and he will give you instructions on how to receive an invoice with or without VAT.

The electrical appliances we offer meet high quality standards, have a 24-month warranty, and meet all EU requirements.

In the case of advertising, no fees are charged for returning the goods.

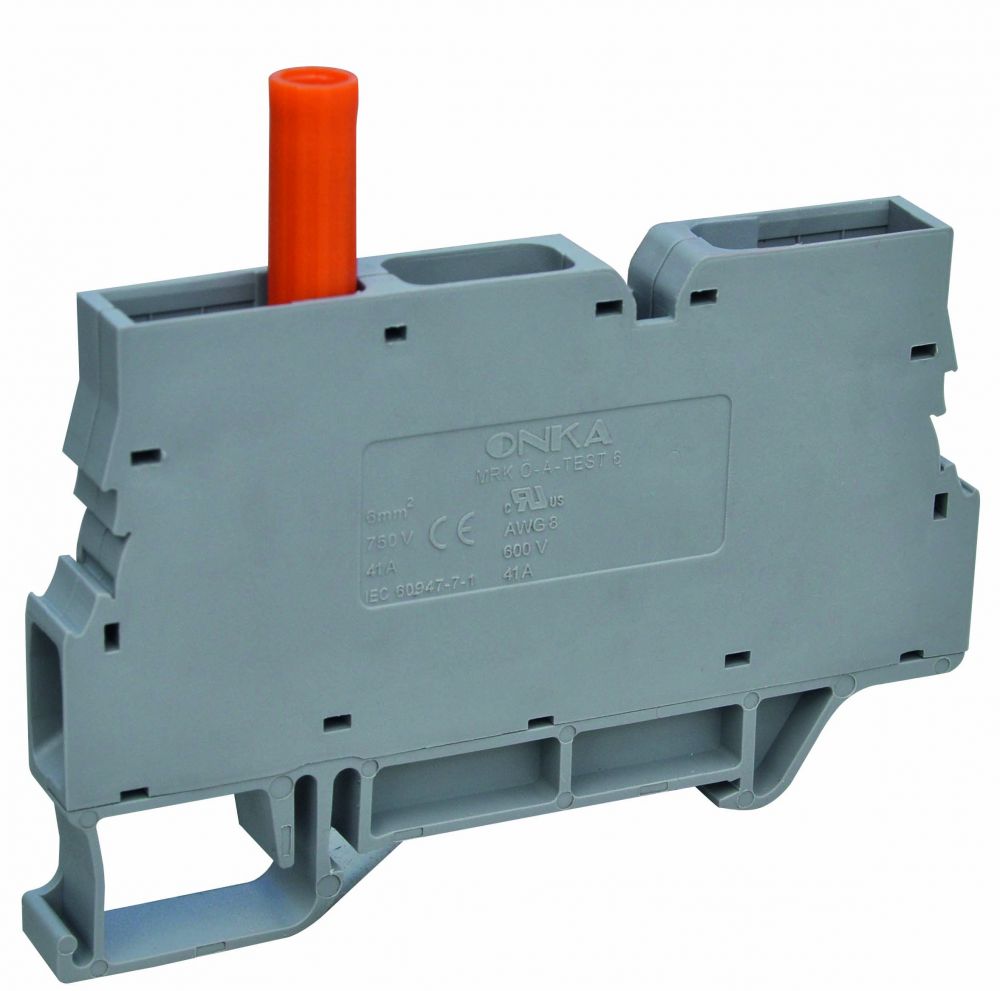

Measuring terminal block with test connection threaded connection terminal / DIN terminal 2 wires gray, ONKA, made in Turkey

ONKA compact installation rail connectors offer excellent opportunities for connecting wires of any cross-section. The transparent housing makes it easy to check the correct placement of the wires. Original ONKA quick connectors provide convenience in installation and 100% connection reliability.

Technical parameters

Connectable single wire cross-section up to: 6mm2
Color: gray
Main body insulation material: polyamide (PA6.6)
Contact/bridge material: CK45 steel/copper
Torque: 0.8 Nm
Connection position: lateral / lateral
Cable strip length: 12 mm
Electrical connection type: screw terminal
Rated voltage: 750V
Rated current: 41A
Operating temperature range from: -40°C
Operating temperature range up to: 140°C
Installation method: DIN 35 mm mounting rail
Standard: EN-60947-7-1
