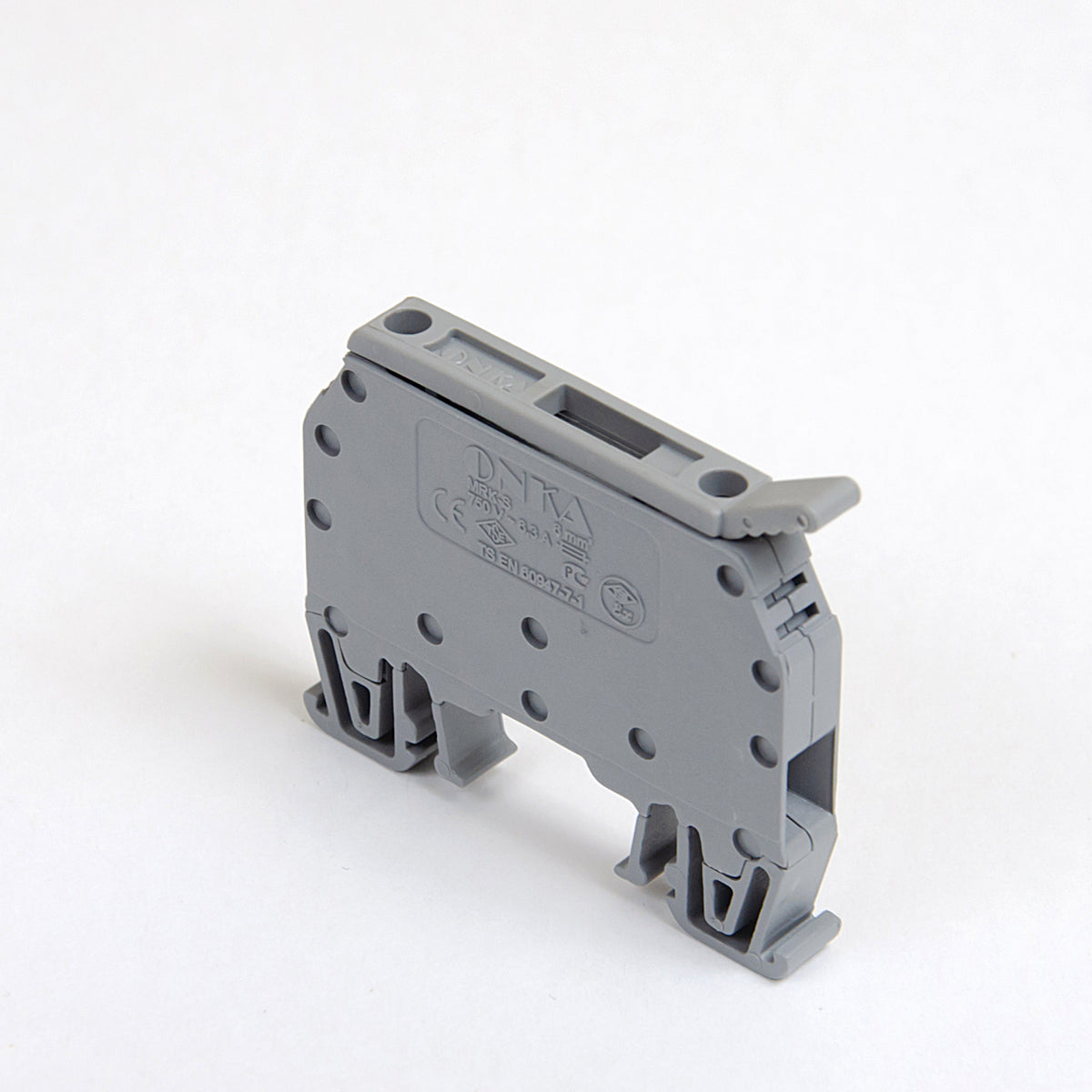

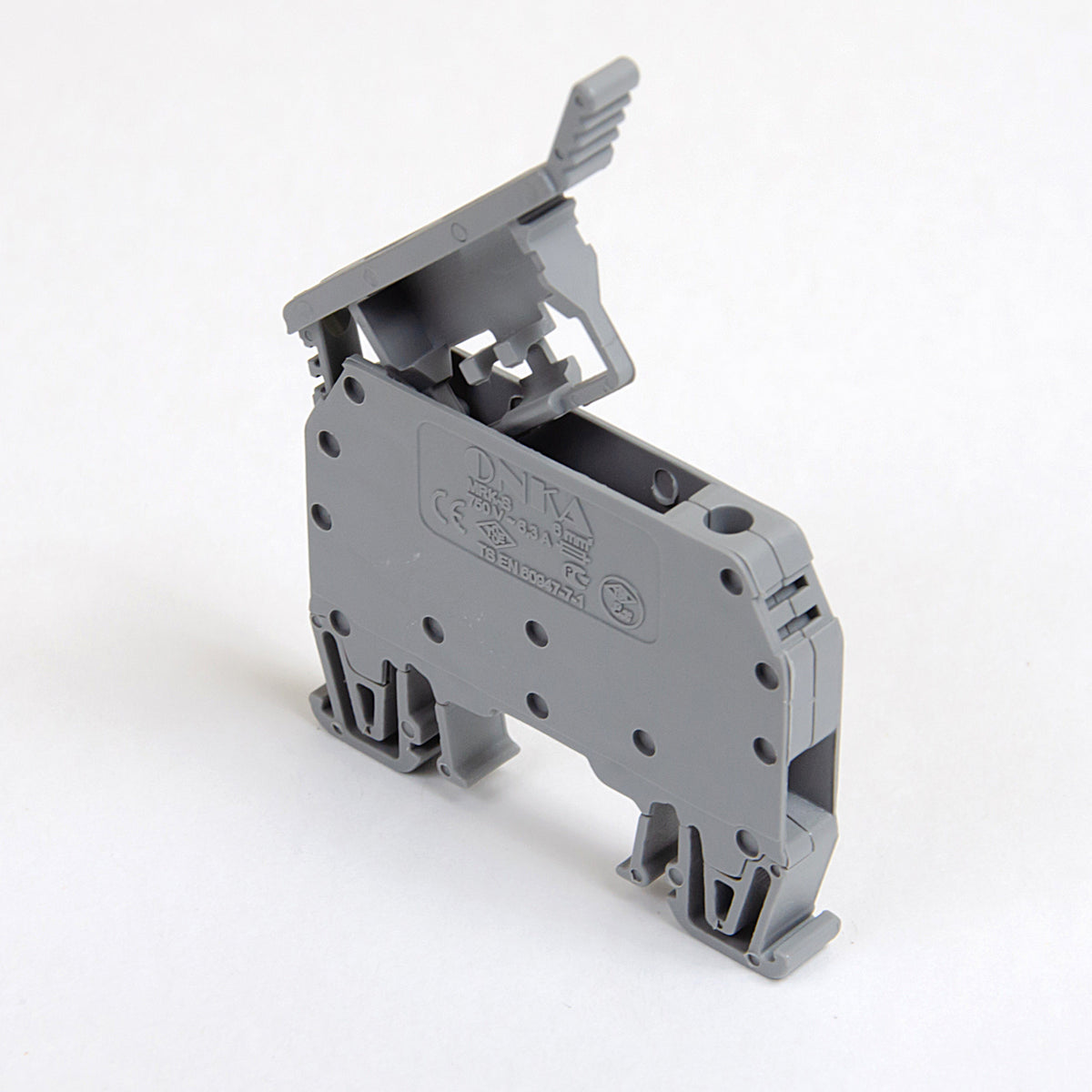

ONKA 6mm2 screw connection fuse terminal block (fuse not included) gray, 1010241

Threaded screw connection fuse terminal block (fuse not included) 2-wire, gray, ONKA, made in Turkey.

Used to protect low-current AC or DC circuits. The terminal is equipped with a 5x20 mm fuse with a current setting of up to 6.3 A. The fuse is not included and must be ordered separately.

Technical parameters

Connectable single wire cross-section up to: 6mm2
Color: gray
Main body insulation material: polyamide (PA6.6) .
Contact/bridge material: CK45 steel/copper
Torque: 0.8 Nm
Connection position: lateral / lateral
Cable strip length: 10 mm
Electrical connection type: screw terminal
Rated voltage: 750V
Rated current: 6.3A
Operating temperature range from: -40°C
Operating temperature range up to: 140°C
Installation method: DIN 35 mm mounting rail
Standard: EN-60947-7-1
