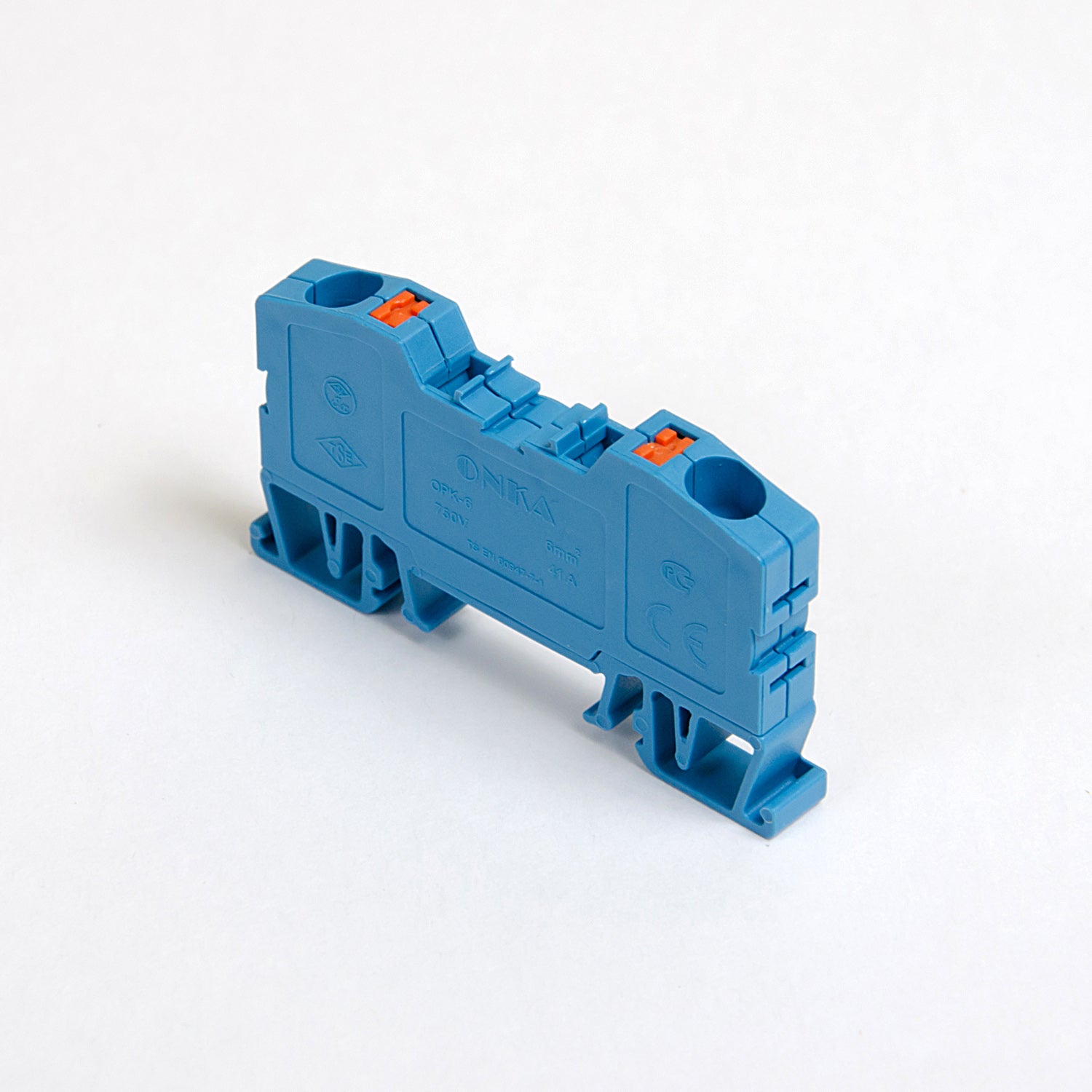

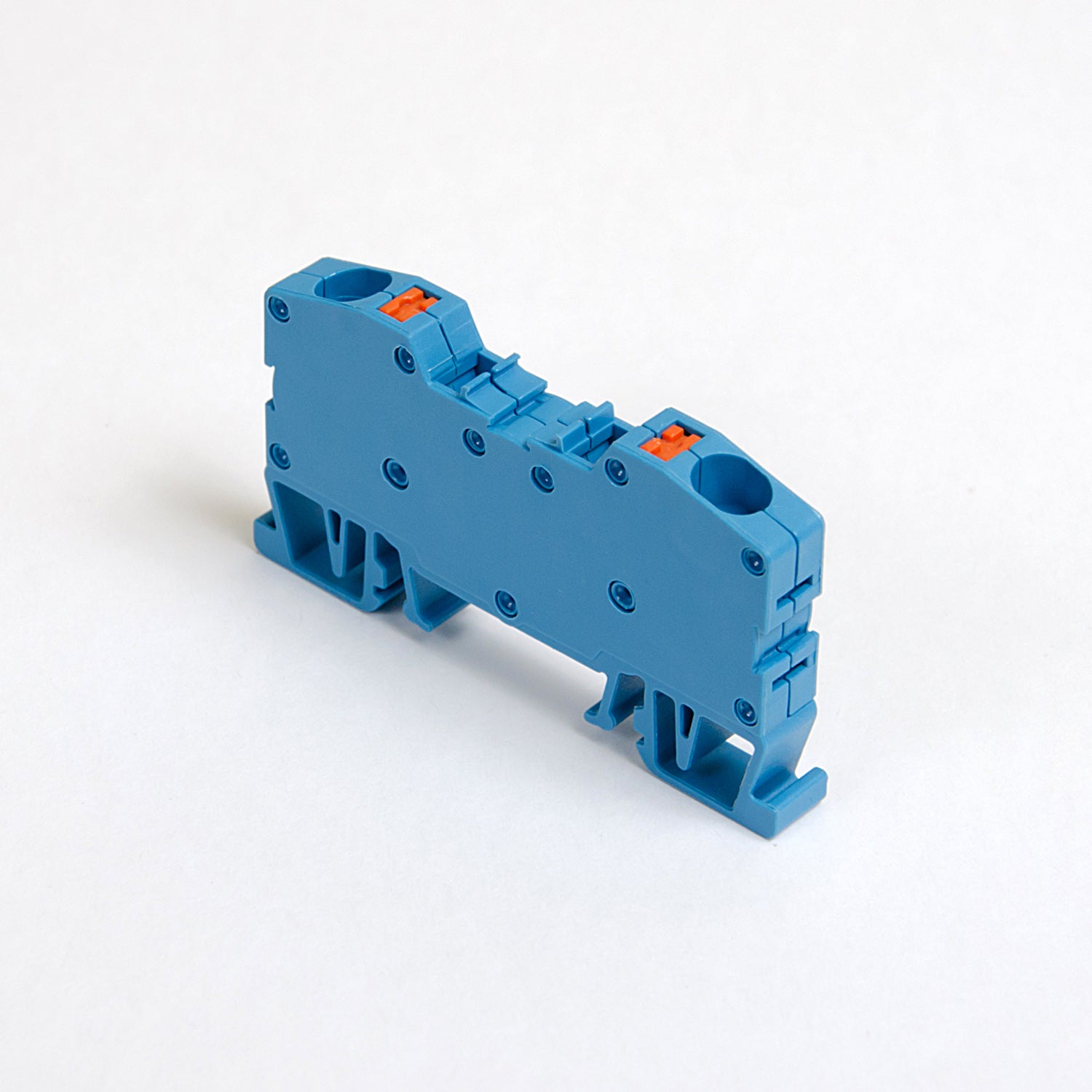

ONKA 6mm2 suspension terminal block DIN rail terminal 2-wire blue, 1020037

Spring-loaded connection terminal / DIN terminal 2-wire, retractable contact, blue, ONKA, made in Turkey.

The ONKA connector/terminal is a reliable solution for anyone looking for functional and durable elements for electrical installations.
The connection made of high-quality materials ensures long-term use and resistance to mechanical damage.

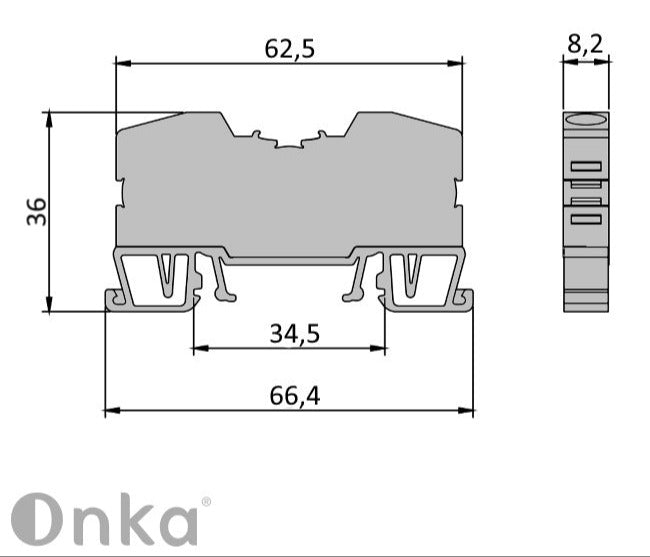

Technical parameters

Connectable single wire cross-section up to: 6mm2
Color: blue
Main body insulation material: polyamide (PA6.6)
Contact/bridge material: stainless steel/copper
Connection position: top/top
Cable strip length: 12mm
Electrical connection type: spring clip / retractable contact
Rated voltage: 750 V
Rated current: 41A
Operating temperature range from: -40°C
Operating temperature range up to: 140°C
Installation method: DIN 35 mm mounting rail
Standard: EN-60947-7-1
