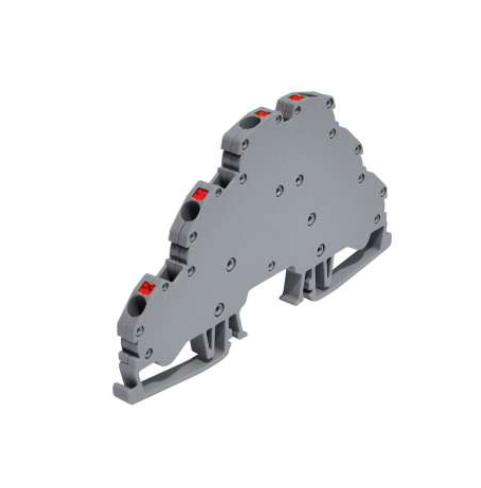

OPK 3 in-line clamp three-pair 2.5 mm²

Three-level screw DIN rail clamp gray, ONKA

ONKA multiple rail clamps offer a space-saving solution for reliable electrical and mechanical connections in compact distribution boards. The three-level design allows connecting several independent circuits above each other while maintaining a minimal DIN rail width of 35 mm. ONKA original clamps provide great installation convenience, secure wire fastening, and long-term connection stability even under harsh industrial conditions.

Technical parameters

• Construction.

• Color: gray

• Nominal cross-section (IEC): 2.5 mm²

• Rated current (IEC): 24 A

• Rated voltage (IEC): 750 V

• Insulating housing material: Polyamide (PA 6.6)

• Bridge material: copper

• Spring material: stainless steel

• Actuator material: polyamide (PA 6.6), orange

• Operating temperature range: -40 °C to +140 °C

• Wire stripping length: 9 mm

• Mounting method: DIN 35 mm mounting rail

• Standard: EN-60947-7-1

• Certification: TSE, CE

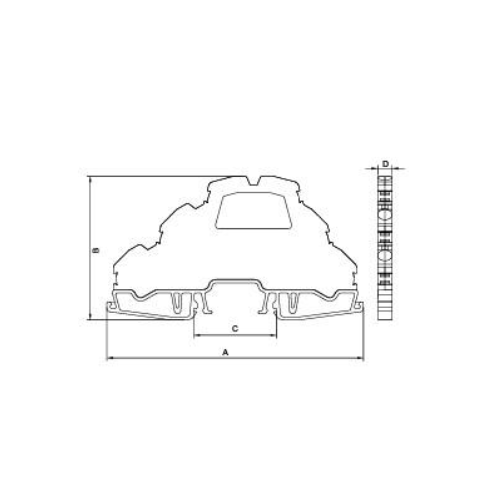

Dimensions

• Dimension A: 106.0 mm

• Dimension B: 60.0 mm

• Dimension C: 34.5 mm

• Dimension D (clamp width): 5.9 mm
