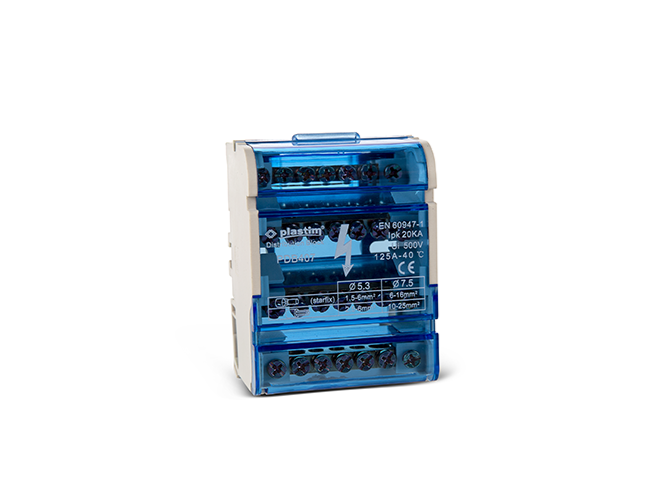

PDB407 phase separation terminal block

Terminal block for phase separation on DIN rail, Plastim, made in Turkey.

The Plastim four-pole distribution block is used for safe, structured, and space-saving branching of three phases and a neutral conductor (3P+N) in electrical distribution boards. The set includes four separate, galvanically isolated brass busbars (4 poles), each with 7 connection points of two different diameters, allowing reliable fastening of main power and outgoing circuits. The transparent hinged protective cover allows immediate visual inspection of the connection status while providing safe protection against accidental contact. The block is designed for quick mounting on a standard DIN 35 mm carrier rail or for fastening with screws on a mounting plate.

Technical parameters

• Product type: The product is manufactured so that it does not contain only one,but also one, two or more products per.

• Number of poles: 4 (ideal for three-phase systems with neutral conductor).

• Rated current: 125 A

• Number of terminals per pole: 7

• Total number of terminals: 28 (4×7)

• Terminal configuration per pole: 5× ø 5.3 mm + 2× ø 7.5 mm

• Connection type: screw connection

• Mounting method: DIN 35 mm mounting rail / mounting plate

Dimensions

• Length: 65.0 mm

• Width: 89.5 mm

• Height: 50.0 mm
