Metal shaft main switch - lockable, maintenance, package power switch PTE, OPAŞ

Product description

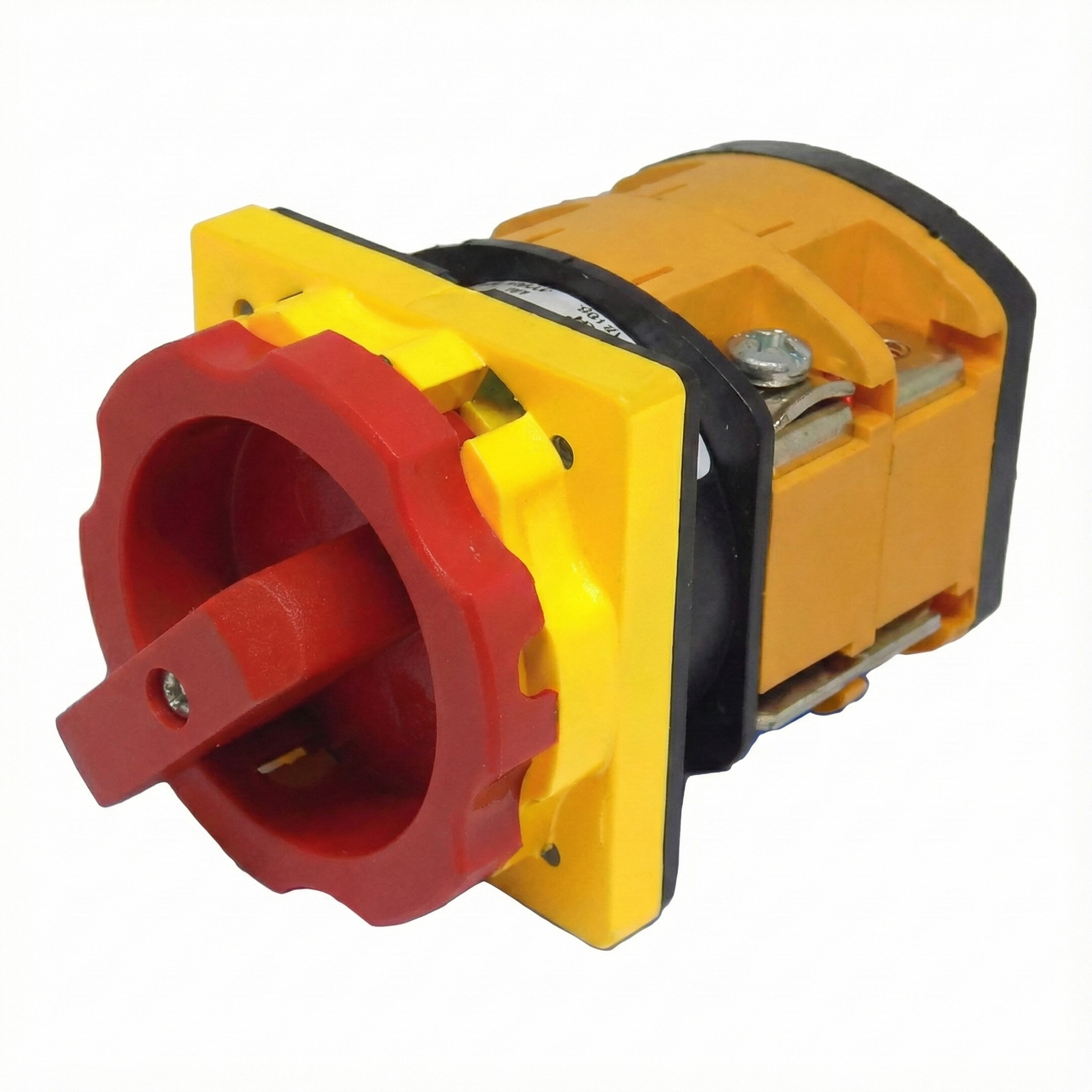

OPAŞ (Turkey) three-phase rotary switch PTE is designed for switching and protecting circuits up to 80 A and controlling electric motors, including reversing.

1-0-2 the wiring diagram allows its use as:

• standard load switch,

• as a switch for changing the motor rotation direction.

The main feature is mechanical locking in the "Off" position, which prevents opening the distribution board door or removing the cover when the circuit is energized. This safety element ensures compliance with technical and safety standards.

Product advantages

• Complete door locking in the "Off" position - ensures safety during maintenance

• Clear locking in three positions - prevents accidental switch-off

• Compact size - easy to install in a standard cutout

• Reliability - suitable for industrial enterprises and three-phase circuits

Technical parameters

Parameter	Value / option
Switch type	Rotary, package power switch
Number of poles	3-4 poles
Rated current	25-80 A
Wiring diagram	1-0-2

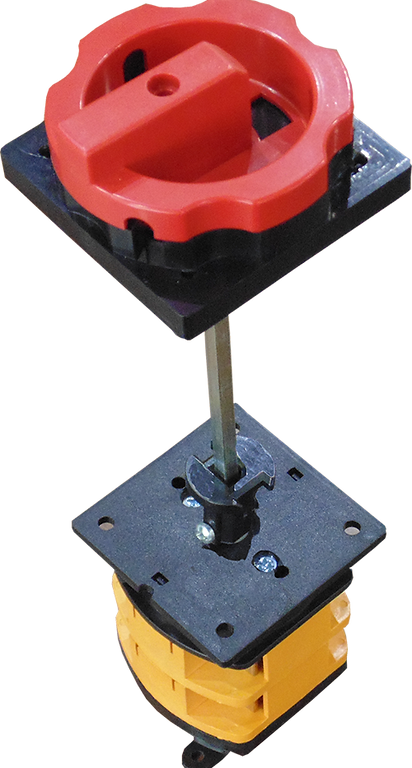

Lockable	Yes, metal shaft/manual door operator
Mechanical locking	"Off" position
Shaft material	Metal
Type of installation	On the distribution board door or panel

Usage

This switch is ideal for:

• Distribution boards and control panels

• Tools

• Pumps, fans, conveyors

• Compressors and elevator equipment

• All three-phase circuits requiring reliable switching and compliance with electrical safety standards.
