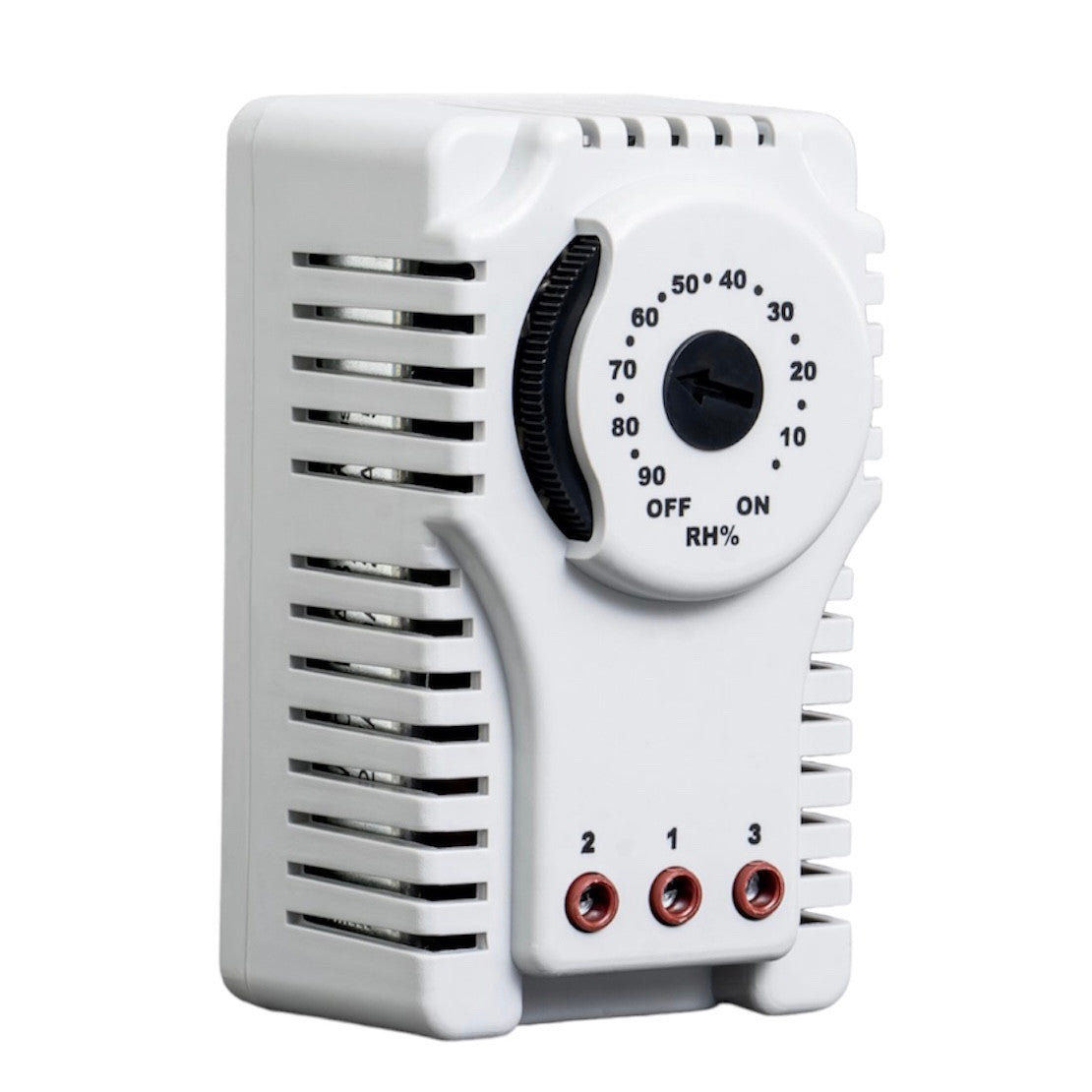

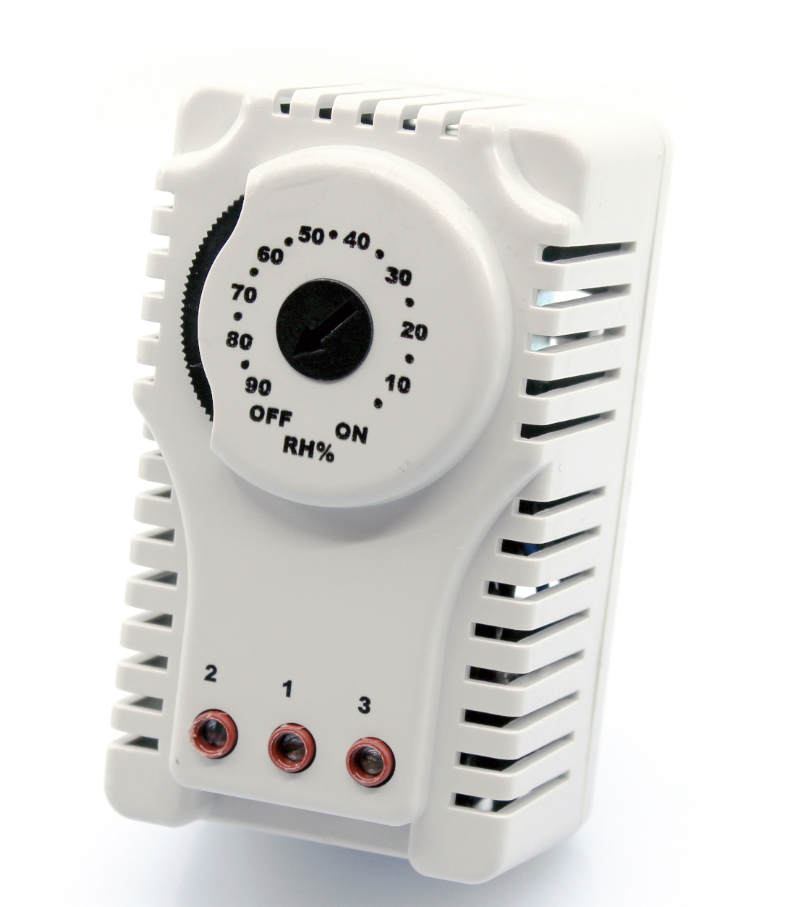

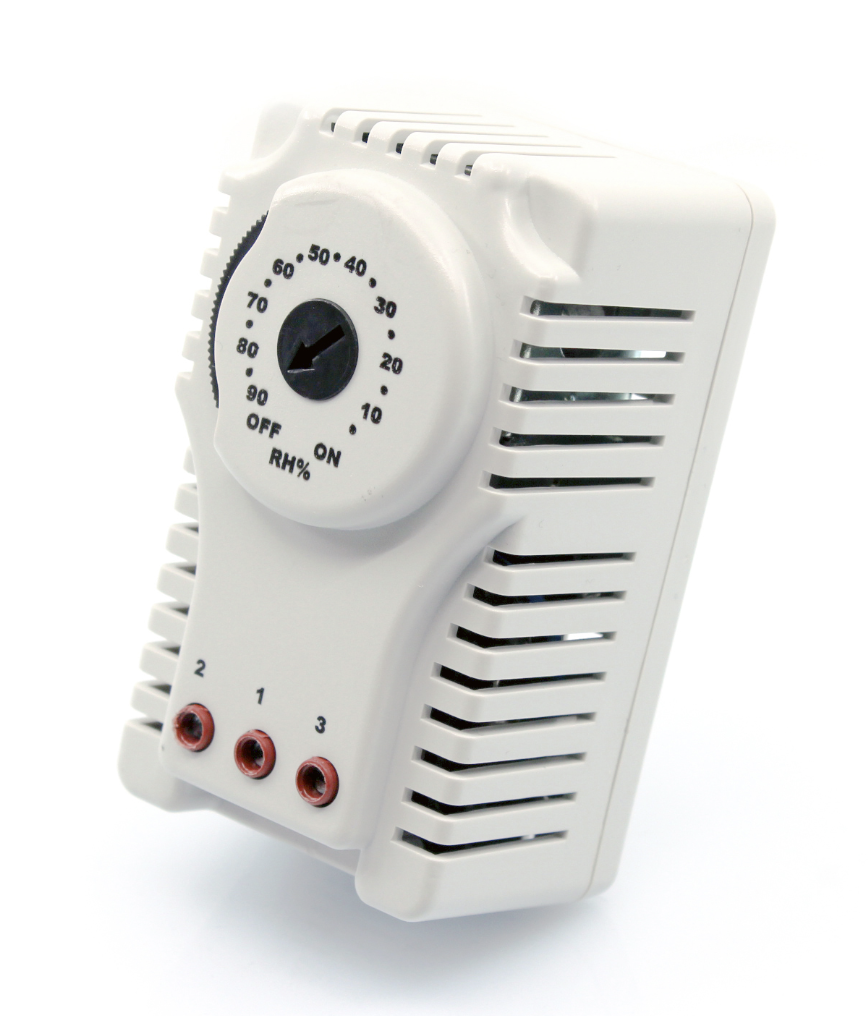

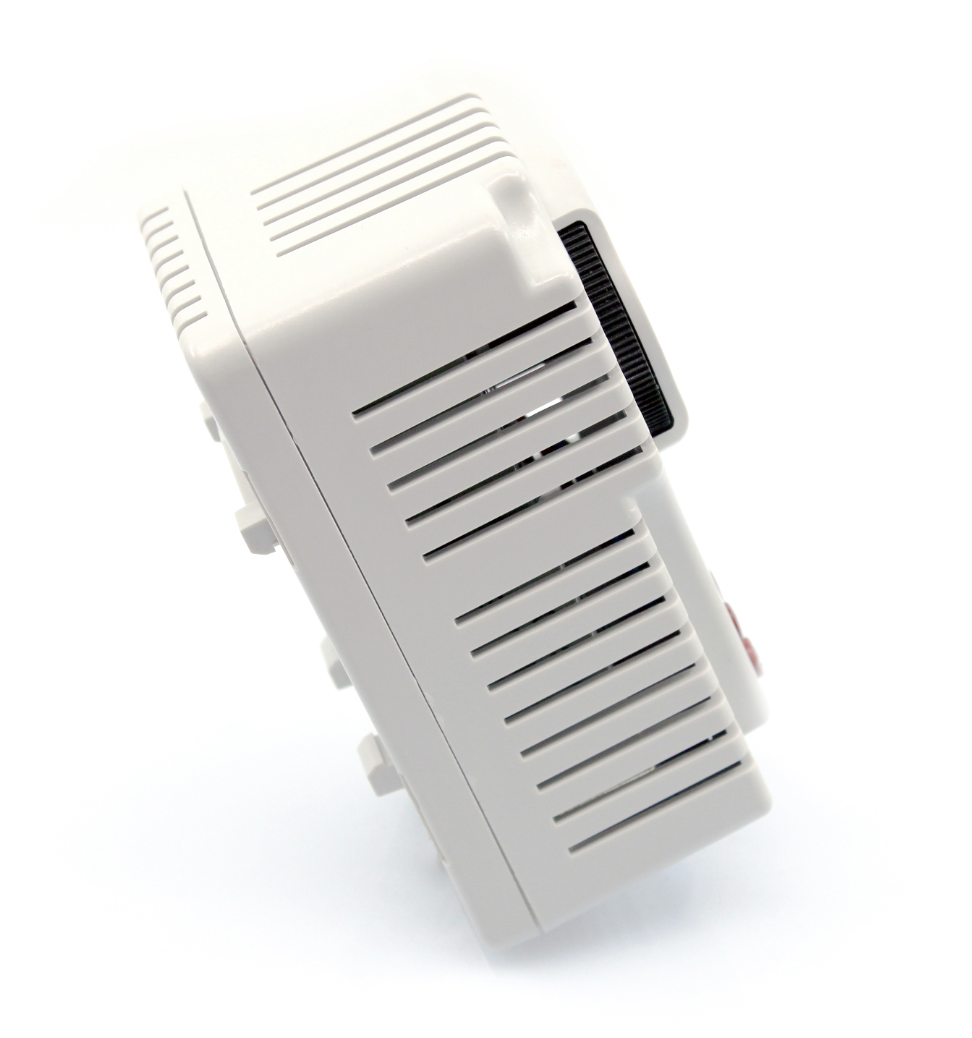

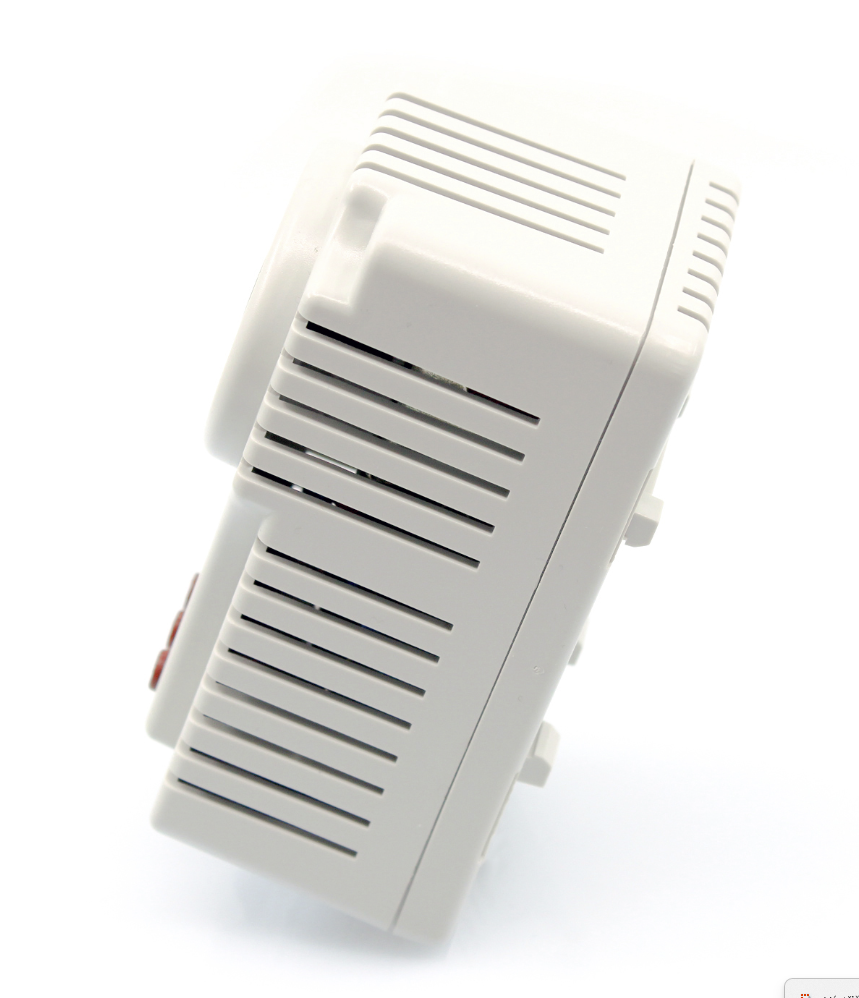

PLASTIM PHG02 hygrostat 110-250VAC (10A-5A current load), 10 - 90%RH, screw terminals IP20
This hygrostat (mechanical relay for humidity control or hygrometer or hygrostat) can be used for both processes - to reduce humidity and to increase humidity. For this purpose, the device is equipped with a switching contact, which allows this hygrostat to be used for any humidity control task.
This humidity level control relay is designed for installation in electrical or automation panels, ATMs, payment terminals, gaming machines or other enclosures to regulate humidity levels and turn on corresponding heating or drying equipment.
Manufacturer code |
Unit |
PHG02 |
Voltage |
V AC |
110-250 |
Adjustment range |
%RH |
10-90 |
Color potentiometer |
- |
Black |
Current |
A |
(10-5) |
Hysteria |
- |
%5 - %10 |
Sensor type |
- |
Polyamide tape |
Electrical connection |
- |
3-pole terminal |
Wire size |
- |
0.75 mm² - 4.0 mm² |
Operating temperature |
°C |
+10/+60 |
Storage temperature |
°C |
+10/+60 |
Degree of protection |
- |
IP20 |
Housing color |
- |
RAL7035 |
Installation |
- |
DIN rail 35mm |
Dimensions |
mm |
94x54x56 |
Weight |
g |
180 |
