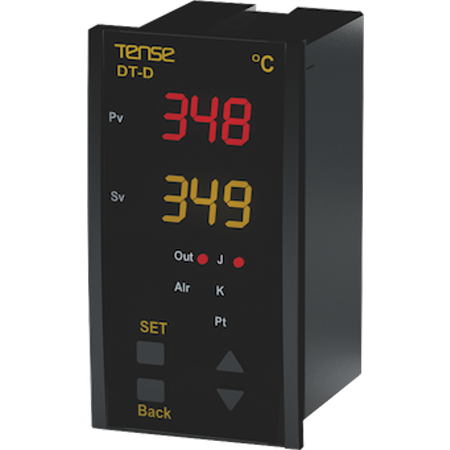

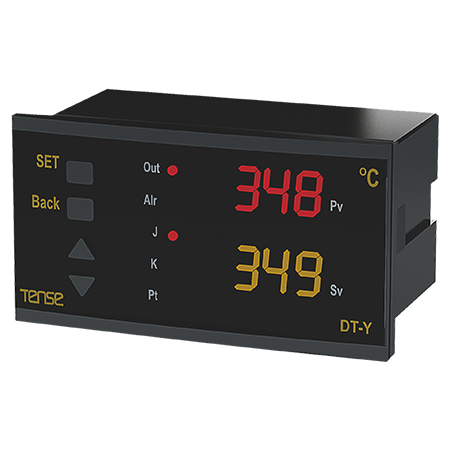

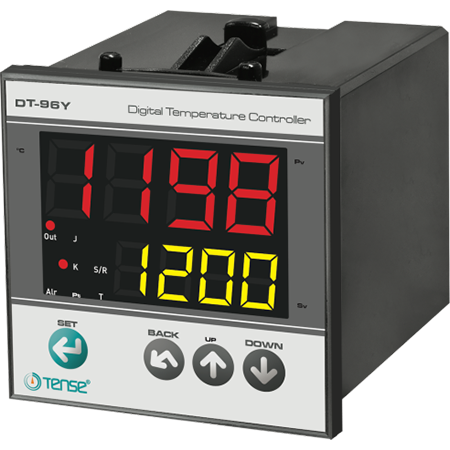

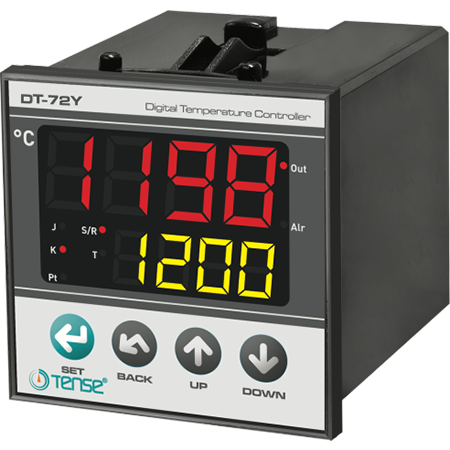

Panel-mounted PID temperature controller up to 1750 °C

PID temperature controller for panel mounting, measuring range -100°C ... +1750°C, resolution / step 0.1ºC (made in Turkey, TENSE)

Control and monitoring of thermal processes in heating, air conditioning and ventilation systems, building automation, and industrial equipment.

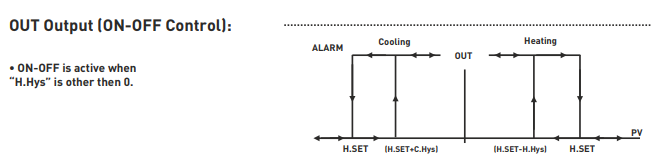

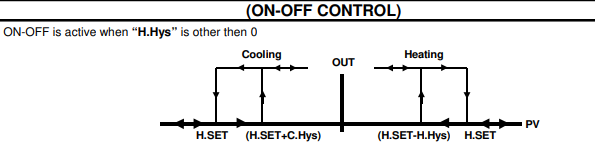

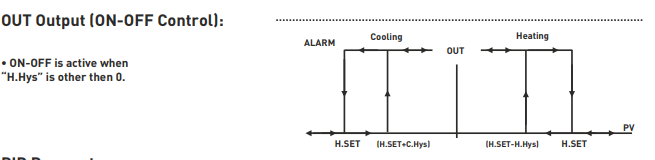

The temperature controller is implemented with on/off or PID control. The controller provides self-optimization to prevent the process from overshooting.

• Automatic tuning of PID parameters

• Sensor type: T/C (J,K,T,S,R), Pt100
• Selectable control type: P, PI, PD, PID or ON-OFF.

• Automatic "skip" removal in PID mode.

• Anti-windup

• OUT switch-on delay in cooling mode

• Password protection

• EEPROM memory for storing settings

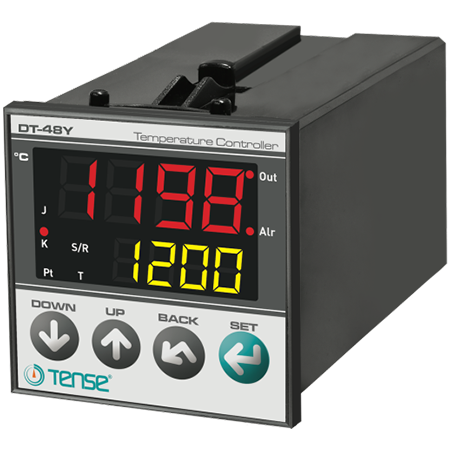

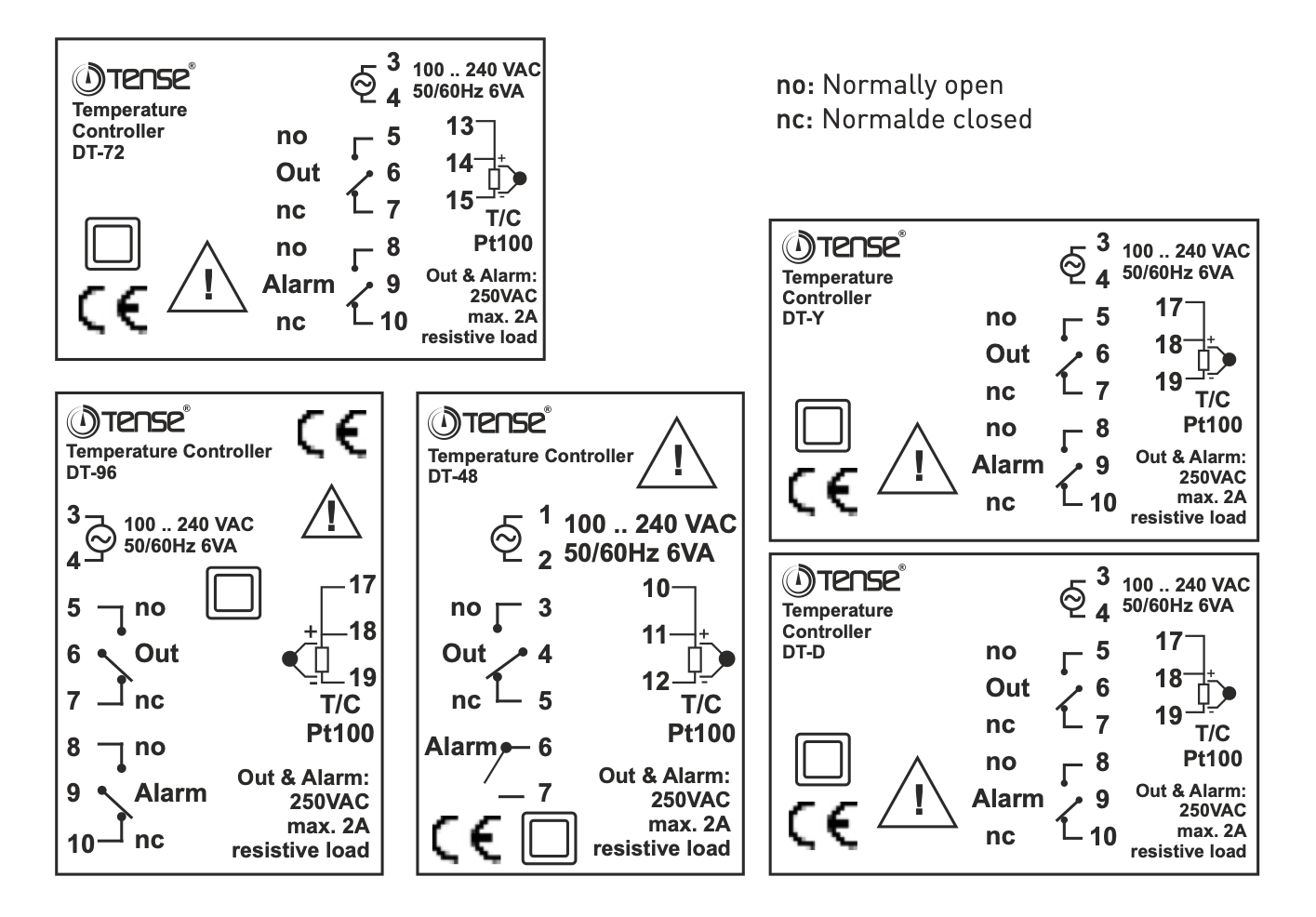

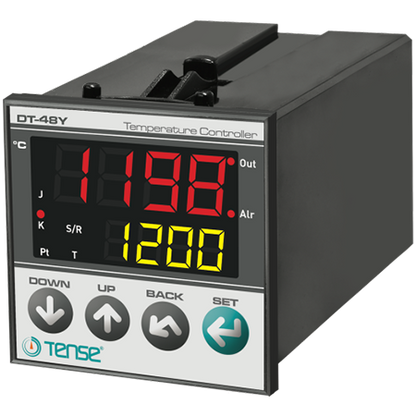

• Relay OUT and ALARM (NO+NC) outputs 250 VAC, 2A (ALARM ON only for DT-48Y)

The measuring range depends on the sensor and can be set using the buttons on the temperature controller.

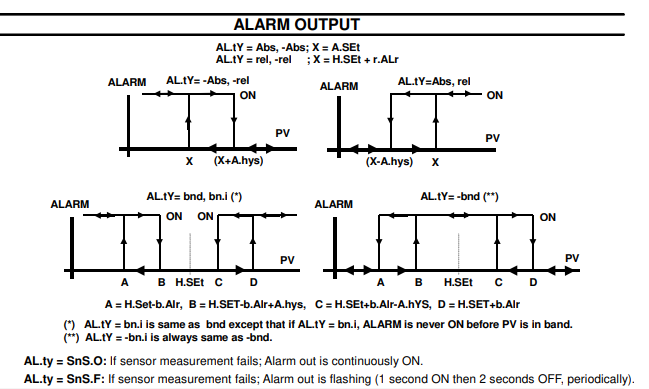

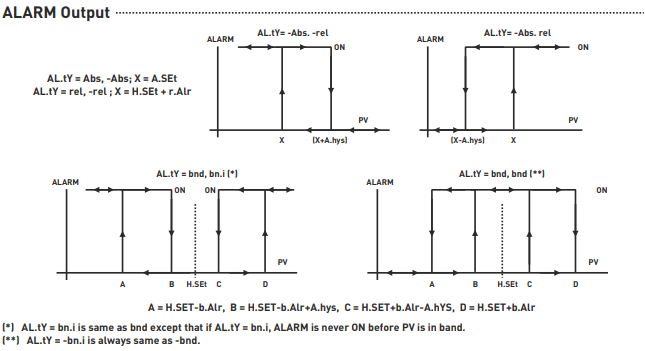

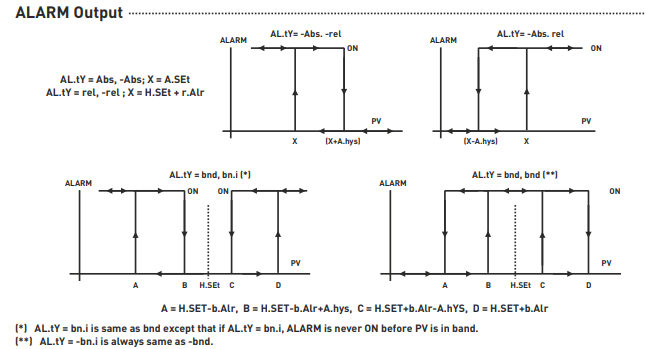

The temperature controller display is a high contrast display that can only be read accurately under degraded conditions. In addition to the control output, the temperature controller has an additional alarm relay that activates a potential-free contact if the value is exceeded or not reached.

Don't forget to order our temperature sensors - J-type Fe-Const thermocouples (6/8 metric) with a temperature measurement range of -100 °C - +600 °C. Available with 1 m, 1.5 m, 2 m, 2.5 m, 3 m, 4 m and 5 m cable lengths.
