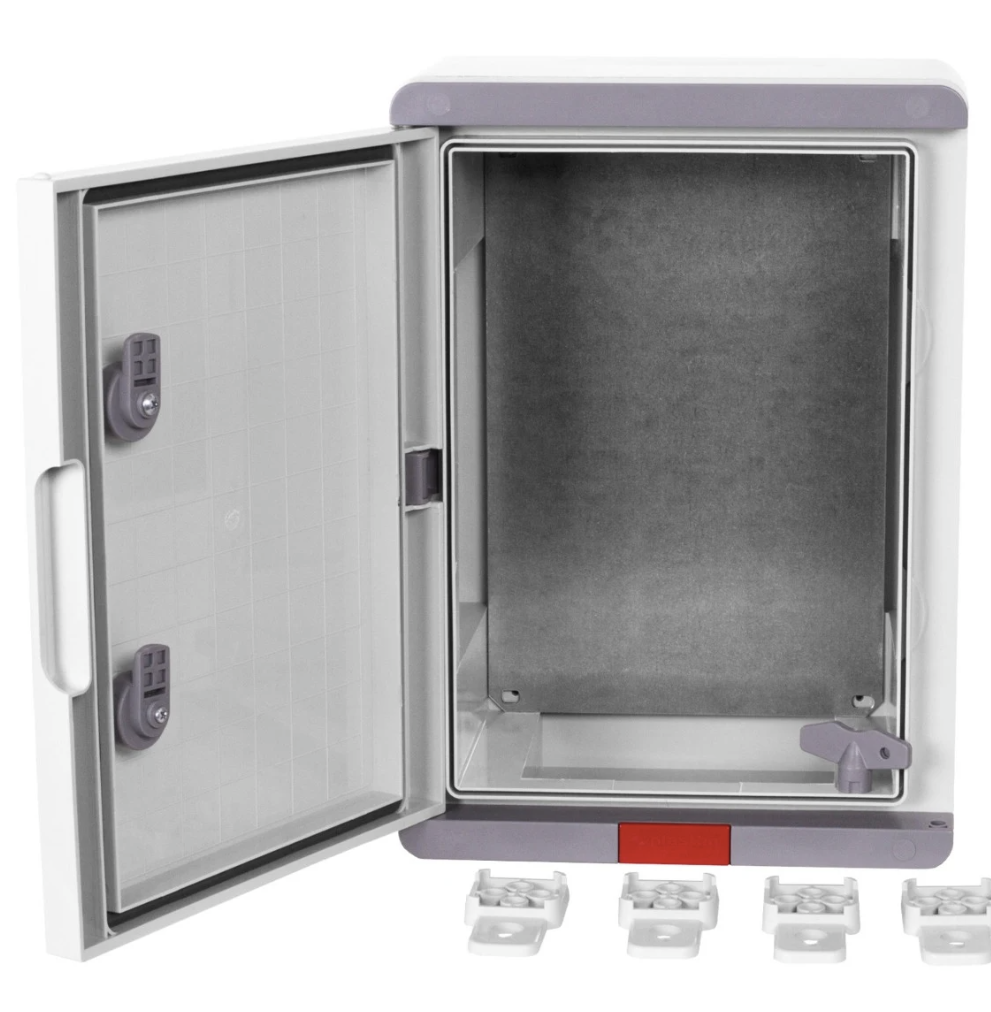

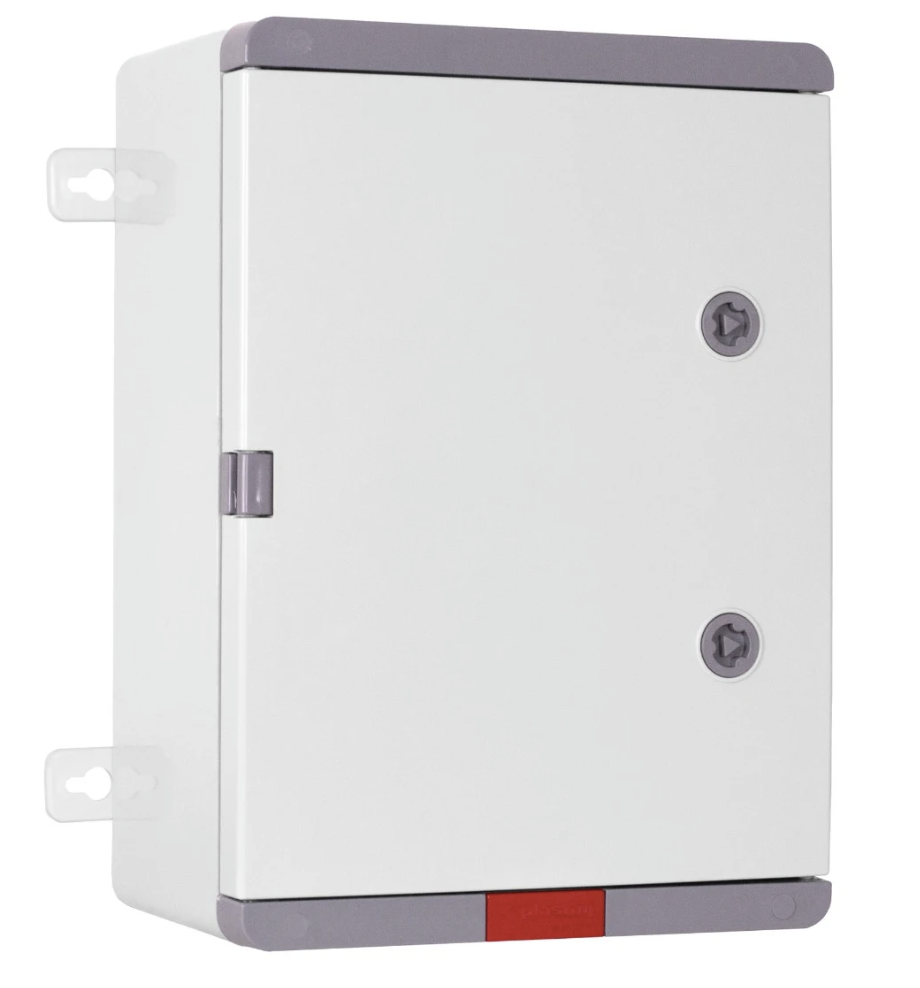

Plastic distribution cabinet with gray door, Design Pro series, PD253515, IP67

The plastic housing with IP67 protection has several important advantages, especially for use in harsh conditions:

High protection against moisture and dust:

IP67 protection means that the housing is completely protected from dust and can withstand temporary immersion in water up to 1 meter deep for 30 minutes, making it ideal for installation in damp or dusty places - such as outdoors, industrial areas, or near bodies of water.

Corrosion resistance:

Plastic is resistant to corrosion, unlike metal panels, which is especially valuable in aggressive environments - near the sea, in chemical plants, or in high-humidity enterprises.

Ease and simplicity of installation:

The plastic housing is much lighter than its metal counterpart, making transportation and installation easier, especially in hard-to-reach places.

Dielectric properties:

Plastic does not conduct electricity, which increases safety when working with electrical devices and reduces the risk of short circuits.

UV resistance:

When using special ultraviolet plastic, the enclosure retains its properties for a long time even when continuously exposed to sunlight.

Technical specifications

Resistance: to chemicals, alkalis, oils, salts, etc.

Rated voltage: up to 690 V

Maximum current: up to 800 A

Operating temperature: -35 °C + 65 °C

Material: HB ABS

Mounting plate: 1 mm galvanized steel

IP protection: IP67

IK protection: IK08

Color: RAL7035 gray

Examples of usage methods

Wet and dusty environment

Electrical protection in car washes, swimming pools, water parks, and fountains.

Installation boxes for controlling irrigation systems and pump stations.

Installations in the food industry where regular wet cleaning and disinfection occur.

Industrial installations

Equipment protection in dusty workshops, concrete mixing plants, and metallurgy companies.

Installed protective shielding in aggressive environmental spaces (e.g., chemical plants).

Marine and port infrastructure

Protection of electrical wiring on platforms, in ports, and on ships.

Use in coastal areas with high humidity and exposure to salty air.

Construction sites

Temporary electrical distribution equipment for construction machinery in harsh weather conditions.

Ground structures
