Plastic distribution board for modular devices, transparent door, IP65, Plastim
- Regular price
- €67,60
- Regular price
-
- Sale price
- €67,60
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
Pre-order product
- Description
- Payment methods
- Warranty

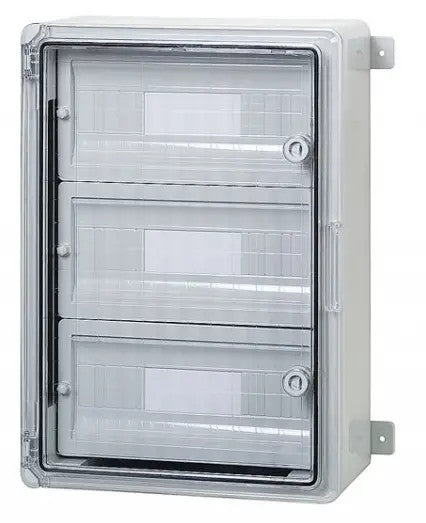

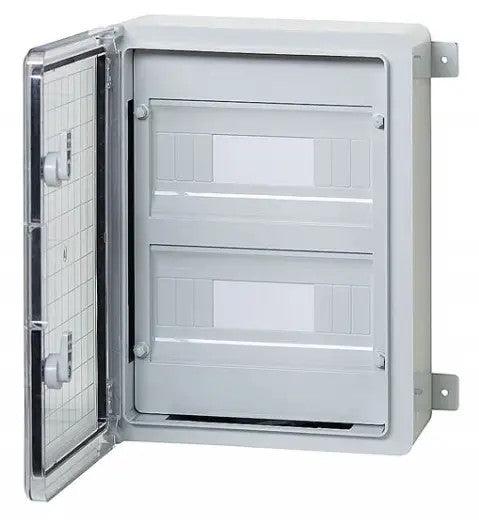

Plastic distribution board for modular devices, transparent door, frame with DIN rails, IP65, Plastim
Code |
Width (mm) |
Height (mm) |
Depth (mm) |
Modules |
Weight (kg) |
PP3112 |
250 |
350 |
150 |
18 (9×2) |
2.5 |
PP3114 |
300 |
400 |
170 |
24 (12×2) |
3.4 |
PP3116 |
350 |
500 |
190 |
45 (15×3) |
4.5 |
PP3118 |
400 |
600 |
200 |
60 (15×4) |
6.0 |
New waterproof plastic boxes produced by the Turkish company Plastim open a new chapter in the use of plastic protective boxes for automation and electrical distribution tasks.
New housing design with corner fittings and increased thickness of the door and the entire product.
Extended temperature range in which the protection retains all its enhanced properties -35/+60C
- fully corrosion-resistant lightweight massive galvanized metal mounting panel
- can be equipped with transparent doors and DIN rail reinforced metal bolt hinges;
MAIN TECHNICAL FEATURES
- material: HB ABS halogen-free + polycarbonate (door)
- Color: RAL7035 light gray
- Protection: IP65, IK08
- Rated voltage: up to 690 V
- Maximum current: up to 800 A
- Operating temperature: -35°C + 65°C
