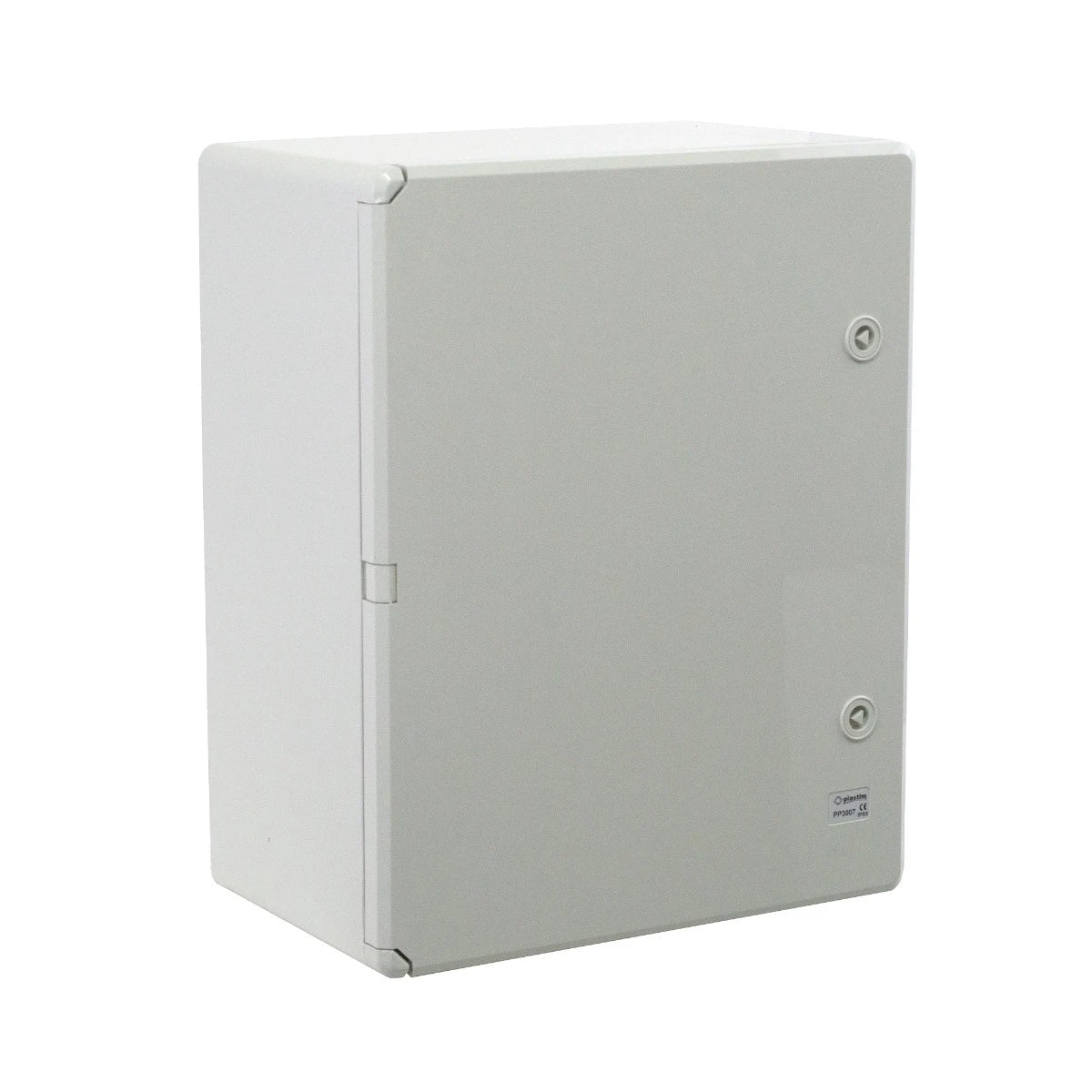

Plastic cover hall door 400x500x240mm IP65 PP3007 (P-BOX 4050-2)

Plastic distribution cabinet, gray door, sewing 400x500x240mm, IP65, PP3007 Plastim / P-BOX 4050-2

The new plastic waterproof boxes from the Turkish company Plastim open a new chapter in the use of plastic enclosures for automation and electrical distribution tasks.

• Reinforced underpants with a metal needle

• New enclosure design with corner fittings and increased thickness of the door and the entire product.

• Extended temperature range in which the protective enclosure retains all its enhanced properties -35/+60C

• Fully corrosion-resistant lightweight massive galvanized metal mounting panel
• Possible to install transparent doors and reinforced metal pin brackets on DIN rails;

MAIN TECHNICAL FEATURES

• Mounting panel: made of 1 mm thick galvanized steel
• Material.
• Width: 400 mm
• Height: 500 mm
• Depth: 240 mm
• Color: RAL7035 light gray
• Enclosure: IP65, IK08
• Rated voltage: up to 690 V
• Maximum current: up to 800 A
• Operating temperature: -35°C + 65°C
• Weight: 3.00 kg
