Vendor: MUCCO

rotating lighthouse with sound signal, ø90mm, 85-250V AC/DC

Barcode: SNT-925-B-1
€96,80
€96,80
excl. VAT: €80
Low stock: 7 left

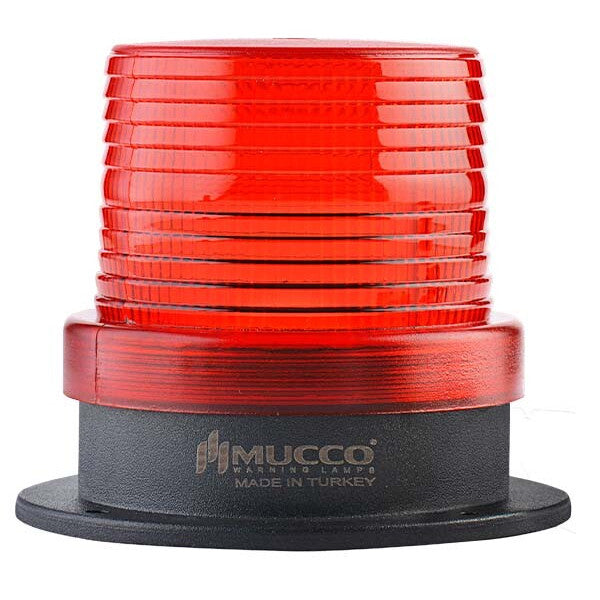

Color: Red
  • Description
  • Payment methods
  • Warranty

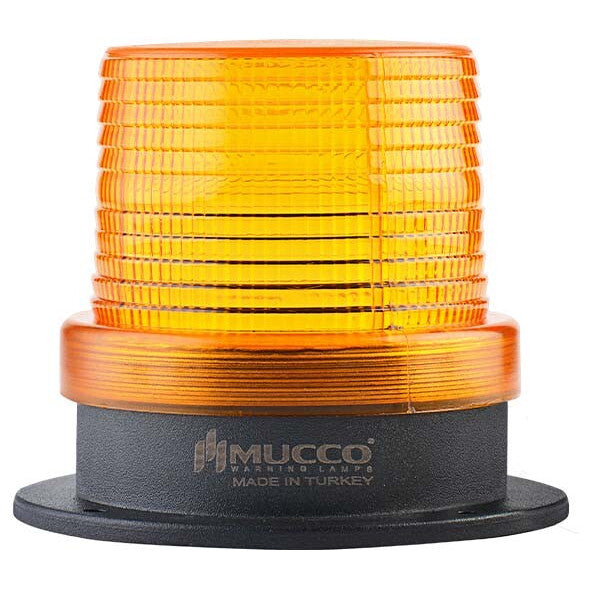

Rotating beacon series 90 SNT-925 with sound signal, ø90mm, 85-250V AC/DC, manufacturer MUCCO (Turkey)

Rated voltage, starting current

85-250 V AC/DC,

41-58mA ±10% 50-60 Hz

Protection level

IP65, water-, dust-, heat- and UV-resistant.

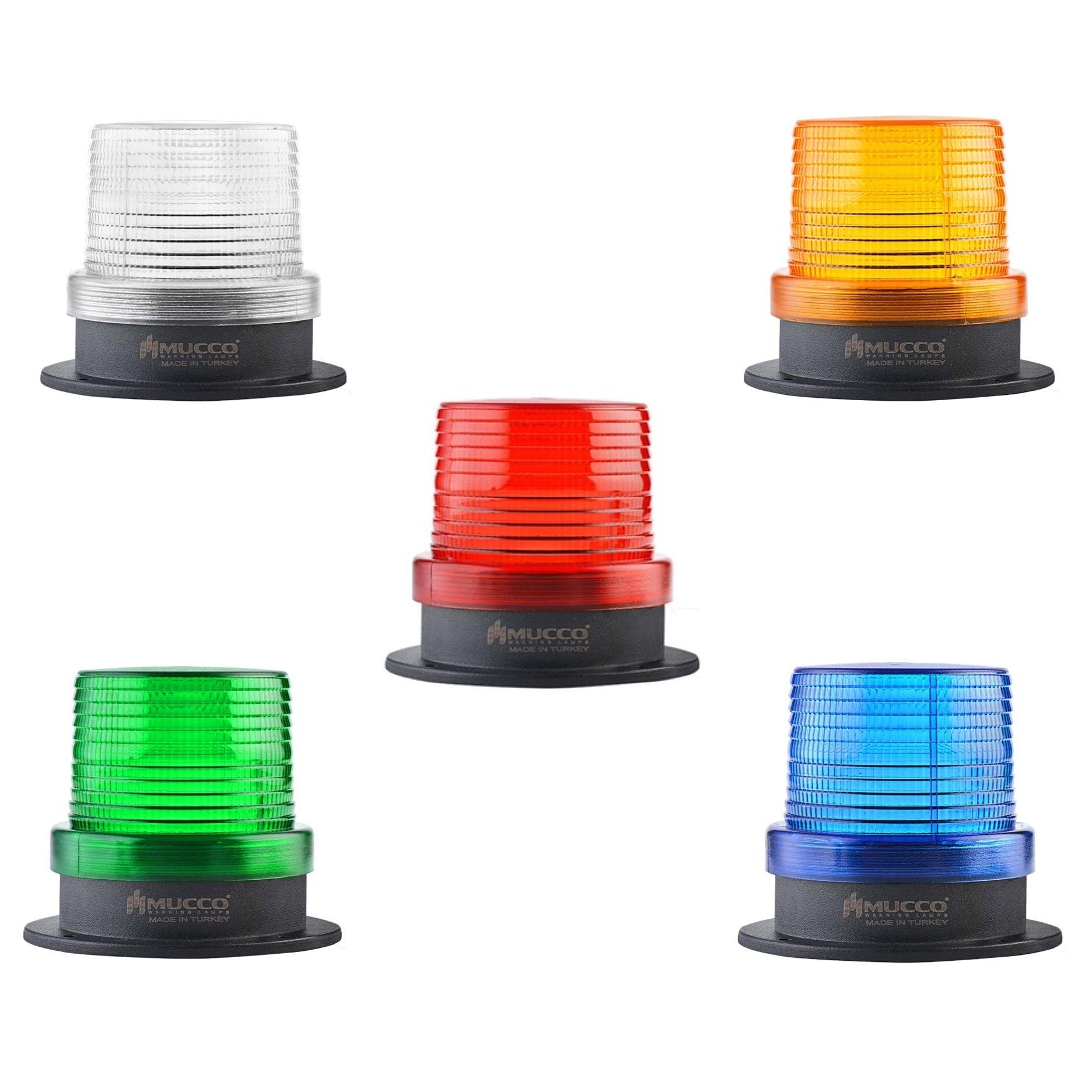

Color of the cover

Red, yellow, green, blue, white

Light source

LED POWER

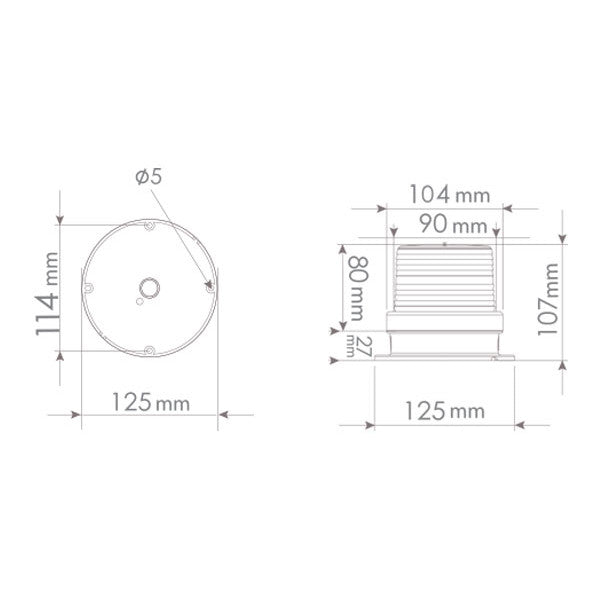

Diameter of the lid

ø70 mm

Volume

94 ~ 100 dB/1 m (3.3 ft)

Opticalsignaltype

constant, flashing, strobe, rotating light

Type of acoustic signal

flashing, 10 sound signal

Input response

Input/output: max. 10 ms

Operating temperature

-20 °C to +50 °C (-4 °F to +122 °F)

Expected lifespan

At least 50,000 hours

Material

ABS (housing) + polycarbonate (cover)

Installation method

Pin, wall

Certificates and quality documents

ISO-9001, CE, RoHS2 and EAC

The electrical supply we provide meets high quality standards, has a 24-month warranty, and complies with all EU requirements.
Returns of goods in the event of a warranty claim are free of charge.
