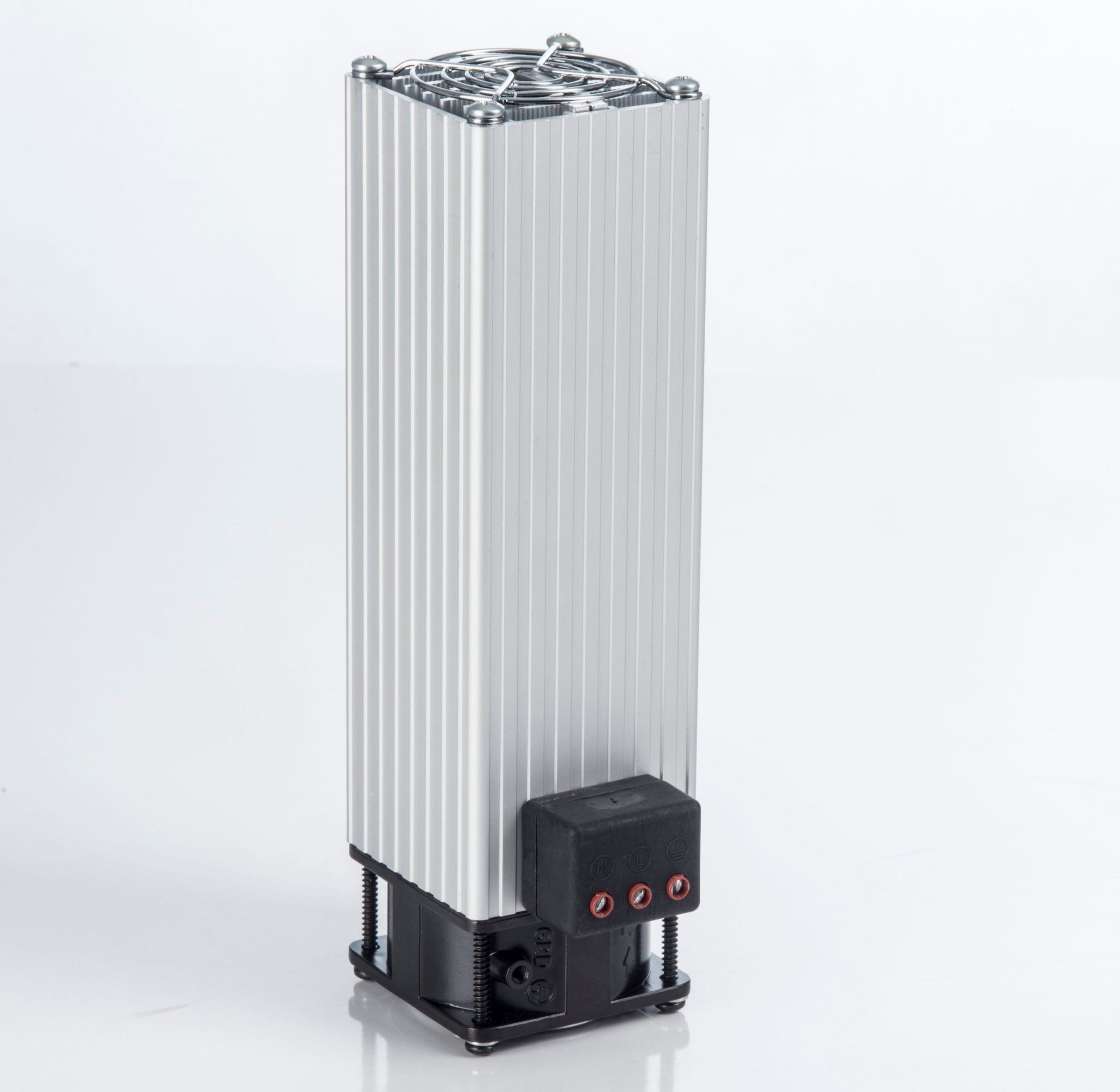

PTC switchboard heater with fan 150W, PFHT150, PLASTIM

Electric (PTC housing heater, post-tank heater) switchboard heater with fan, anodized aluminum heat exchanger and overcurrent protection, for DIN rail mounting, 150 watts, 220/230 volts AC, PFHT150, Plastim - made in Turkey.

• Heating power: 150 W
• Operating voltage: 220/230V AC
• Maximum current: 4A
• Heating element type: self-regulating PTC resistor
• Axial fan: 60x60x30mm 16m3/h
• Overcurrent protection: electronic thermal overload relay
• Electrical connection: 3-pole NLE terminal
• IEC protection class: Class II
• Protection level: IP20
• Operating temperature: -25 / +70 °C
• Storage temperature: -25 / +70 °C
• Heat sink: aluminum profile, anodized
• Installation: 35 mm DIN rail
• Installation position: Best efficiency in vertical position
• External dimensions: 210x89x60 mm
• Weight: 0.94 kg

Heating elements are used to maintain temperature and reduce humidity in electrical panels, automation cabinets, ATMs, payment terminals and other electronic devices. Previously, incandescent lamps were used for these purposes - but it is clear that this method does not guarantee compliance with modern stringent requirements for electrical equipment and electronics. Today, almost all manufacturers are switching to PTC heaters, which not only provide heating, but also ensure safety and reliability.

All heaters are equipped with electronic surface overheating protection, which provides an additional guarantee of safe operation.

Due to the high demands placed on heating cabinets, Plastim has paid great attention to the selection of component suppliers. For example, the supplier of PTC heaters is the same as Schneider Electric, and the terminal block for electrical connection of all components is custom-made by the Italian company KORNER. The plastic from which this block is made has a very important property: when heated, it not only retains its shape and does not deform, but also does not emit any odors and, therefore, does not emit any harmful carcinogenic substances into the atmosphere. Agree that this approach to the selection of suppliers favorably distinguishes high-quality Plastim heaters from cheap Chinese analogues.

To ensure that this heater maintains its temperature automatically, you will need either a simple bimetallic thermostat or a more sophisticated temperature controller. Both devices can be purchased on our website.
