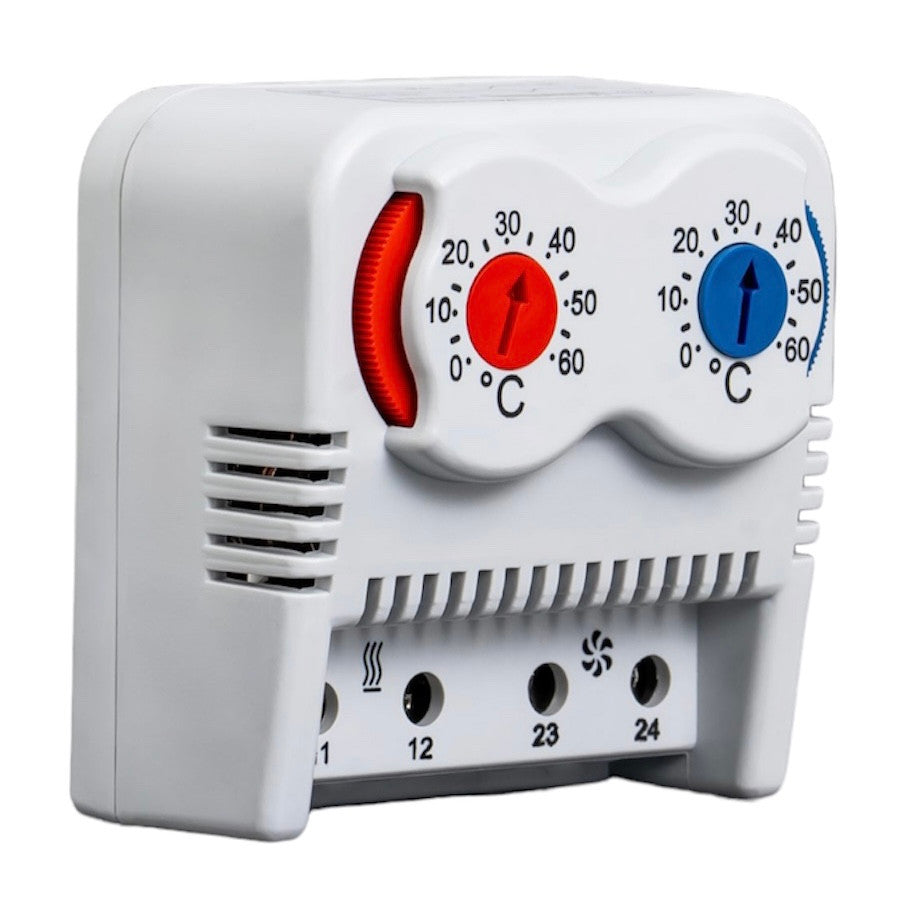

PTHVT Dual/double bimetallic thermostat NC+NO switching, range 0-60°C Plastim
- Regular price
- €14,44
- Regular price
-
- Sale price
- €14,44
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
Pre-order product
- Description
- Payment methods
- Warranty
Dual bimetallic thermostat PTHVT Dual bimetallic thermostat NC+NO (cooling/heating), switchable, 0-60°C, bimetallic
Single thermostat. 220(250) V AC. Bimetal sensor with type, heating function. 4-pin electrical connection 2.5mm2. mounting method 35mm DIN rail, crossbars, mounting panel.
Used to connect both fans (coolers/air conditioners) and heating elements - heating elements, panel heaters, floor heating devices, heating cables, fan heaters.
Features |
PTHVT |
Contact type |
NC+NO |
Setting range |
0-60 / 0-60 °C |
Potentiometer color |
red / blue |
250V AC / 120V AC |
10 (2) 15 (2) A |
Sensor type |
Bimetal |
Contact type |
Snap Action |
Lifetime |
> 100,000 |
Electrical connection |
4-pole terminal, screw terminals |
Plastic material |
UL94 V0 ABS fireproof |
Degree of protection |
IP20 |
Operating temperature |
-25 / +80 °C |
Storage temperature |
-45 /+80°C |
Installation |
DIN rail 35mm |
Dimensions HxWxD |
65x59x42 mm |
Weight |
80g |
