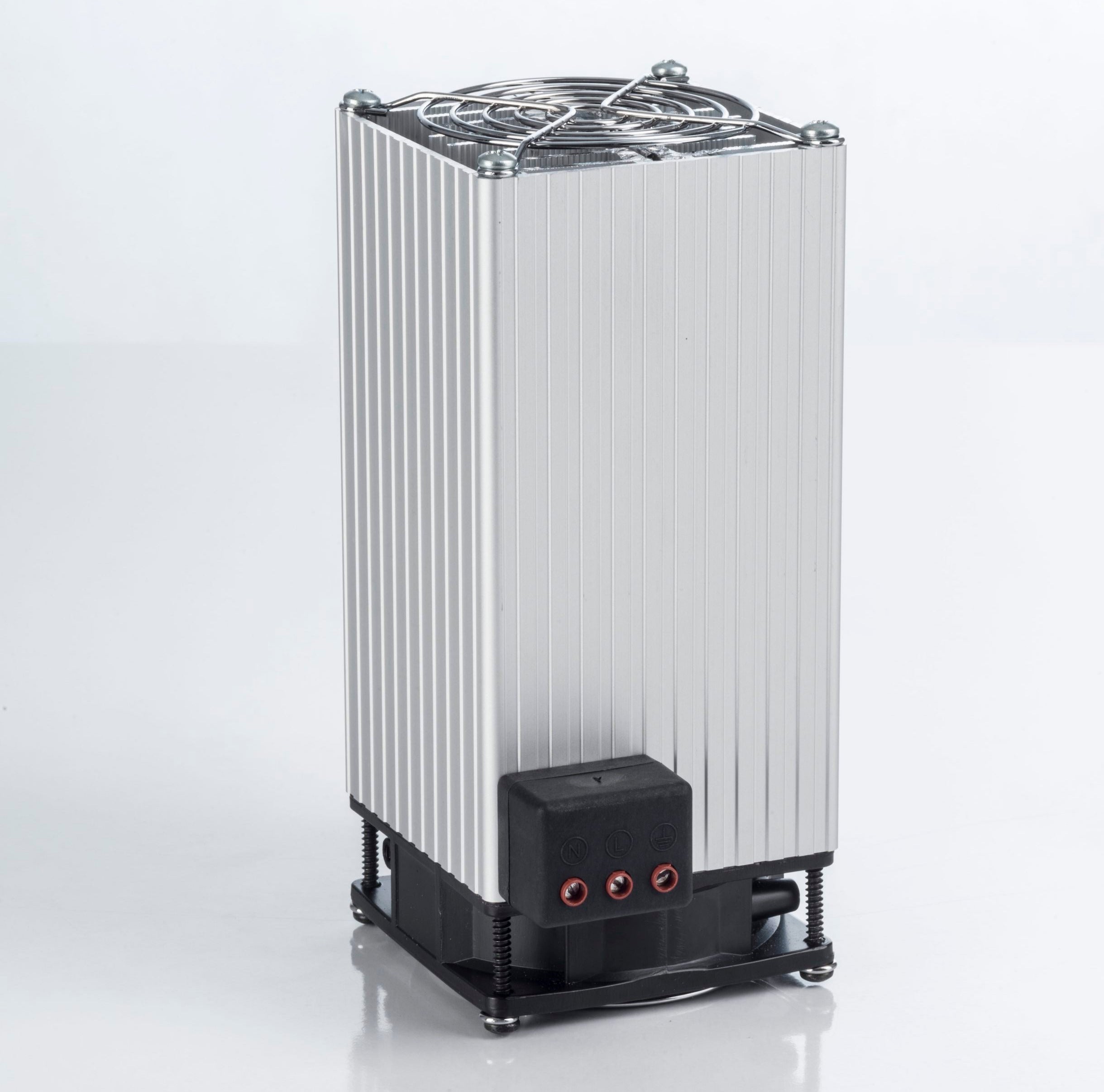

Resistive switchboard heater with fan 500W, PFHT500, PLASTIM

Electric (Resistance Heater, Afterheater) Distribution Cabinet Heater with Fan, Anodized Aluminum Heat Accumulator and Overcurrent Protection, for DIN Rail Mounting, 250 Watts, 220/230 Volts AC, PFHT250, Plastim - made in Turkey.

• Heating Power: 500 W

• Operating Voltage: 220/230V AC, 50/60Hz

• Maximum Current: 2.4 A

• Resistance heater type.

• Axial fan: 80x80x25mm 35m3/h

• Overcurrent Protection: Electronic thermal overload relay

• Electrical Connection: 3-pole N-L-E terminal

• IEC Protection Class: Class II

• Protection Degree: IP20

• Operating Temperature: -25 / +70 °C

• Storage Temperature: -25 / +70 °C

• Heat Sink: Aluminum profile, anodized

• Mounting: 35 mm DIN rail

• Mounting Position: Best efficiency in vertical position

• External Dimensions: 182x80x110mm

• Weight: 1.2 kg

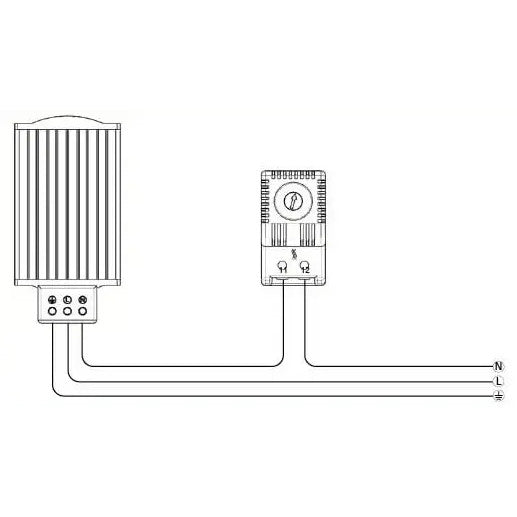

To ensure automatic temperature maintenance with this heater, you will need either a simple bimetallic thermostat or a more sophisticated temperature controller. Both devices can be purchased from our website.
