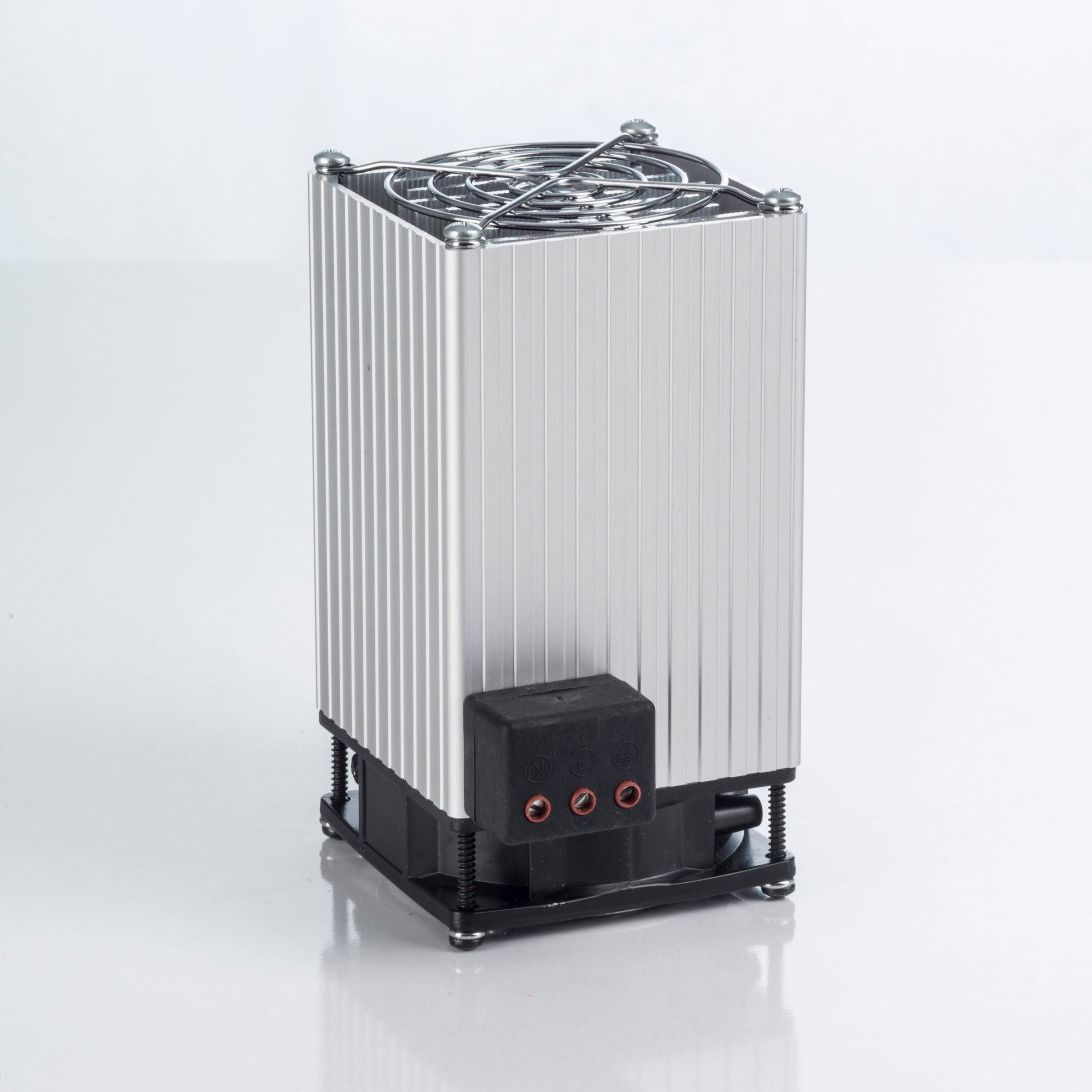

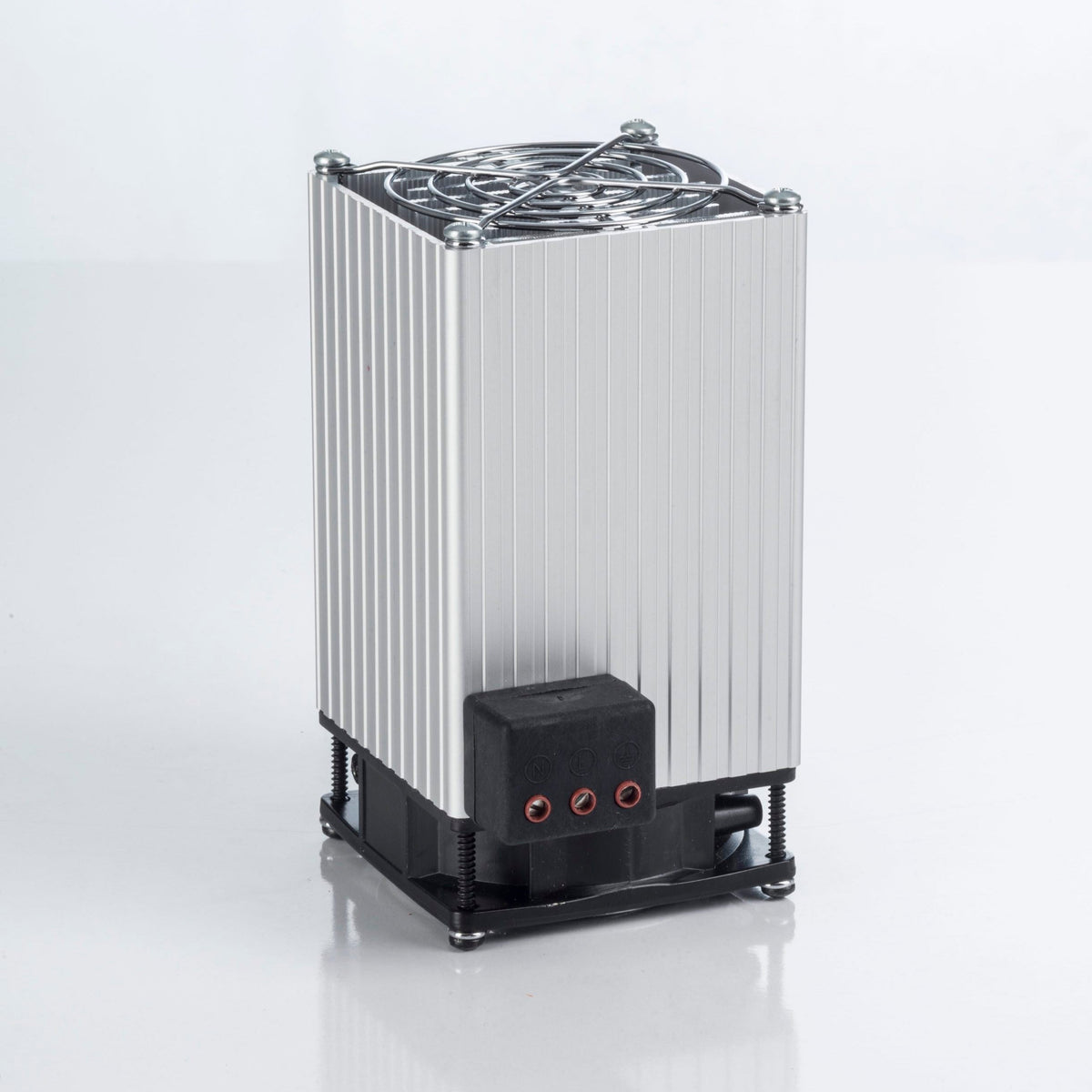

Resistive switchboard heater with fan 250W, PFHT250, PLASTIM

Electric (resistance heater, post-heater) distribution box heater with fan, anodized aluminum heat sink and overflow protection, for DIN rail mounting, 250 watts, 220/230 volts AC, PFHT250, Plastim - made in Turkey.

• Heating power: 250W

• Operating voltage: 220/230V AC, 50/60Hz

• Maximum current: 1.2 A

• Resistance heater

• Axial fan: 80x80x25mm 35m3/h

• Overflow protection: electronic thermal overload relay

• Electrical connection: 3-pole N-L-E terminal

• IEC protection class: Class II

• Protection degree: IP20

• Operating temperature: -25 / +70 °C

• Storage temperature: -25 / +70 °C

• Heat sink: aluminum profile, anodized

• Installation: 35 mm DIN rail

• Installation position: Best efficiency in vertical position

• External dimensions: 152x80x110mm

• Weight: 0.98 kg

To ensure automatic temperature maintenance with this heater, either a simple bimetallic thermostat or a more complex temperature controller is required. Both devices can be purchased from our website.<a href="</p><p></p><p><a href="https://www.pelek.cz/product-pageregul-tory-teploty-a-senzory" target="_blank"></a></p> <p> </p> </p
