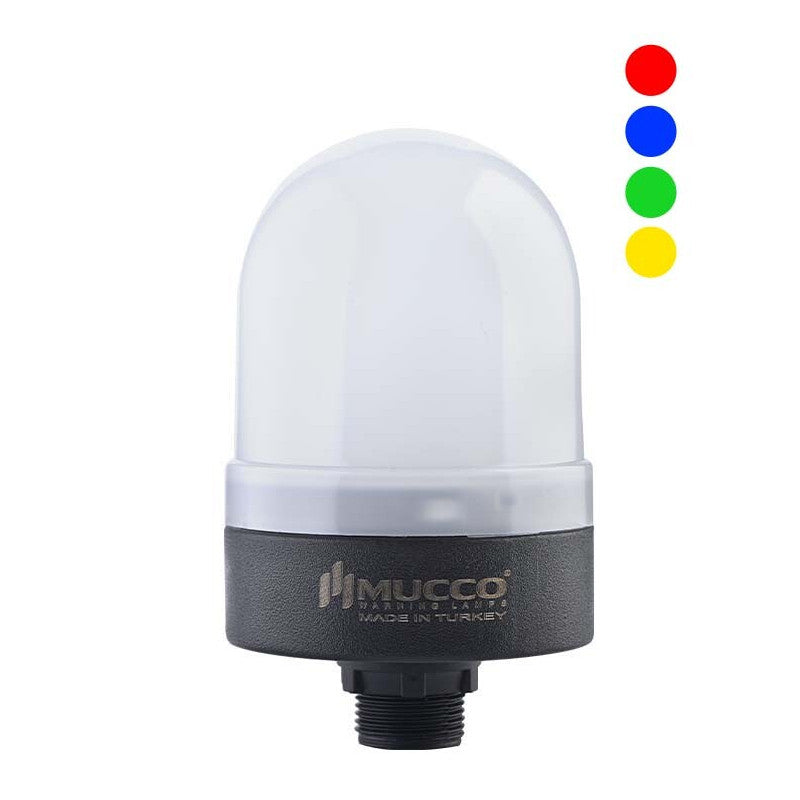

RGB LED beacon with sound signal, 12-24 V/DC, ø70mm

Rated voltage, input

12-24 V/DC

230 mA ±10 %

Protection level

IP65, water-, dust-, heat- and UV-resistant.

Color

Red, yellow, green, blue

Light source

RGB SMD LED

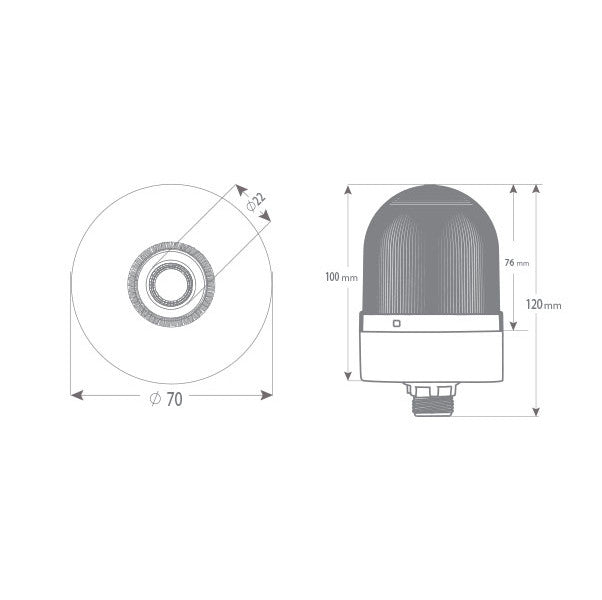

Diameter of the lid

ø70 mm

Volume

77 ~ 98 dB/1 m (3.3 ft)

Opticalsignaltype

Continuous, flashing, strobe

Type of acoustic signal

Sound signal, 16 melodies - can be set using the internal button

Input response

Input/output: max. 10 ms

Operating temperature

-20 °C to +50 °C (-4 °F to +122 °F)

Expected lifespan

At least 50,000 hours

Material

ABS (housing) + polycarbonate (cover)

Installation method

Connection with M22 nut

Certificates and quality documents

ISO-9001, CE, RoHS2 and EAC
