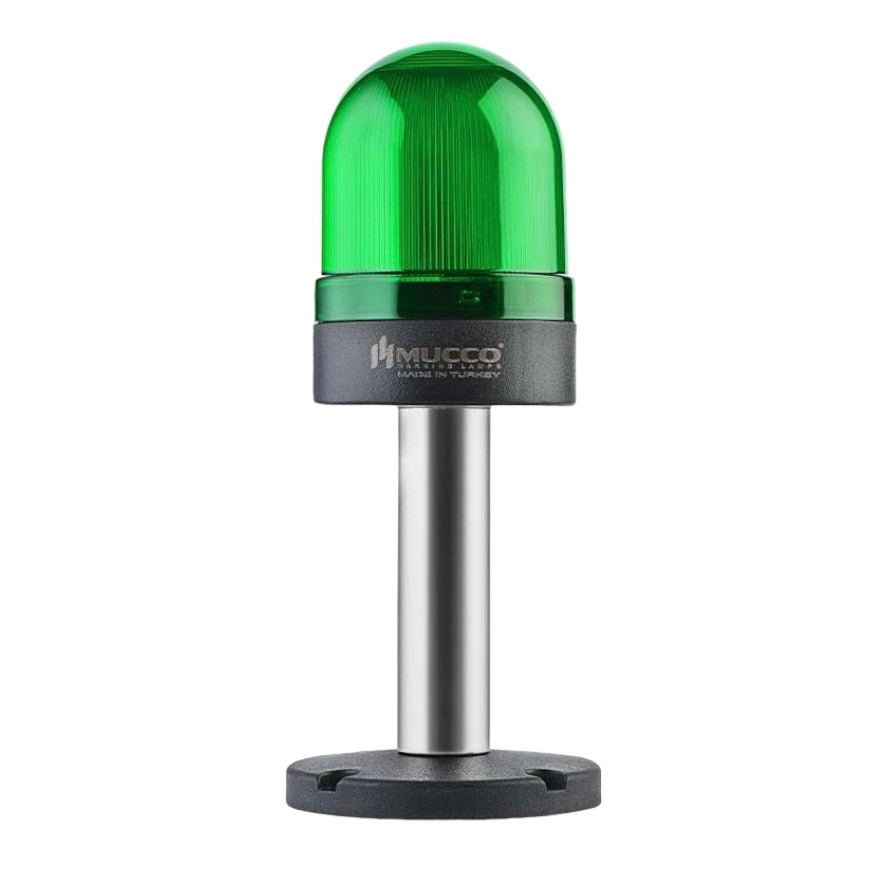

Green signal lantern series 70 with nut connector

Green signal lantern series 70 with nut connection, 12-24, 40-250V AC/DC, manufacturer MUCCO (Turkey)

70 LENS OPTIONS

TYPE LIGHTING flashing

Sound signal options with sound signal

EXTENSION TUBE 10 cm

TECHNICAL DATA

• Category.
• Current:

24V/DC (without buzzer): 110mA ±10%.

24V/DC (with sound signal): 10% 10V/DC (with sound signal): 150mA ±10%

40~250V AC/DC (without buzzer): 10/10 mA: 78mA ±10% 50-60 Hz

40~250V AC/DC (with buzzer): 60-60 Hz: 95mA ±10% 50-60 Hz

• Housing material: ABS (housing) + polycarbonate (lens)
• Lens colors: red, green, yellow, blue, white

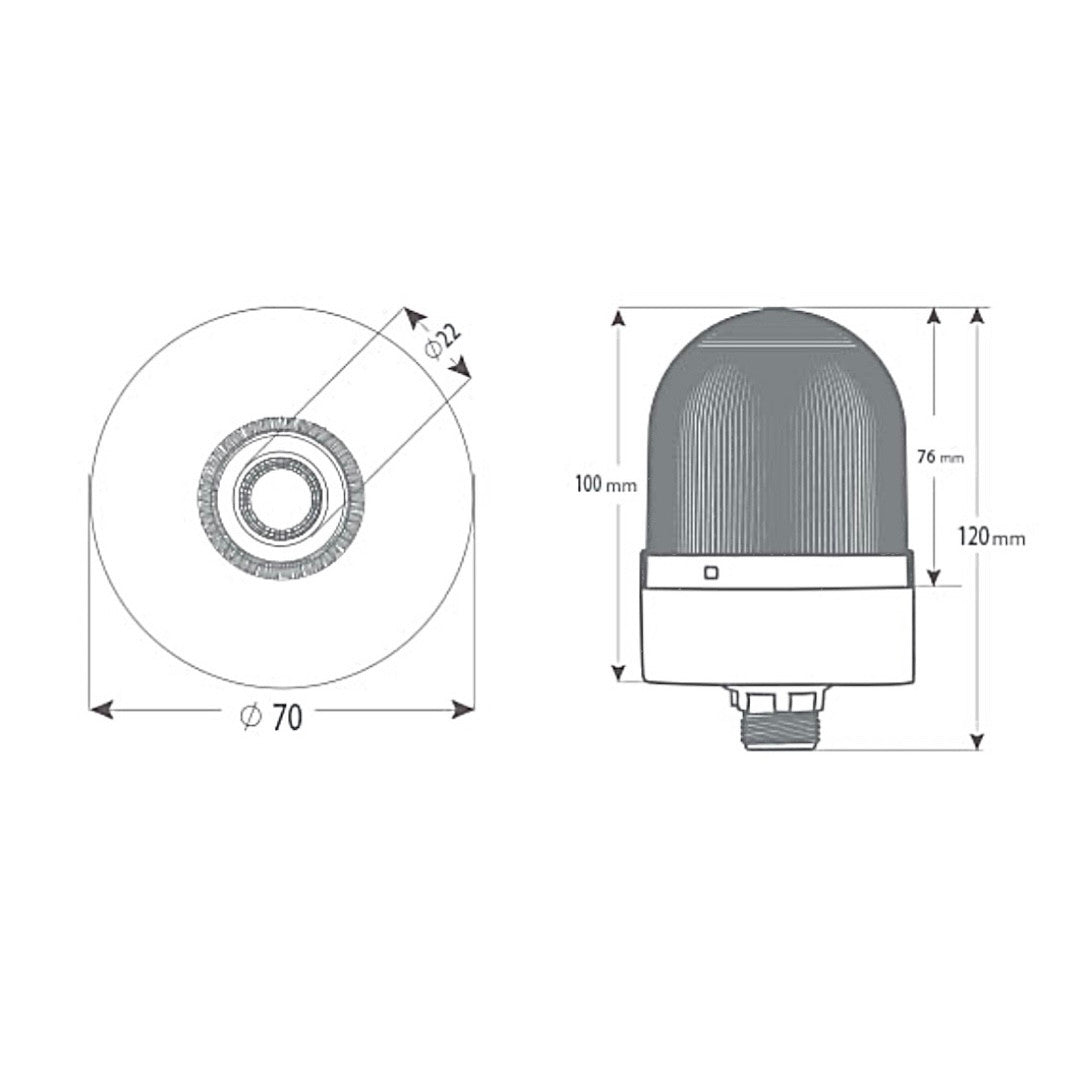

• Lens diameter: ø70 mm (nut M22 - connection)
• Light source: LIGHT SOURCE: SMD LED
• Light mode: Continuous, flashing
• Input response time: on/off: max. 10 ms
• Sound signal: (wired control): 1 sound signal
• Alarm: 104~107 dB at 1 m distance (3.3 ft)
• Connection: wired connection:
• Surface, wall mounting Mounting type: Mounting: Surface, wall.
• Operating conditions: -20°C to +50°C (-4°F to +122°F)
• Expected lifespan: duration: min. 50,000 hours
• Protection class: IP65
• Protection: Water, dust, heat, and UV resistance
• Quality certificates and documents: ISO-9001, CE, RoHS2, and EAC
