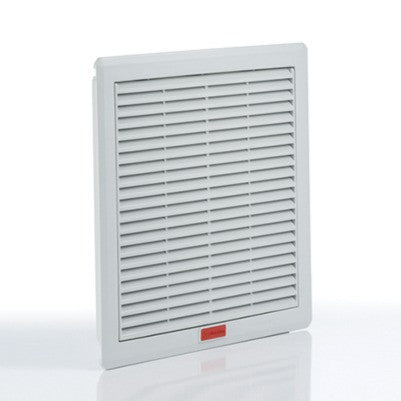

Square with filter PFI2500, Plastim
Used to draw outside air into electrical cabinets, ATMs, payment terminals, gaming machines, vending machines, control panels, gas stations or to extract heated air from them for cooling. They are usually installed in the side walls of boxes (plastic and metal) to maintain IP.
The ventilation grille is equipped with a replaceable filter. This filter cartridge can be easily replaced or cleaned and reused.
- External dimensions: 260x260x31 mm
- Installation dimensions: 223x223 mm
- Operating temperature: -10/+70 °C
- Protection level: IP54
- Plastic material: UL94 V0 ABS flame retardant
- Sealing: polyurethane seal
- Color: RAL 7035 (RAL 7032 on request)
- Weight: 0.48 kg
- Installation: Quick attachment
Can be used with PTF2500, PTF3500, PTF4500 or other fan products.
The ventilation grille is equipped with a replaceable filter. This filter cartridge can be easily replaced or cleaned and reused.
