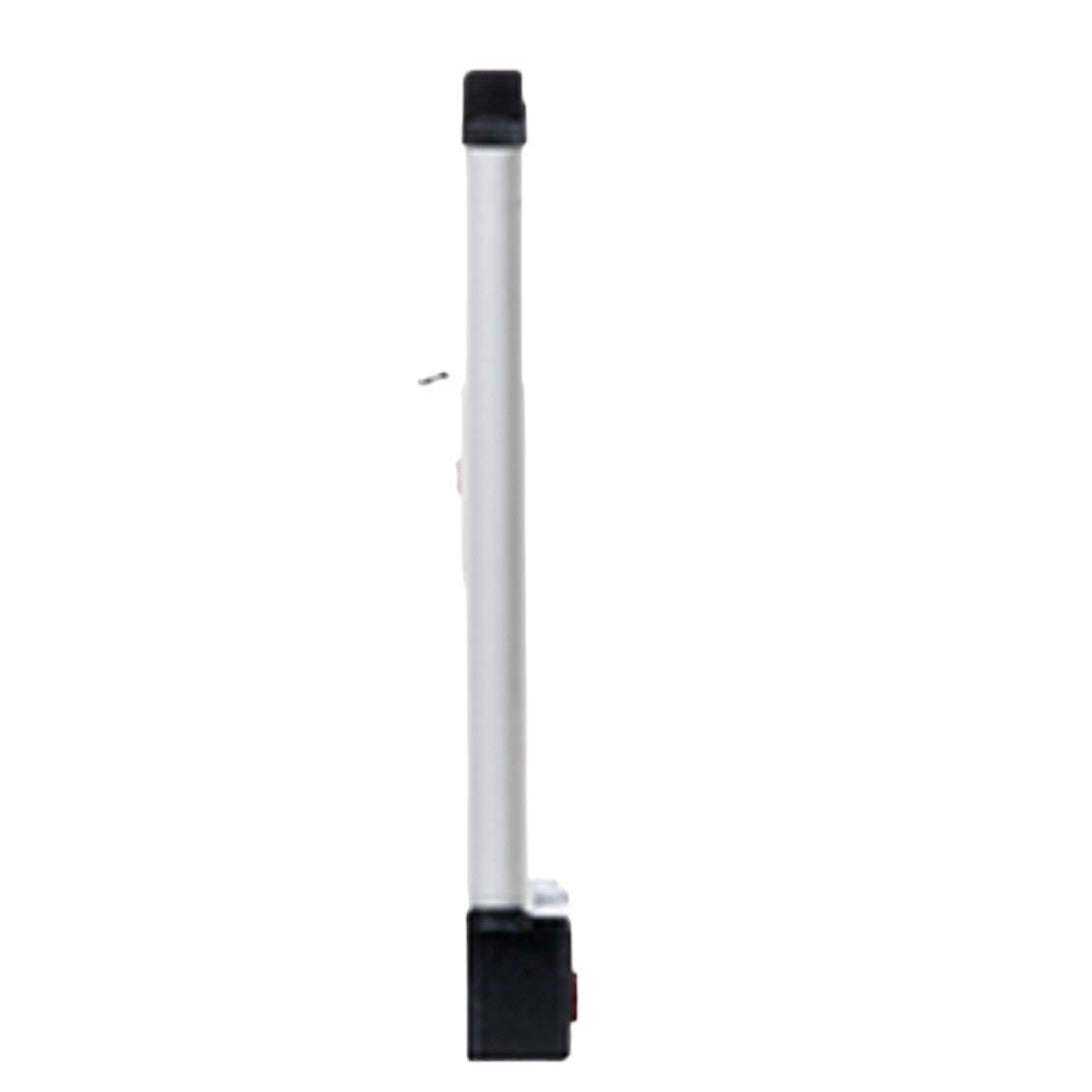

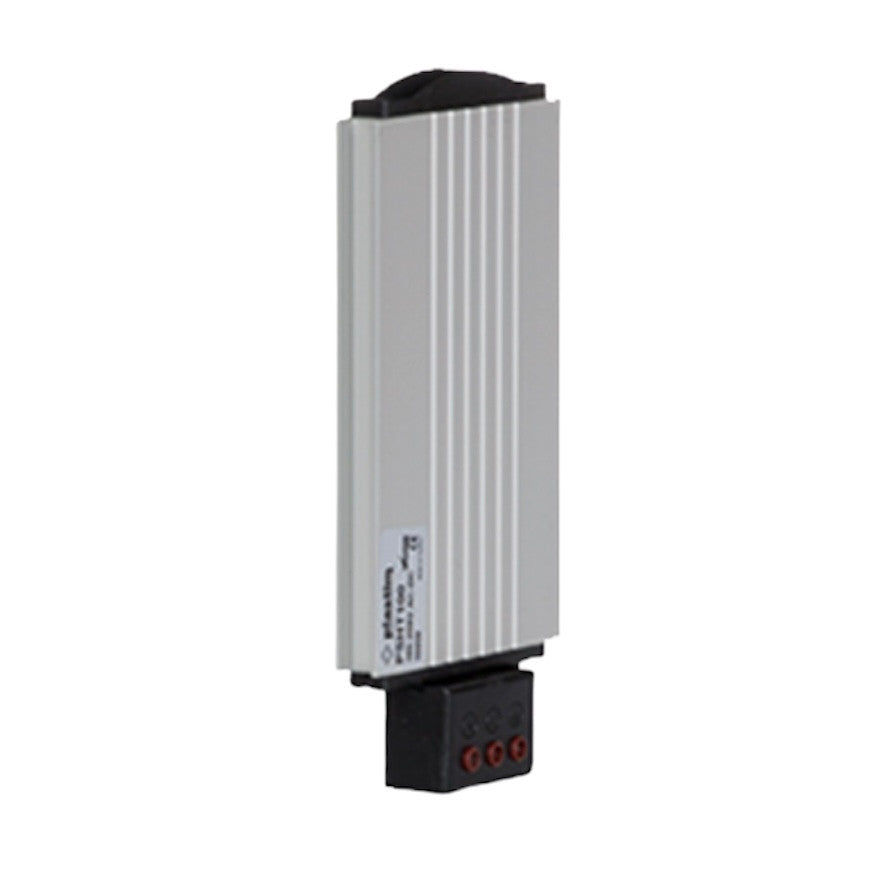

Slim PTC 30W switchboard heater, PSHT030, Plastim

Thin electric (PTC Body heater, post-tension heater) distribution board heater with anodized aluminum heat sink and overcurrent protection, for DIN rail mounting, 30 watts, 110-220 volts AC or DC, PSHT030, Plastim - Made in Turkey.

• Heating power: 30W
• Operating voltage: 100-250V AC/DC
• Maximum current: 2A
• Self-regulating PTC resistor
• Overcurrent protection: electronic thermal overload relay
• Electrical connection: 3-pole N-L-E terminal
• IEC protection class: Class II
• Protection degree: IP20
• Operating temperature: -45 / +70 °C

• Storage temperature: -45 / +70 °C

• Heat sink: aluminum profile, anodized

• Mounting: 35 mm DIN rail

• Mounting position: Best efficiency in vertical position

• External dimensions: 148x80x27mm

• Weight: 0.19 kg

Heaters are used to maintain temperature and reduce humidity in electrical panels, automation cabinets, ATMs, payment terminals, and other electronic devices. Previously, incandescent lamps were used for these purposes - but it is clear that this method does not comply with modern strict requirements for electrical equipment and electronics. Today, almost all manufacturers are switching to PTC heaters, which not only provide heating but also ensure safety and reliability.

All heaters are equipped with electronic surface overheat protection, which provides an additional guarantee of safe operation.

Due to the high demands on heating cabinets, Plastim has paid great attention to the selection of component suppliers. For example, the supplier of PTC heaters is the same as for Schneider Electric, and the terminal block for the electrical connection of all components is custom-made by the Italian company KORNER. The plastic from which this block is made has a very important property: when heated, it not only retains its shape and does not deform, but also does not emit any odors and thus does not release any harmful carcinogenic substances into the atmosphere. Agree that such an approach to supplier selection favorably distinguishes high-quality Plastim heaters from cheap Chinese analogues.

To ensure automatic temperature maintenance with this heater, you will need either a simple bimetallic thermostat or a more complex temperature controller. Both devices can be purchased on our website:
