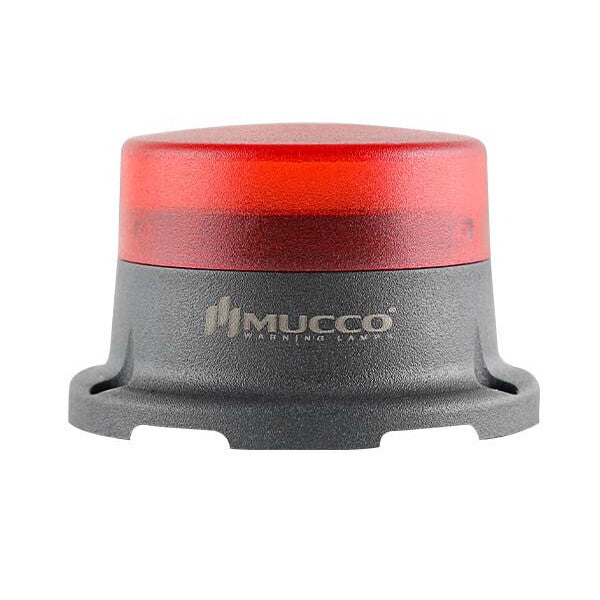

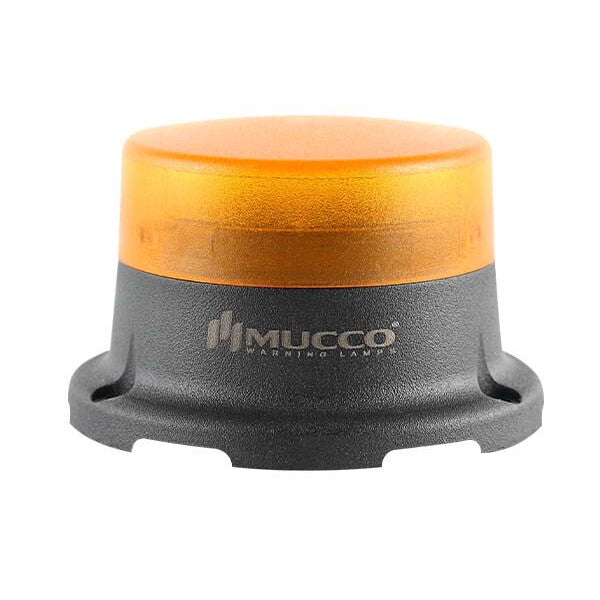

SNT-M725, SNT-M715 signal beacon with sound signal, ø70mm

Rated voltage, starting current

24 V DC 110-150 mA ±10 % (SNT-M715)

40-250 V AC/DC,

78-95mA ±10% 50-60 Hz (SNT-M725)

Protection level

IP65, water, dust, heat, and UV resistance

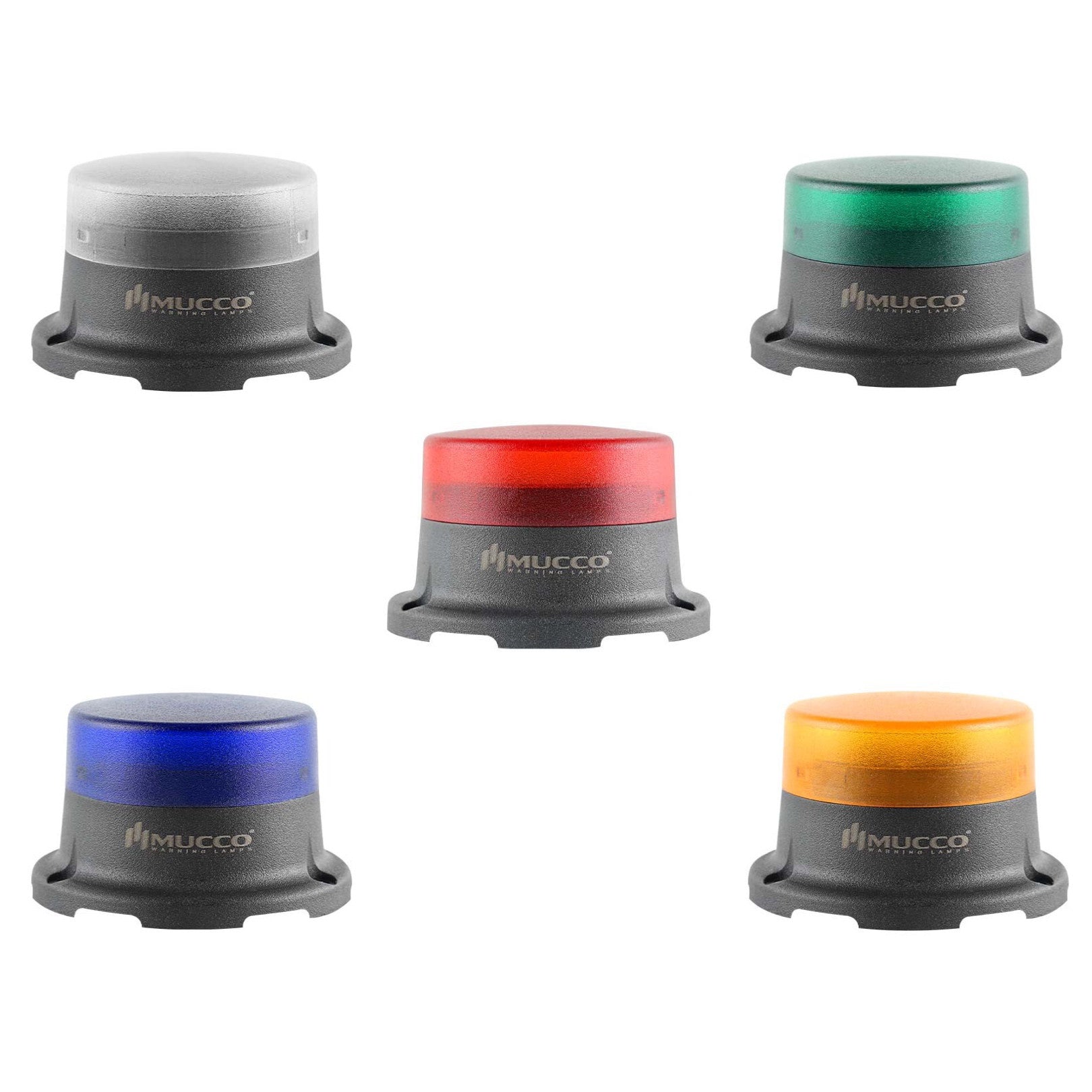

Color of the cover

Red, yellow, green, blue, white

Light source

SMD LED

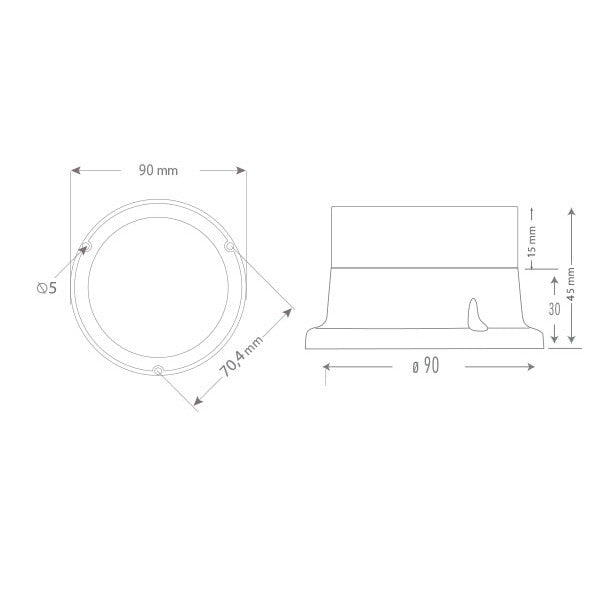

Cover diameter

ø70 mm

Volume

94 ~ 100 dB/1 m (3.3 ft)

Opticalsignaltype

pidev valgus, värelus

Type of acoustic signal

Sound signal, 1 ton

Input response

Input/output: max. 10 ms

Operating temperature

-20 °C to +50 °C (-4 °F to +122 °F)

Expected lifespan

At least 50,000 hours

Material

ABS (housing) + polycarbonate (cover)

Installation method

Pin, wall

Certificates and quality documents

ISO-9001, CE, RoHS2 and EAC
