SNT-MS725, SNT-MS715 signal beacon with sound signal, ø70mm, connection nut

Barcode: SNT-MS715-FB-1

Regular price: €37,84
Regular price
Sale price: €37,84
Unit price: per

excl. VAT: €31

Low stock: 4 left

Color: Red Red Green

Operating voltage: 24V/DC 24V/DC 40-250 V AC/DC

Product variants

Description
Payment methods
Warranty

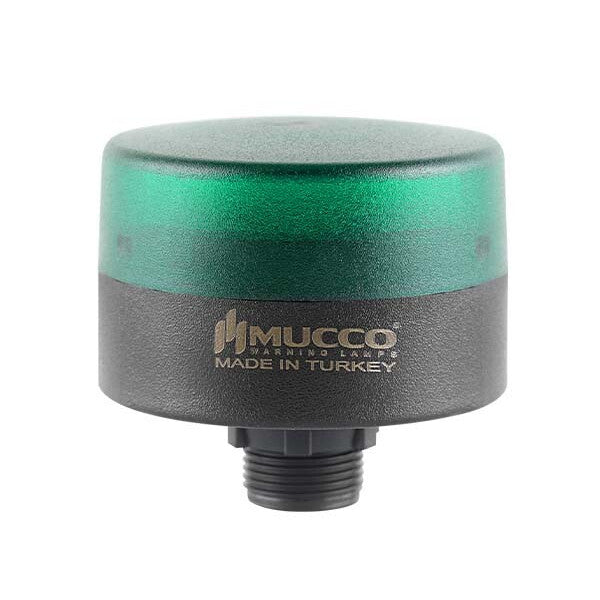

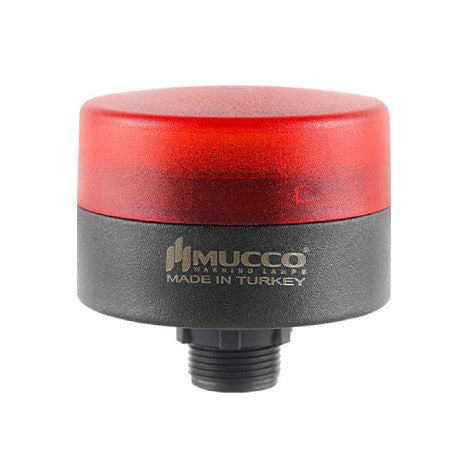

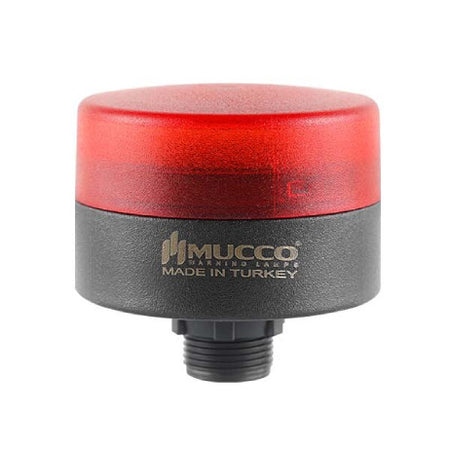

Series 70 SNT-MS725, SNT-MS715 signaling beacon with sound signal, ø70mm, connection nut, manufacturer MUCCO (Turkey)

Category	Signal beacon
Rated voltage, power consumption	24V/DC (without summer)	110mA ±10%
	24V/DC (with sound signal)	150mA ±10%
	40~260V AC/DC (without sound signal)	78mA ±10% 50-60 Hz
	40~260V AC/DC (with sound signal)	95mA ±10% 50-60 Hz
Material	ABS (housing) + polycarbonate (cover)

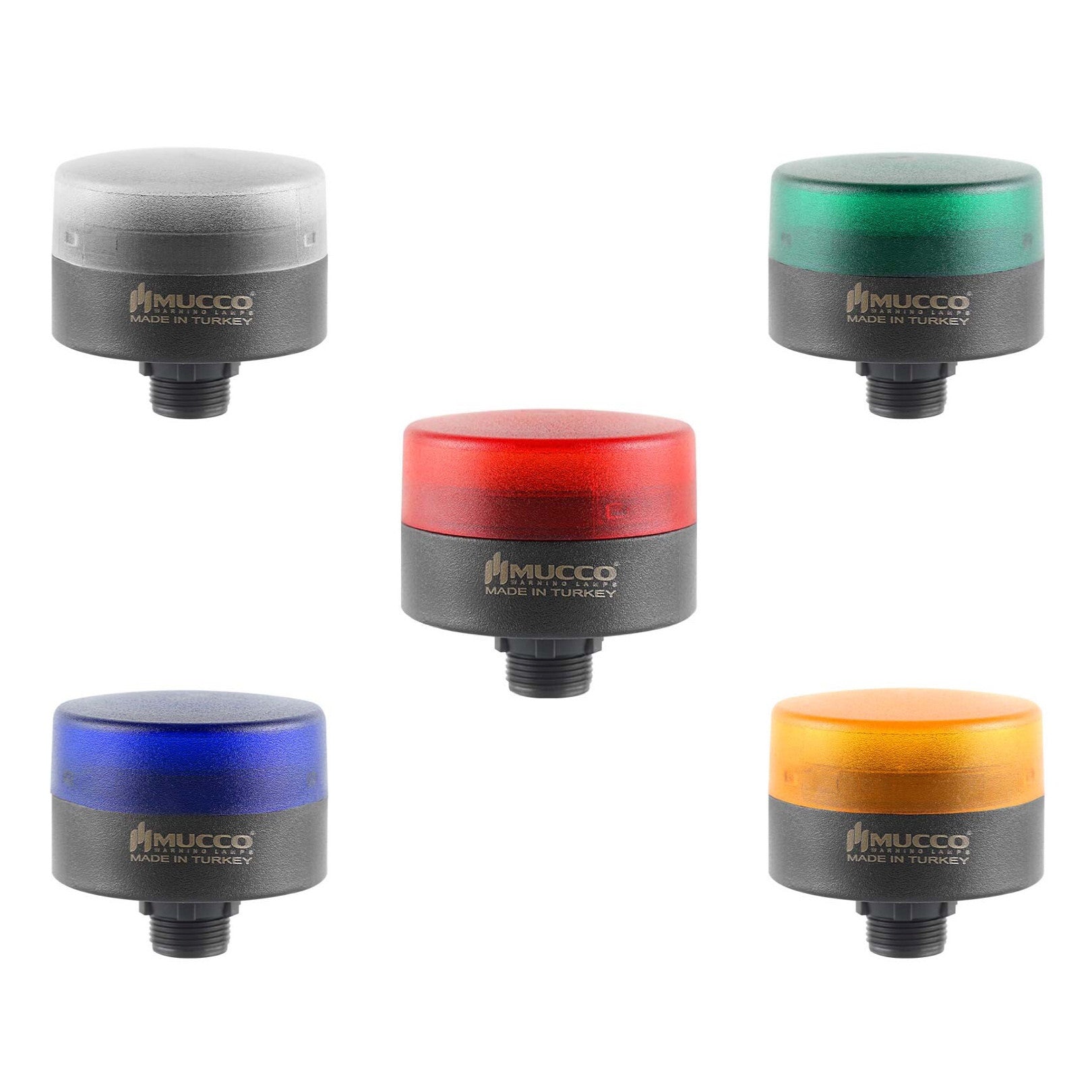

Color of the cover	Red, yellow, green, blue, white

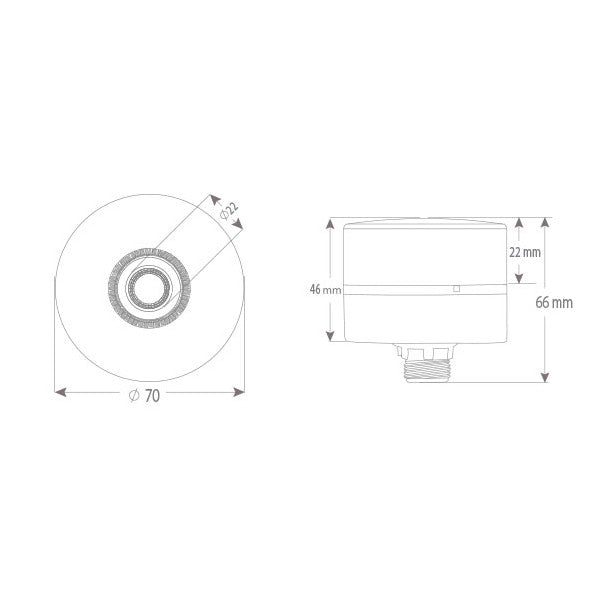

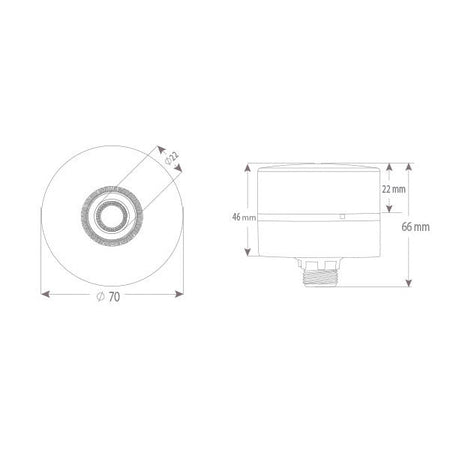

Diameter of the lid	ø70 mm (nut M22 - end cap)
Light source	SMD LED
Type of optical signal	steady light, flashing
Input response	Input/output: max. 10 ms
Type of acoustic signal	1 tone (wired control)
Alarm	94 ~ 100 dB at 1 m distance (3.3 ft)
Connection	Wire
Installation type	On the surface, on the wall
Operating temperature	-20°C to +50°C (-4°F to +122°F)
Expected lifespan	At least 50,000 hours
Protection level	IP65
Protection	Water, dust, heat, and UV resistance
Certificates and quality documents	ISO-9001, CE, RoHS2 and EAC.
