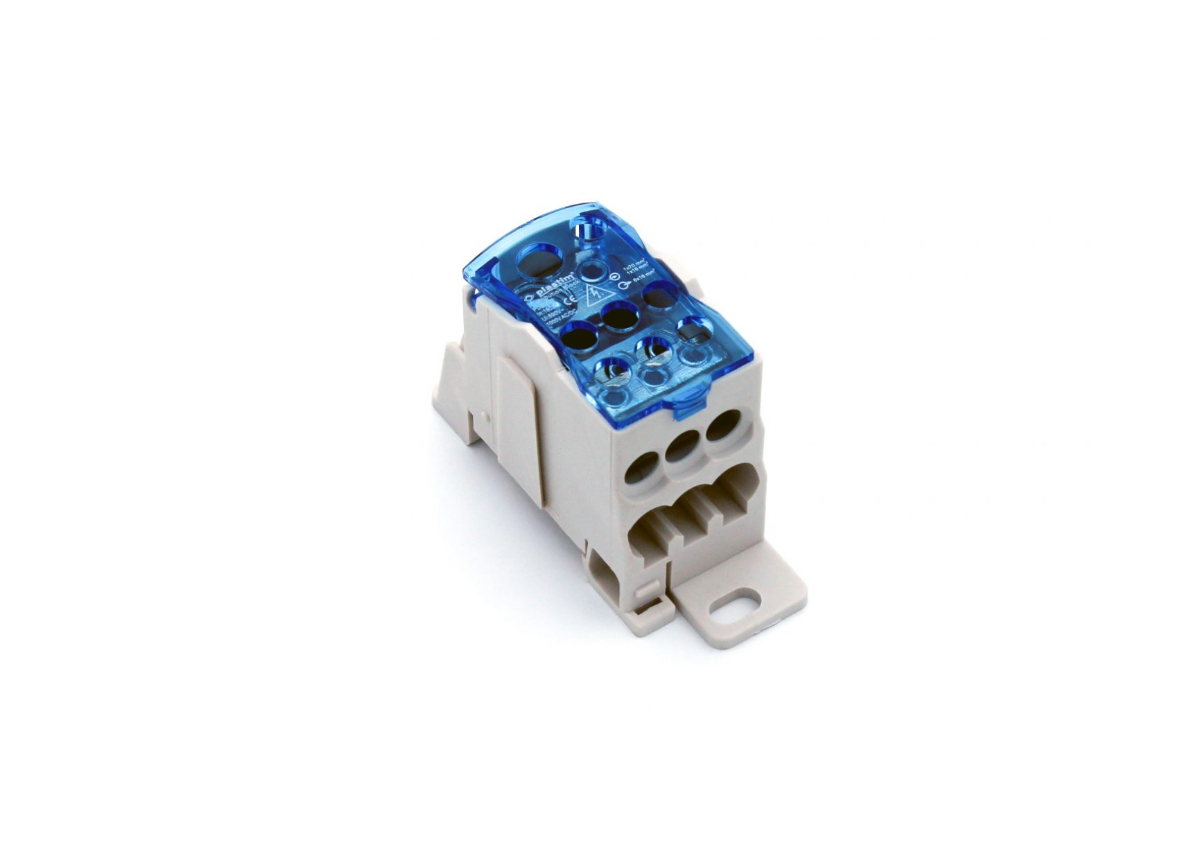

Phase separation terminal block PDB 160

Terminal block for phase separation on DIN rail, Plastim.

The Plastim PDB 160 compact distribution block is used for safe and clear branching of phases or neutral conductors in distribution boards. It allows connecting and branching a single large cross-section main power conductor into seven output circuits. The durable brass bridge ensures perfect conductivity and low contact resistance, while the plastic cover provides protection against accidental contact. The block is designed for quick installation on a standard 35 mm DIN rail or for mounting with screws on a mounting plate.

Technical parameters

• Product type: The product is made to be both possible and not possible.

• Rated current: 160 A

• Number of inputs: 1

• Number of outputs: 7 (6 standard outputs + 1 jumper connection)

• Input wire cross-section: 10 - 70 mm²

• Output wire cross-section: 6 × 2.5 - 16 mm².

• Bridge cross-section: 1× 6 - 16 mm².

• Connection type: screw connection

• Mounting method: DIN 35 mm mounting rail / mounting plate
