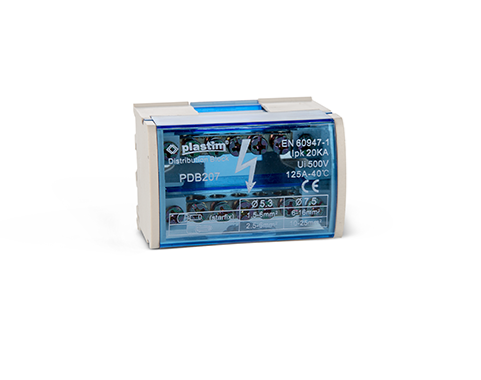

Phase separation terminal block PDB207

Terminal block for phase separation on DIN rail, Plastim, made in Turkey.

The compact Plastim double-sided distribution block is used for safe and clear branching of phases and neutral conductors in distribution boards. The design includes two separately insulated distribution blocks (2 poles), each with 7 connection points. Durable brass bridges ensure high electrical conductivity and low contact resistance. The plastic cover provides reliable protection against accidental contact. The block is intended for installation on a standard DIN 35 mm mounting rail or for fixing with screws on a mounting plate.

Technical parameters

• Product type: The product is designed to be usable whether or not it is installed.

• Number of poles: 2

• Rated current: 125 A

• Number of terminals per pole: 7

• Total number of terminals: 14 (2×7)

• Terminal configuration per pole: 5× ø 5.3 mm + 2× ø 7.5 mm

• Connection type: screw connection

• Mounting method: DIN 35 mm mounting rail / mounting plate

Dimensions

• Width: 65.0 mm

• Depth: 45.5 mm

• Height: 51.0 mm
