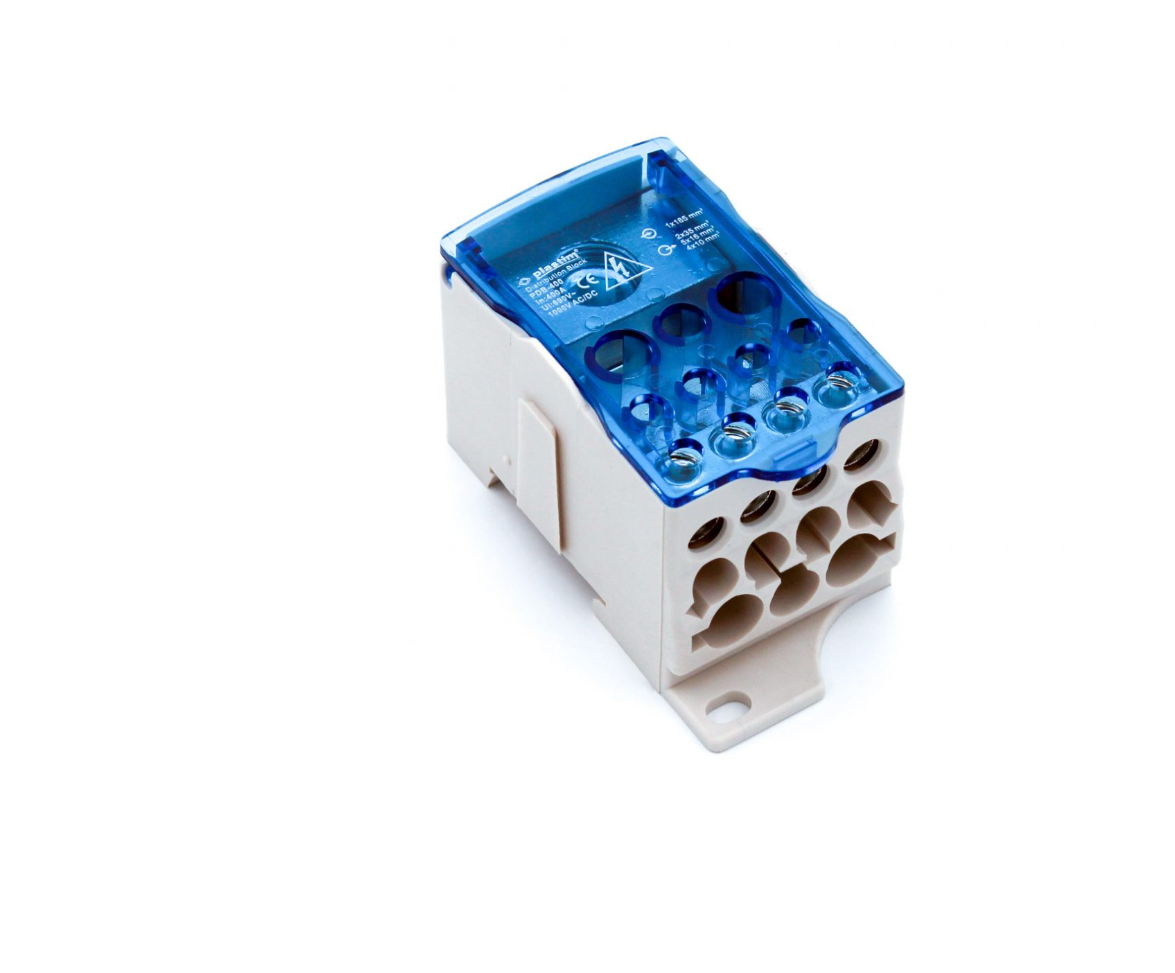

PDB400 phase separation terminal block

Terminal block for phase separation on DIN rail, Plastim

The Plastim high-performance distribution block is used for the safe and clear distribution of phases or neutral conductors in industrial distribution devices and main power points. This compact module allows connecting one main power conductor with a large cross-section (up to 185 mm²) and reliably splitting it into 11 separate output branches with three different power ratings. The robust construction and high-quality conductive core ensure minimal transition resistance and 100% stability at full current load of 400 A. The plastic housing provides safe enclosure and protection against accidental contact. The block is designed for installation on a standard DIN 35 mm mounting rail or for fixing with screws on a mounting plate.

Technical parameters

• Product type.

• Rated current: 400 A

• Number of inputs: 1

• Number of outputs: 11

• Input conductor cross-section: 1×95 - 185 mm²

• Output conductor cross-section:

  • 4× 2.5 - 10 mm²

  • 5× 2.5 - 16 mm²

  • 2× 6 - 35 mm²

• Connection type: screw connection

• Installation method: DIN 35 mm mounting rail / mounting plate
