PDB415 phase separation terminal block

Terminal block for phase separation on DIN rail, Plastim, made in Turkey.

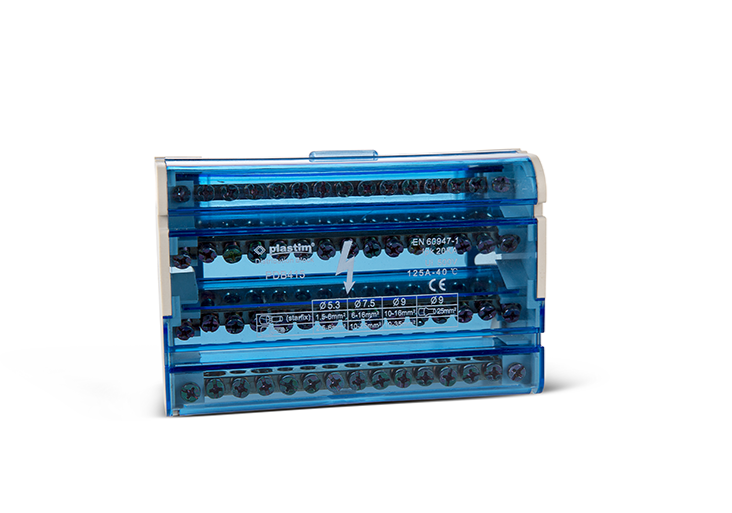

The Plastim four-pole distribution block is used for safe, clear, and space-saving branching of three phases and a neutral conductor (3P+N) in distribution cabinets. The set consists of four separate galvanically isolated brass busbars (4-pole), each with 15 connection points of three different diameters to optimally combine the main power supply and a large number of terminal outputs. The transparent hinged cover allows immediate visual inspection of connections while providing reliable protection against accidental contact. The block is designed for quick attachment to a standard DIN 35 mm mounting rail or fixed mounting with screws on a mounting plate.

Technical parameters

• Product type: The product is manufactured to be usable as well.

• Number of poles: 4 (suitable for three-phase networks with neutral conductor).

• Rated current: 125 A

• Number of terminals per pole: 15

• Total number of terminals: 60 (4×15)

• Terminal configuration per pole: 9× ø 5.3 mm + 2× ø 7.5 mm + 2× ø 9.0 mm

• Connection type: screw connection

• Mounting method: DIN 35 mm mounting rail / mounting plate

Dimensions

• Length: 132.0 mm

• Width: 89.5 mm

• Height: 51.0 mm
