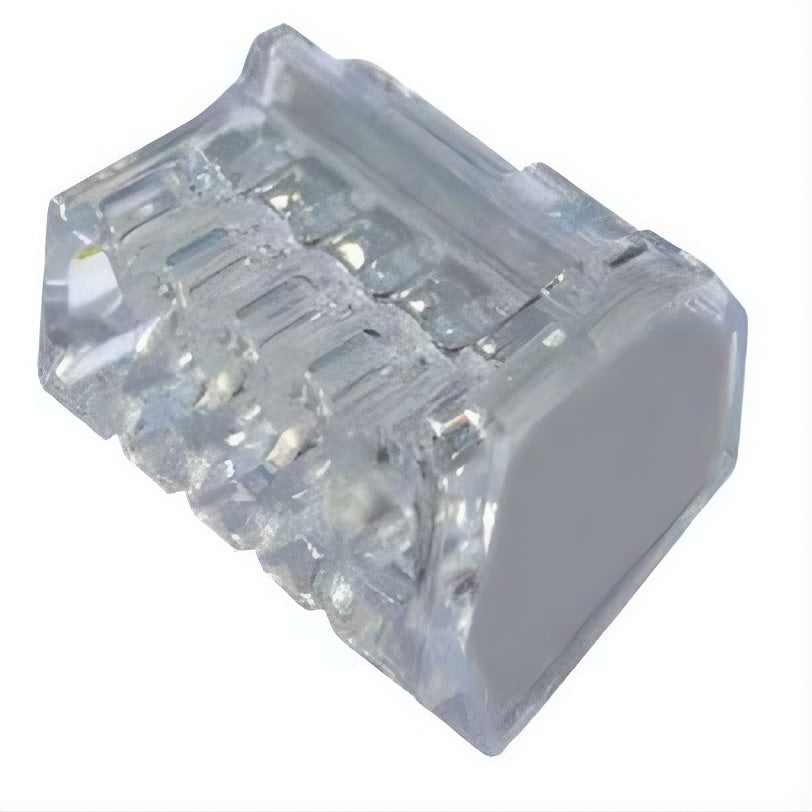

TRANSPARENT 5-pole plug 2.5 mm²

Transparent socket for 5 wires, ONKA

ONKA compact, screwless Push-in quick connectors allow fast, safe, and reliable connection of up to five solid copper wires with a cross-section of up to 2.5 mm² without tools. The fully transparent housing ensures immediate visual inspection of correct wire insertion. The terminal features an integrated test hole for safe measurement of network parameters. Thanks to the very low profile, with a height of only 9.5 mm, it saves valuable space in junction boxes.

Technical specifications

• Product type: The clamp is designed to be compact and not too large.

• Connection technology.

• Number of poles (number of connection points): 5.

• Maximum wire cross-section: 2.5 mm².

• Housing color: transparent

• Wire type: Solid wire

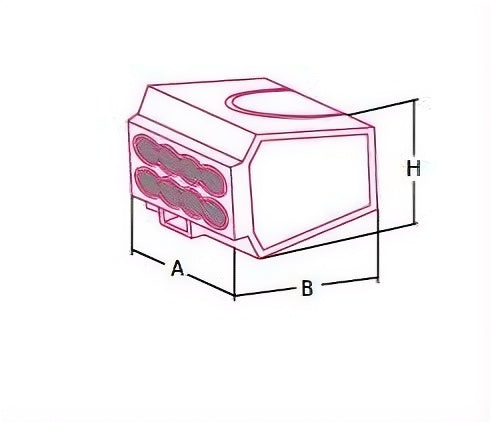

Dimensions

• Dimension A (width): 21.1 mm

• Dimension B (depth): 19.7 mm

• Dimension H (height): 9.5 mm
