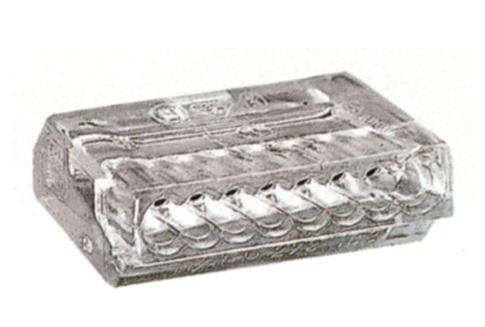

Transparent wire connection Push-in 2.5 mm², 8-pole

Transparent socket for 8 wires, ONKA

ONKA compact screw Push-in quick connectors allow fast, safe, and reliable connection of up to eight solid copper wires with a cross-section of up to 2.5 mm² without tools. The fully transparent housing ensures immediate visual inspection of correct wire insertion. The clamp has an integrated test hole for safe measurement of network parameters. The design allows easy wire organization and saves space in wiring boxes.

Technical parameters:

• Product type: Box quick connector.

• Connection technology: Screw / Push-in

• Number of poles (number of connection points): 8

• Maximum wire cross-section: 2.5 mm²

• Housing color: Transparent

• Wire type: Solid wire

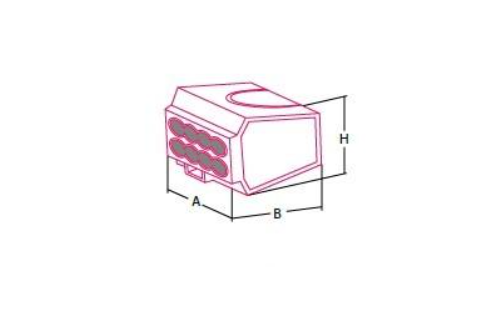

Dimensions:

• Dimension A (width): 17.5 mm

• Dimension B (depth): 19.0 mm

• Dimension H (height): 16.8 mm
