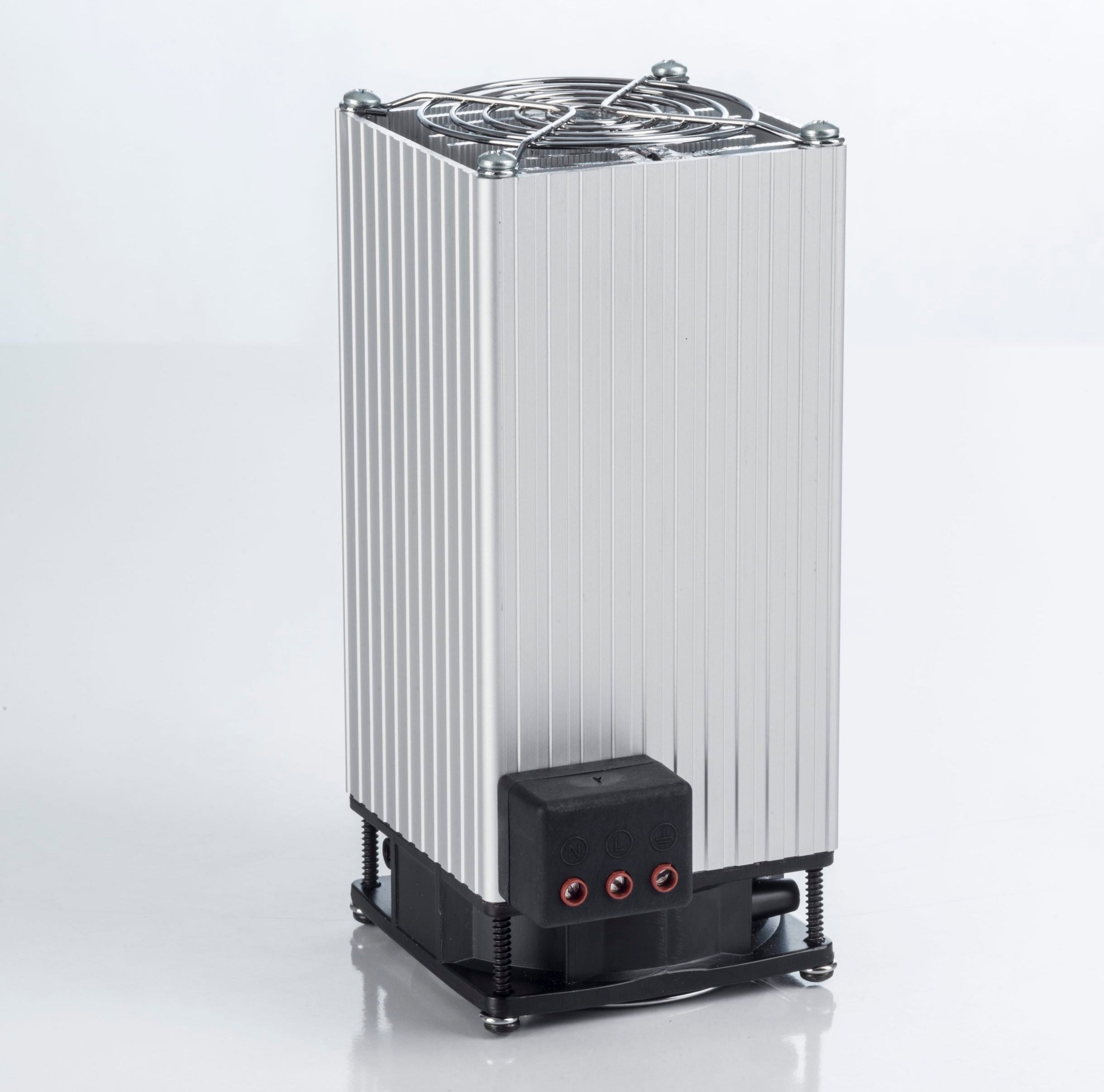

Resistance switch with fan 750W, PFHT750, PLASTIM

Electric (Resistance heater, post-storage heater) switchboard heater with fan, anodized aluminum heat exchanger and overcurrent protection, for DIN rail mounting, power 750 watts, 220/230 volts AC, PFHT750, Plastim - made in Turkey.

• Heating power: 750 W

• Operating voltage: 220/230V AC, 50/60Hz

• Maximum current: 3.6 A

• Resistance heater type.

• Axial fan: 80x80x25mm 35m3/h

• Overcurrent protection: electronic thermal overload relay

• Electrical connection: 3-pole NLE terminal

• IEC protection class: Class II

• Protection level: IP20

• Operating temperature: -25 / +70 °C

• Storage temperature: -25 / +70 °C

• Heat sink: aluminum profile, anodized

• Installation: 35 mm DIN rail

• Installation position: Best efficiency in vertical position

• External dimensions: 232x80x110mm

• Weight: 1.45 kg

To ensure automatic temperature maintenance of this heater, you will need either a simple bimetallic thermostat or a more sophisticated temperature controller. Both devices can be purchased from our website:
