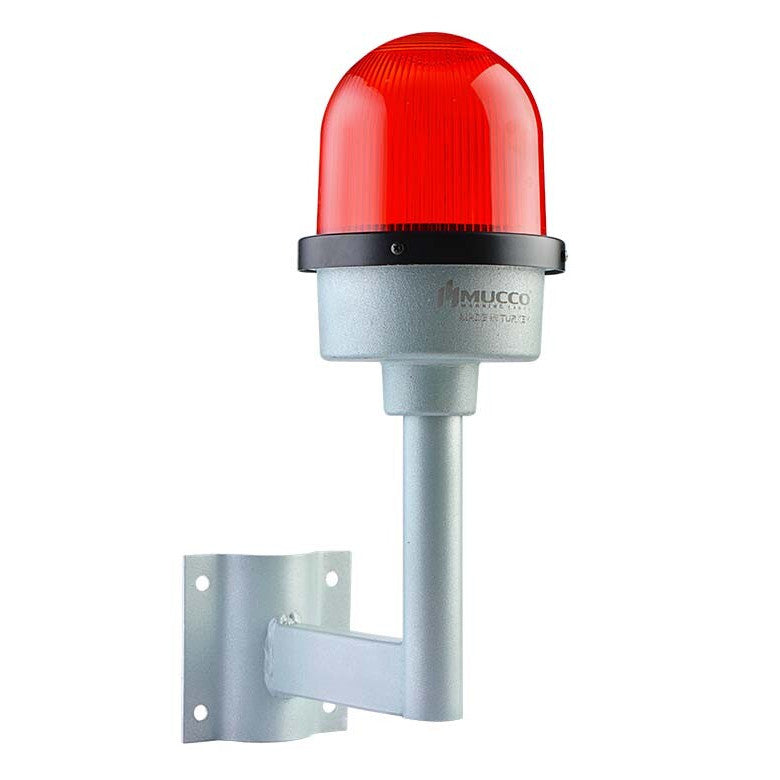

Wolf lighthouse barrier for wall installation

Light intensity

Rated voltage, power consumption

Low intensity - type B - 32cd

24V/DC

265mA ±10% (SNT-U125-D1-24)

85-250V AC/DC

40mA ±10% 50-60 Hz (SNT-U125-D1-22)

Protection level

IP65, water, dust, heat, and UV resistant

Color of the cover

Red, yellow, green, blue, white

Light source

SMD LED

Cover diameter

ø125 mm

Volume

-

Opticalsignaltype

constant light, flashing, strobe

Type of acoustic signal

-

Input response

Input/output: max. 10 ms

Operating temperature

-20 °C to +50 °C (-4 °F to +122 °F)

Expected lifespan

At least 50,000 hours

Material

ABS (housing) + polycarbonate (cover)

Cast metal

Installation method

Wall mounting

Certificates and quality documents

ISO-9001, CE, RoHS2 and EAC
