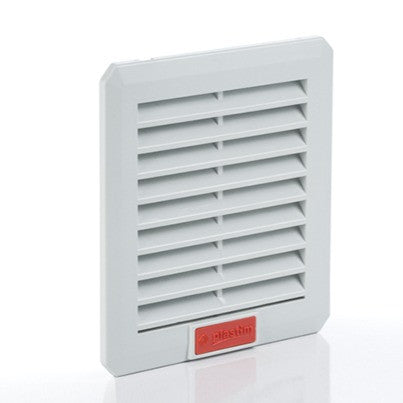

Mesh with filter PFI1000, Plastim
Used to draw outside air into electrical cabinets, ATMs, payment terminals, gaming machines, vending machines, control panels, gas stations or to extract heated air from them for cooling. They are usually installed in the side walls of boxes (plastic and metal) to maintain IP.
- External dimensions: 120x120x20.5 mm.
- Installation size: 92x92 mm
- Operating temperature: -10/+70 °C
- Protection level: IP54
- Plastic material: UL94 V0 ABS flame retardant
- Seal: self-adhesive
- Color: RAL 7035 (RAL 7032 on request)
- Weight: 0.10 kg
- Installation: Quick attachment
Can be used with PTF1000 / PTF1000T products or other fans.
The ventilation grille is equipped with a replaceable filter. This filter cartridge can be easily replaced or cleaned and reused.
