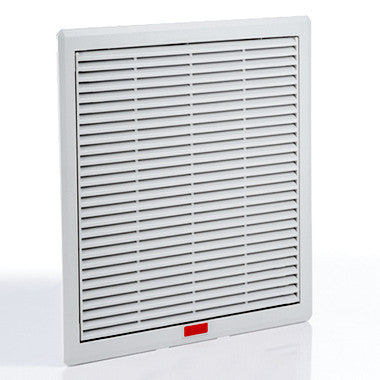

Grille / filter PFI3000 with filter, 325x325, Plastim

Mesh with filter PFI3000, Plastim

Used to draw outside air into electrical panels, ATMs, payment terminals, gaming machines, automation cabinets, control panels, pump stations or to extract their heated air for cooling. They are usually installed in the side walls of (plastic and metal) enclosures to maintain IP.

• External dimensions: 325x325x31 mm.
• Installation dimensions: 291x291 mm
• Operating temperature: -10/+70 °C
• Protection level: IP54
• Material: Plastic: UL94 V0 ABS Non-flammable material.
• Gasket: Polyurethane gasket
• Color: polyurethane, polyurethane, polyurethane, polyurethane, polyurethane: RAL 7035 (RAL 7032 on request)
• Weight: 0.7 kg
• Installation: quick attachment

Can be used with PTF5000 products or other fans.
