On-off rotary switch with key 0-1 | XL101 / XL301, OPAŞ (Turkey)

Product description

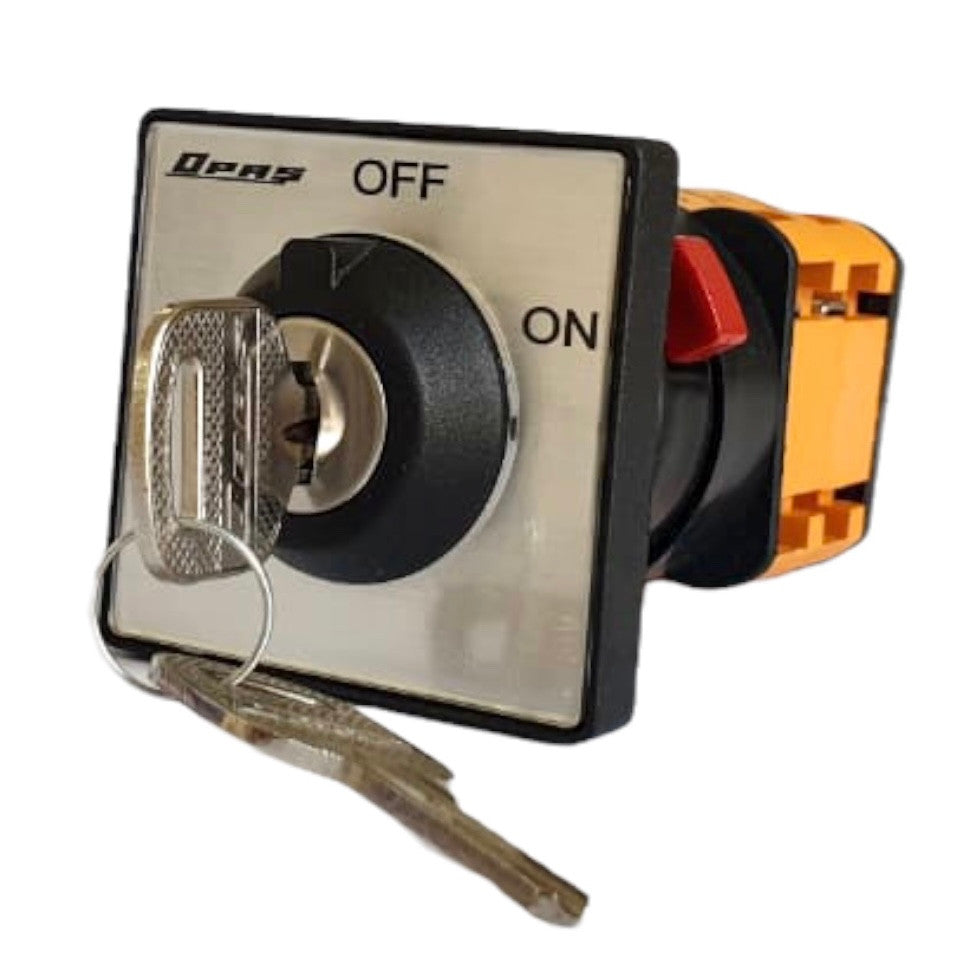

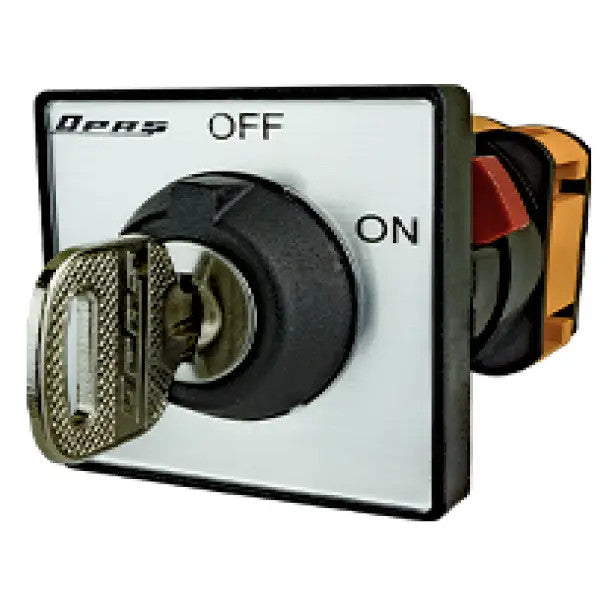

The key-operated ON-OFF cam switch is designed for manual control of low-voltage circuits. It is used for switching electric motors and other low-voltage devices on and off.
OPAŞ series switches are characterized by compact size, high electrical and mechanical durability, and the possibility of safe use with a key.

Main features

• On-off switching with key lock

• 1- or 3-pole options

• current options: 10A, 16A, 20A, 25A

• Compact and durable design

Technical data

• Construction: cam/rotary switch

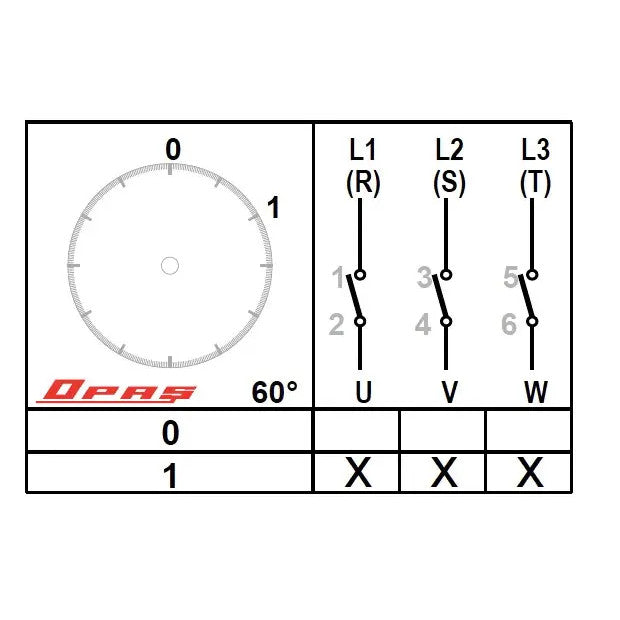

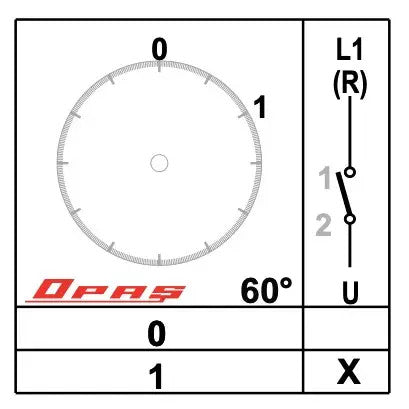

• Wiring diagram: 0 - 1

• Number of poles: 1 or 3

• Type: built-in

• Number of phases: single-phase

• Locking feature: yes, with key

• Protection rating: IP20

• Operating temperature: -30 to +55 °C
