Fan with filter, 125 (175) m3/h, 210x210, 230V 50/60Hz IP54 PTF2000 Plastim

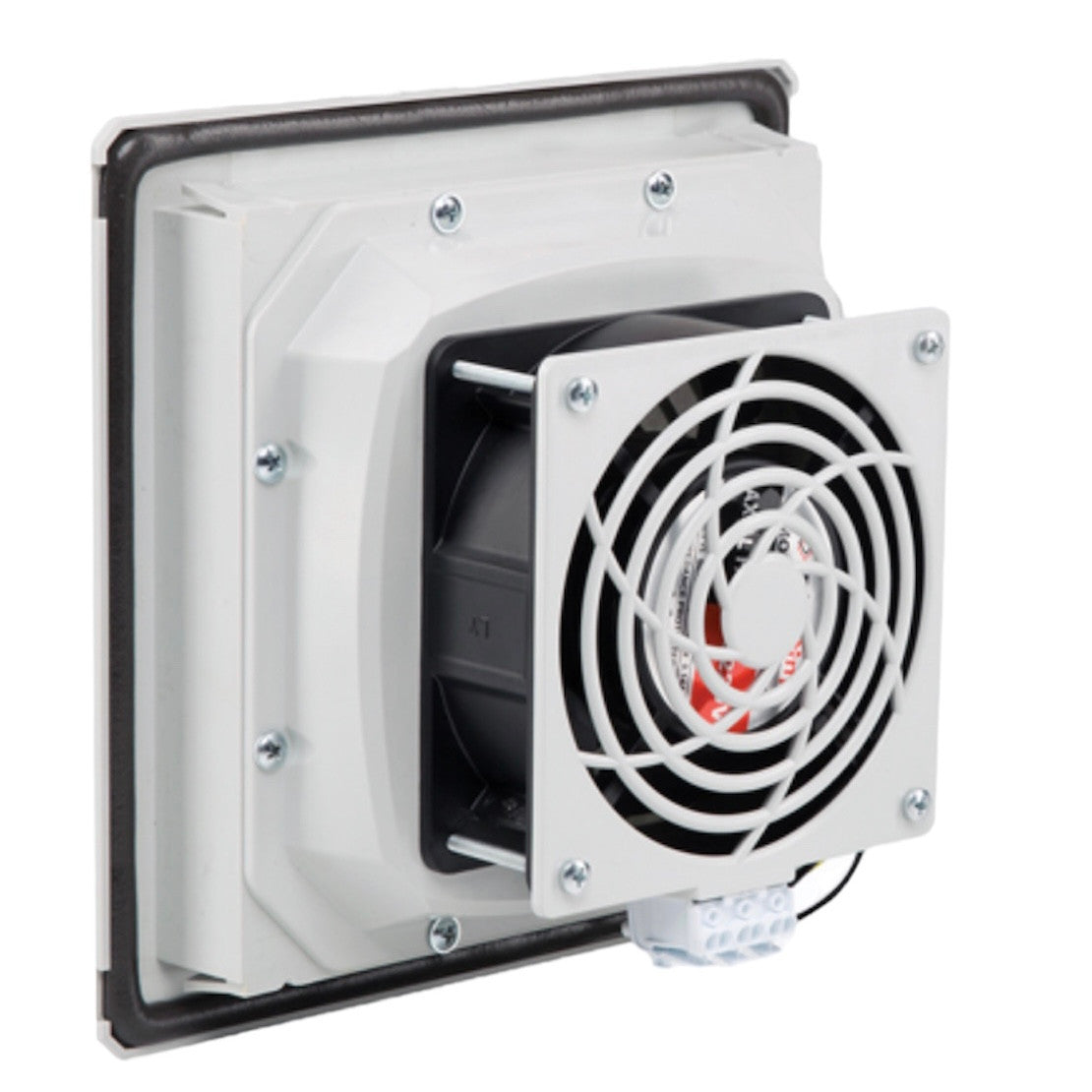

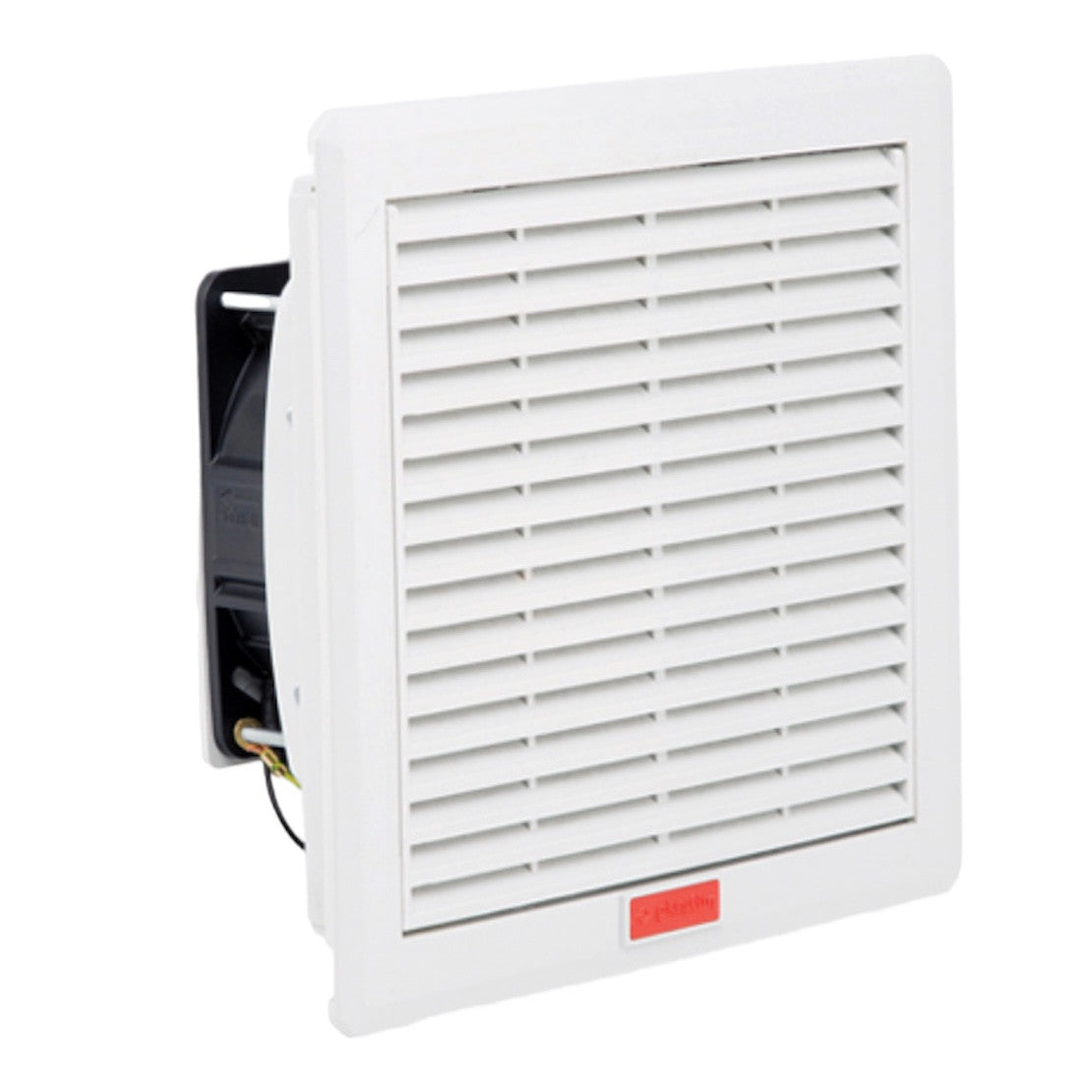

Ventilation grille with fan and filter, size 210x210 mm, for installation in electrical cabinets, automation cabinets, ATMs or gaming terminals. PTF2000, manufactured by Plastim (Türkiye)

Used for fresh air intake in electrical cabinets, ATMs, payment terminals, gaming machines, automation cabinets, control panels, and petrol stations. Typically installed on the side walls of enclosures to maintain IP rating.

• External dimensions: 210x210x98 mm
• Mounting dimensions: 175x175 mm
• Airflow: 125 (175) m3/h
• Noise level: 42 (46) dB(A)
• Bearing: Ball bearing
• Operating voltage: 220-230 VAC, 50/60 Hz
• Current consumption: 0.14 (0.13) A
• Rated power: 26 (23) W
• Electrical connection: 3-pole terminal
• Air direction: Outside to inside (can be reversed)
• Operating temperature: -10/+70 °C
• Protection class: IP54
• Plastic material: UL94 V0 ABS Flame retardant
• Gasket: Polyurethane gasket
• Colour: RAL 7035 (RAL 7032 on request)
• Weight: 1.05 kg
• Installation: Quick fastening

To ensure automatic air exchange and temperature control with this fan, either a simple bimetallic thermostat or a more sophisticated temperature controller is required, both of which can be purchased from our website.
