Fan with filter, 30 (41) m3/h, 120x120, 230V 50/60Hz, IP54 PTF1000 Plastim

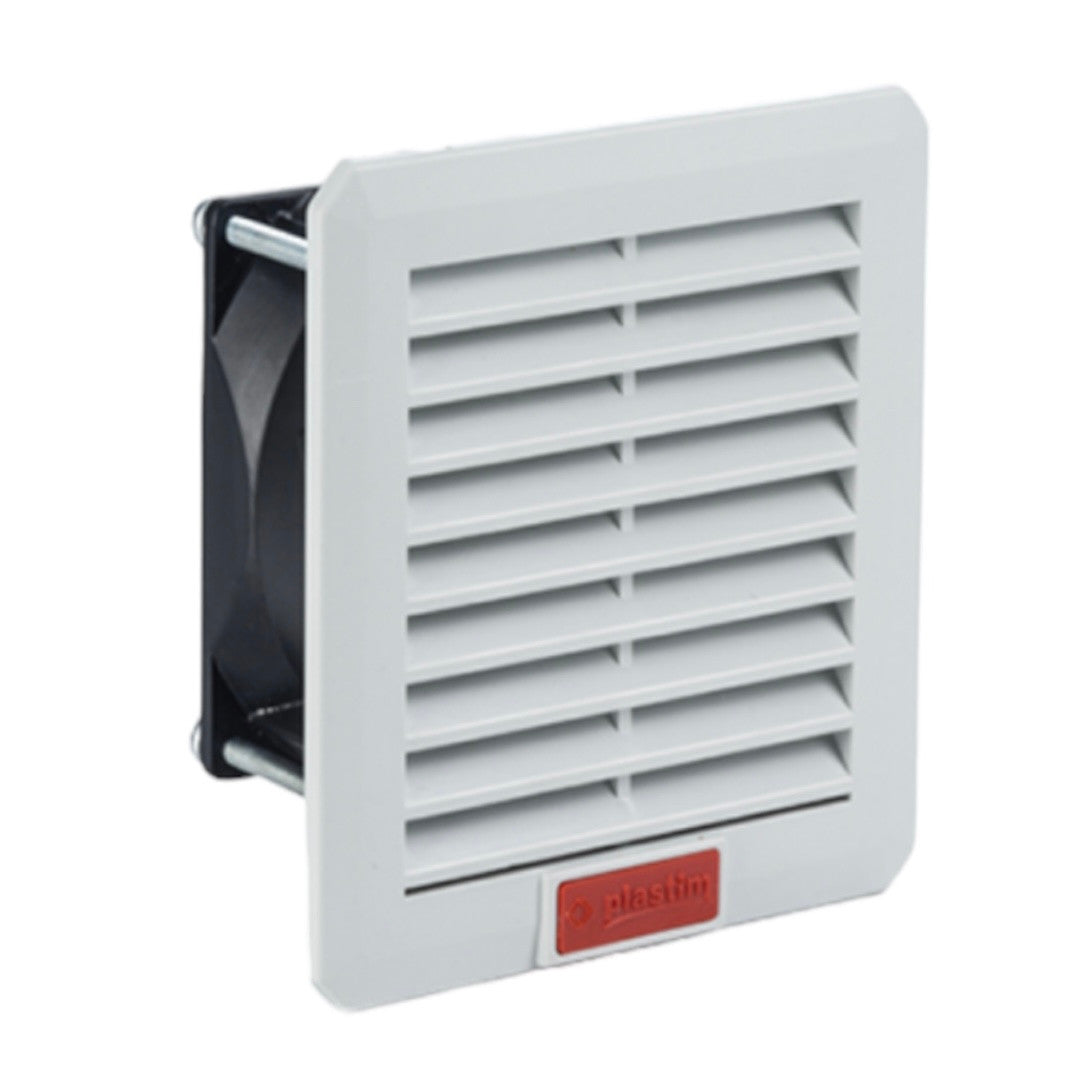

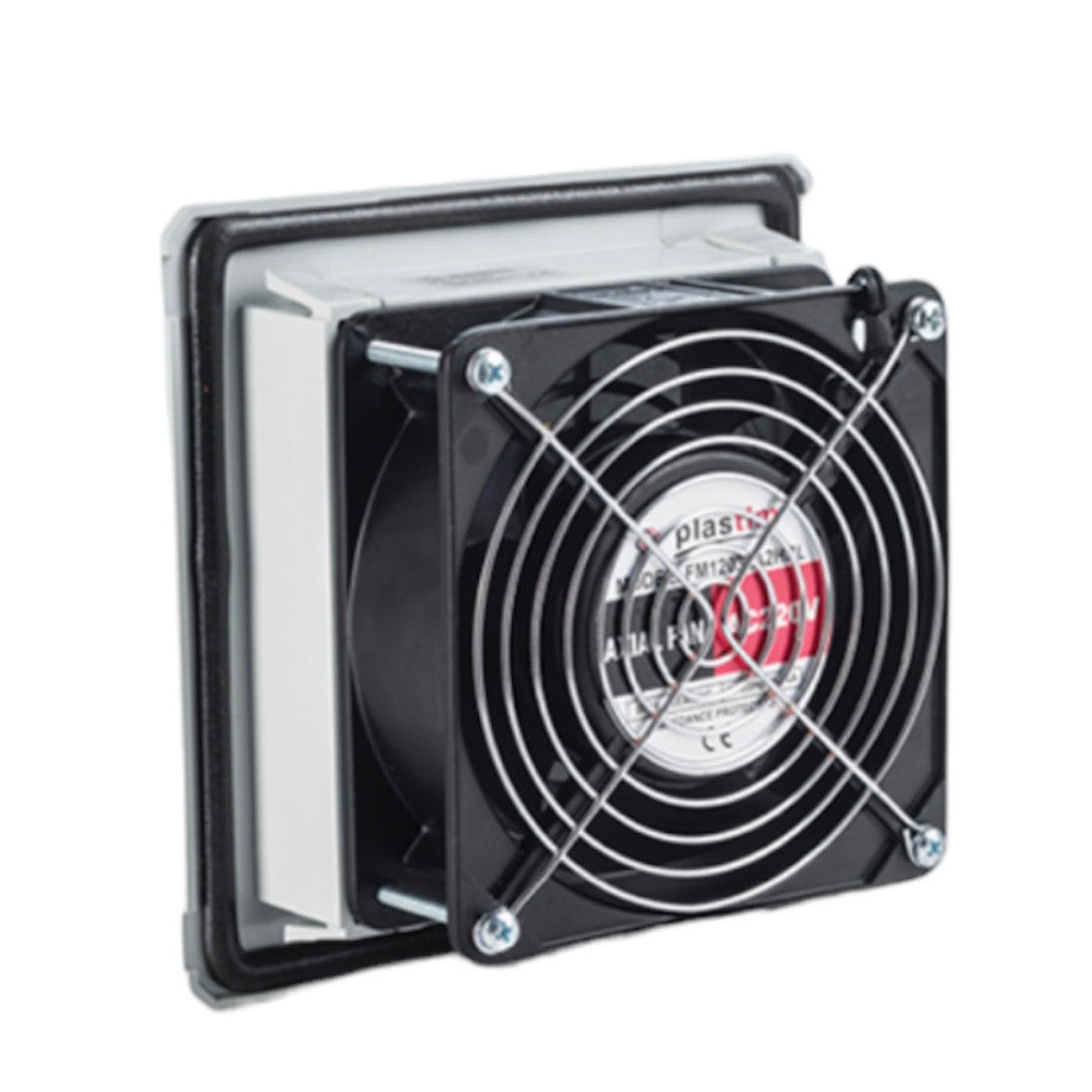

Ventilation grille with fan and filter, dimensions 120x120 mm, for installation in an electrical panel, automation cabinet, ATM or gaming terminal. PTF1000, manufacturer Plastim (Türkiye)

Used for outdoor air intake in electrical cabinets, ATMs, payment terminals, gaming machines, automation cabinets, control panels, gas stations. Usually installed in the side walls of the boxes to maintain IP.

• External dimensions: 120x120x58.5 mm.
• Installation size: 92x92 mm
• Flow rate: 30 (41) m3/h
• Noise level: 28 (31) dB(A)
• Bearing: sleeve bearing
• Operating voltage: 220-230 VAC, 50/60 Hz
• Current consumption: 0.08 (0.07) A
• Rated power: 14 (13) W
• Electrical connection: Cooker cord
• Flow direction: Outside to inside (can be changed)
• Operating temperature: -10/+70 °C
• Protection level: IP54
• Plastic material: UL94 V0 ABS Flame retardant
• Seal: self-adhesive
• Color: RAL 7035 (RAL 7032 on request)
• Weight: 0.4 kg
• Installation: Quick attachment

To ensure automatic air exchange and temperature maintenance with this fan, you will need either a simple bimetallic thermostat or a more complex temperature controller, both devices can be purchased on our website.

The ventilation grille is equipped with a replaceable filter. This filter cartridge can be easily replaced or cleaned and reused.
