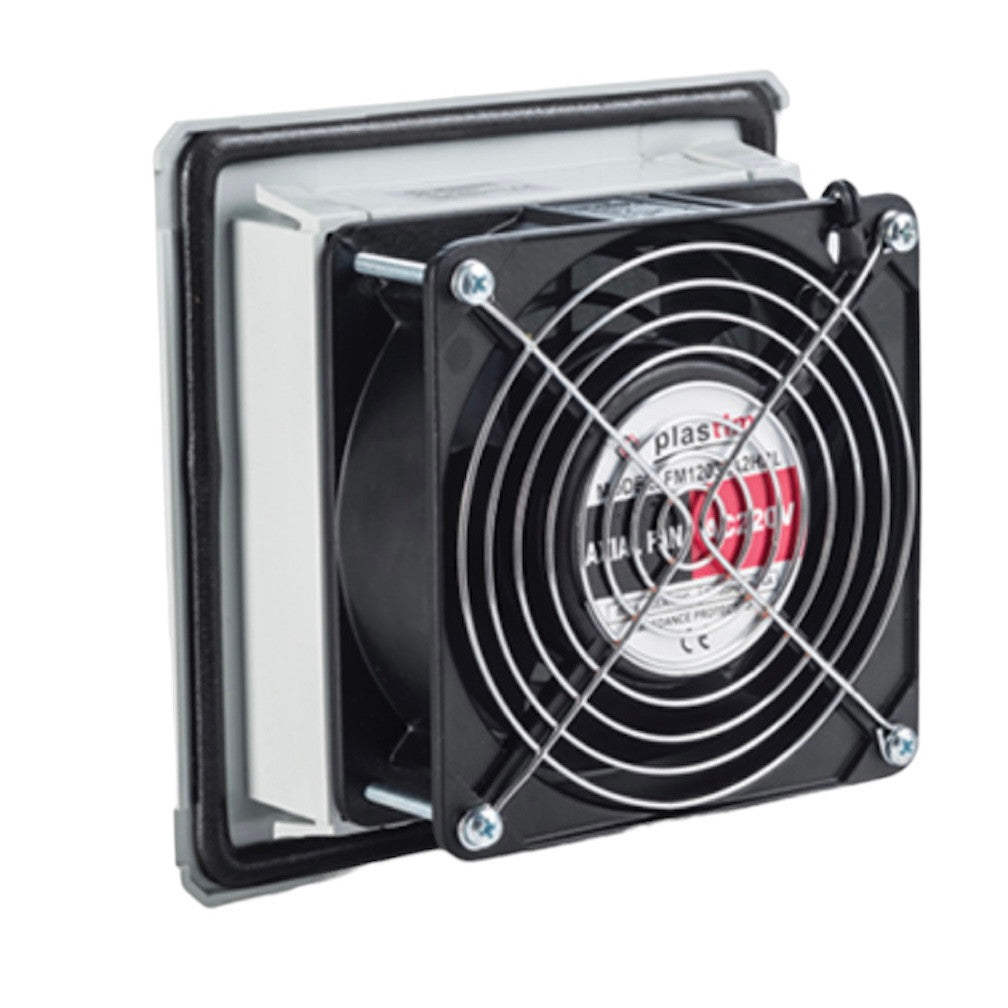

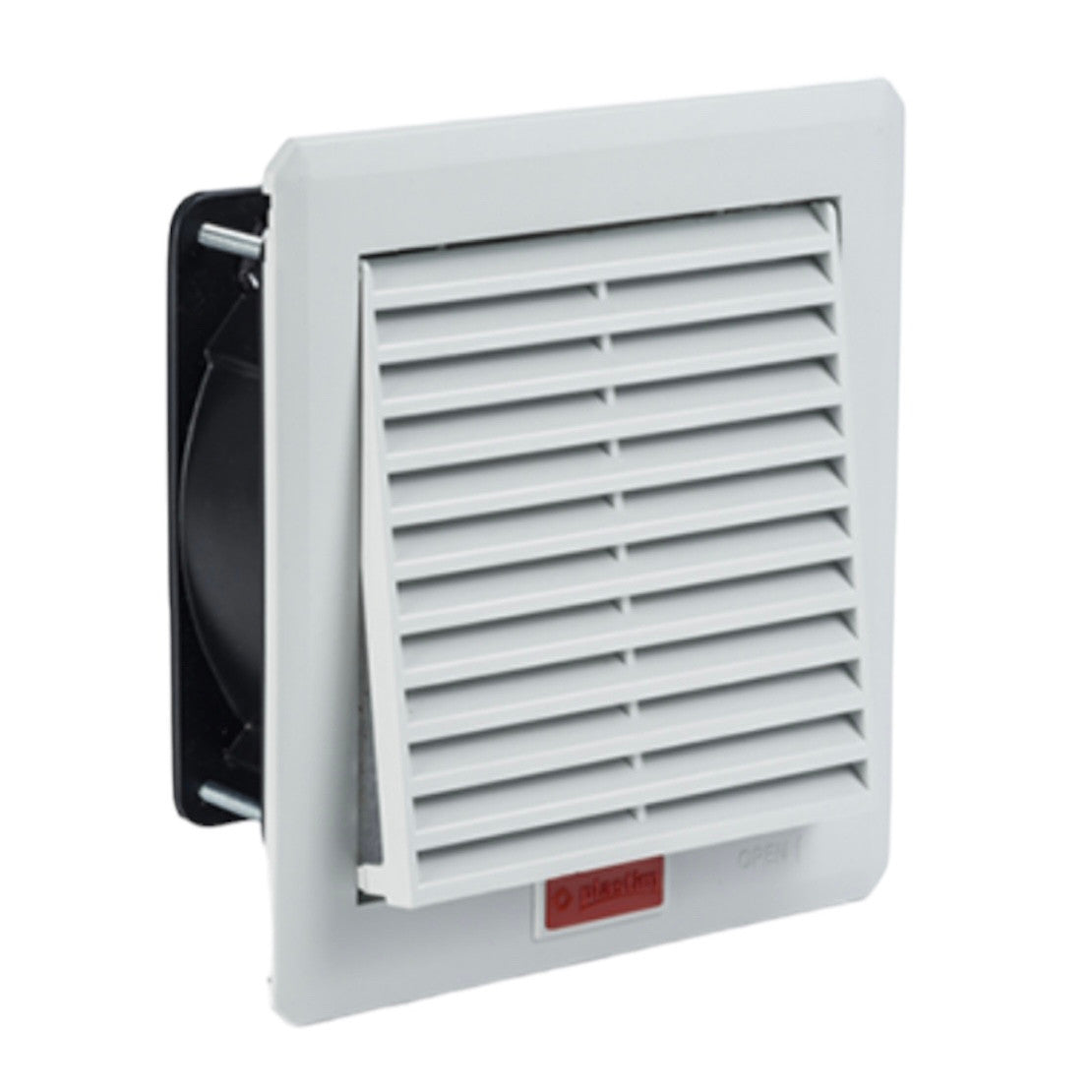

Fan with filter, 100 (140) m3/h, 160x160, 230V 50/60Hz IP54 PTF1500 Plastim

Ventilation grille with fan and filter, size 160x160 mm, for installation in electrical panels, automation cabinets, ATMs or gaming terminals. PTF1500, manufacturer Plastim (Türkiye)

Used for outdoor air intake in electrical cabinets, ATMs, payment terminals, gaming machines, automation cabinets, control panels, gas stations. Usually installed in the side walls of the boxes to maintain IP.

• External dimensions: 160x160x69 mm
• Installation size: 125x125 mm
• Flow rate: 100 (140) m3/h
• Noise level: 42 (46) dB(A)
• Bearing: ball bearing
• Operating voltage: 220-230 VAC, 50/60 Hz
• Current consumption: 0.14 (0.13) A
• Rated power: 26 (23) W
• Electrical connection: Cooker cord
• Flow direction: Outside to inside (can be changed)
• Operating temperature: -10/+70 °C
• Protection level: IP54
• Plastic material: UL94 V0 ABS Flame retardant
• Gasket: Polyurethane gasket
• Color: RAL 7035 (RAL 7032 on request)
• Weight: 0.68 kg
• Installation: Quick attachment

To ensure automatic air exchange and temperature maintenance with this fan, you will need either a simple bimetallic thermostat or a more complex temperature controller, both devices can be purchased on our website.
