Plastim

Fan with filter, 175 (245) m3/h, 210x210, 230V 50/60Hz IP54 PTF3000 Plastim

In stock - 47 items available
SKU: PTF3000
€81,36 with VAT

Online payment by card - after completing your order, you will be redirected to the payment gateway, payment confirmation will be sent to you by email

Arrival - payment according to the payment order, you pay the driver of the transport company

By transfer - a prepayment invoice will be sent to your email address no later than the next business day, with the bank account number that you enter when making the payment.

By invoice - this payment option is used by partners who have a framework agreement with our company.

If you want to use the last 2 methods, call our manager and he will give you instructions on how to receive an invoice with or without VAT.

The electrical appliances we offer meet high quality standards, have a 24-month warranty, and meet all EU requirements.

In the case of advertising, no fees are charged for returning the goods.

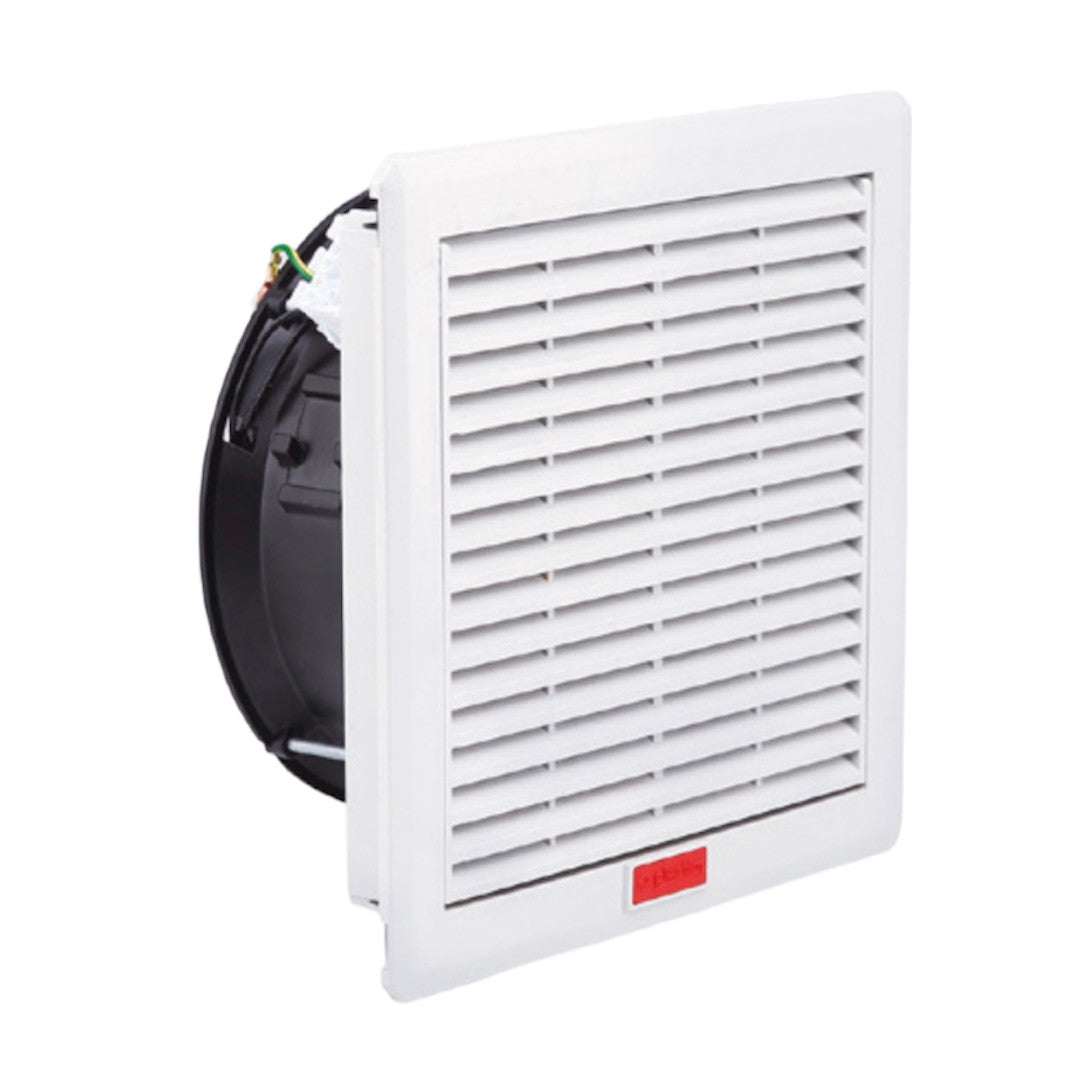

Ventilation grille with fan and filter, size 210x210 mm, for installation in electrical panels, automation cabinets, ATMs or gaming terminals. PTF3000, manufacturer Plastim (Türkiye)

Used for outdoor air intake in electrical cabinets, ATMs, payment terminals, gaming machines, automation cabinets, control panels, gas stations. Usually installed in the side walls of the boxes to maintain IP.

The ventilation grille is equipped with a replaceable filter. This filter cartridge can be easily replaced or cleaned and reused.

  • External dimensions: 210x210x92 mm
  • Installation dimensions: 175x175 mm
  • Volume flow rate: 125 (175) m3/h
  • Noise level: 52 (53) dB(A)
  • Bearing: ball bearing
  • Operating voltage: 220-230 VAC, 50/60 Hz
  • Current consumption: 0.23 (0.22) A
  • Power: 37 (35) W
  • Electrical connection: 3-pole terminal
  • Flow direction: Outside to inside (can be changed)
  • Operating temperature: -10/+70 °C
  • Protection level: IP54
  • Plastic material: UL94 V0 ABS Flame retardant
  • Gasket: Polyurethane gasket
  • Color: RAL 7035 (RAL 7032 on request)
  • Weight: 1.45 kg
  • Installation: Quick attachment

To ensure automatic air exchange and temperature maintenance with this fan, you will need either a simple bimetallic thermostat or a more complex temperature controller, both devices can be purchased on our website.
